SparkFun Qwiic Micro - SAMD21 Development Board

SparkFun Qwiic Micro - SAMD21 Development Board

SKU:SFES-DEV-15423

Regular price Rs. 2,199.00
Regular price Sale price Rs. 2,199.00
Sale Sold out
Tax included.

1 in stock

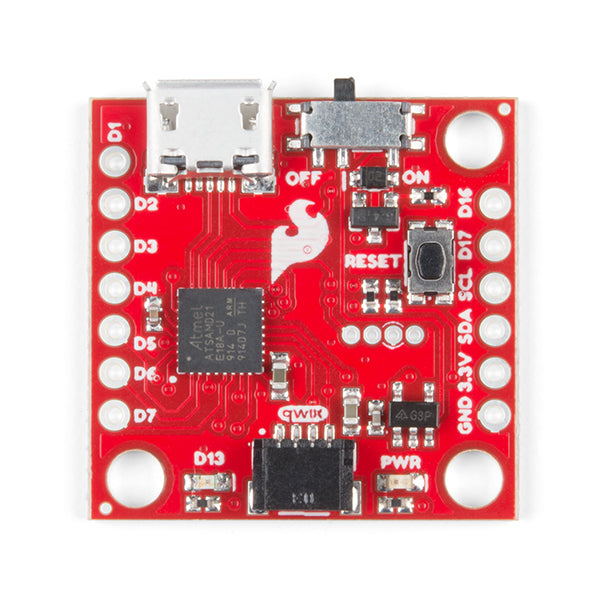

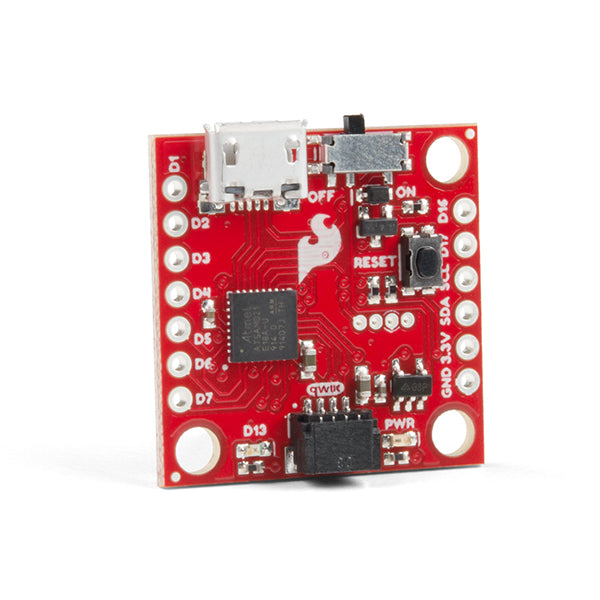

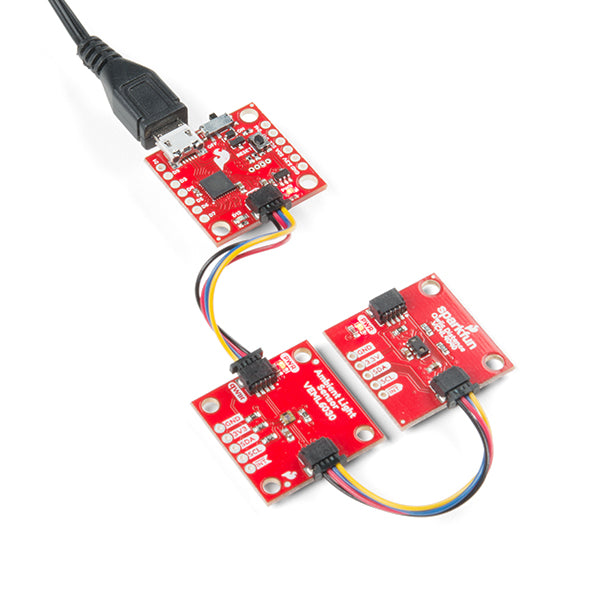

Looking for a super small microcontroller to use with the Qwiic eco-system? The SparkFun Qwiic Micro is molded to fit our standard 1"x1" Qwiic standard size which makes it one of our smallest micro-controller offerings to date. At it's core is the powerful and versatile ATSAMD21E18, which is an ARM Cortex M0+, 32-bit microcontroller, with 256KB of flash memory that can run at up to 48MHz! It has 12 digital pins which include 5 analog pins, SPI, I²C, and an additional UART data bus as well as a Qwiic connector for easy integration into the Qwiic ecosystem and I²C prototyping.

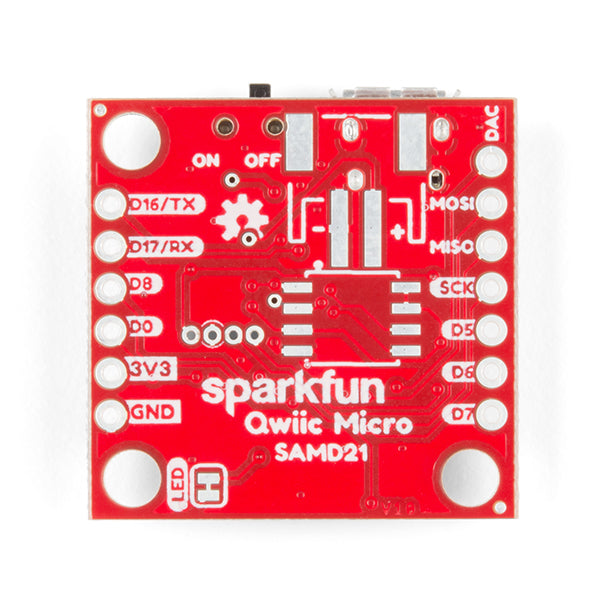

On the underside of the Qwiic Micro, we've left open pads for a LiPo Battery connector that you can add yourself, if you wish you can make the micro-controller portable. We've also provided pads on the underside for a flash memory chip to maximize the board's memory capacity. The SparkFun Qwiic Micro comes programmed with a UF2 Bootloader making it easy to program with easy driver installation! If you need a tiny but mighty micro-controller for you next project check out the SparkFun Qwiic Micro.

Features:

  • Dimensions: 1in x 1in
  • Optional LiPo Charging Port
  • Expandable Flash Memory
  • Qwiic Connector

ATSAMD21E

  • 48 MHz
  • 256KB
  • 32K SRAM
  • UF2 Bootloader
