OAK 4 D Fixed Focus
1/4
  • OAK 4 D Fixed Focus
  • OAK 4 D Fixed Focus
  • OAK 4 D Fixed Focus
  • OAK 4 D Fixed Focus
OAK 4 D Fixed Focus

Luxonis

OAK 4 D Fixed Focus

SKU: Luxonis-OAK-4-D-FF
₹ 97,649.00
Taxes included. Shipping calculated at checkout.
Out of stock
Notify me on WhatsApp
Visa
Mastercard
American Express
Discover
Google Pay
UPI

Description

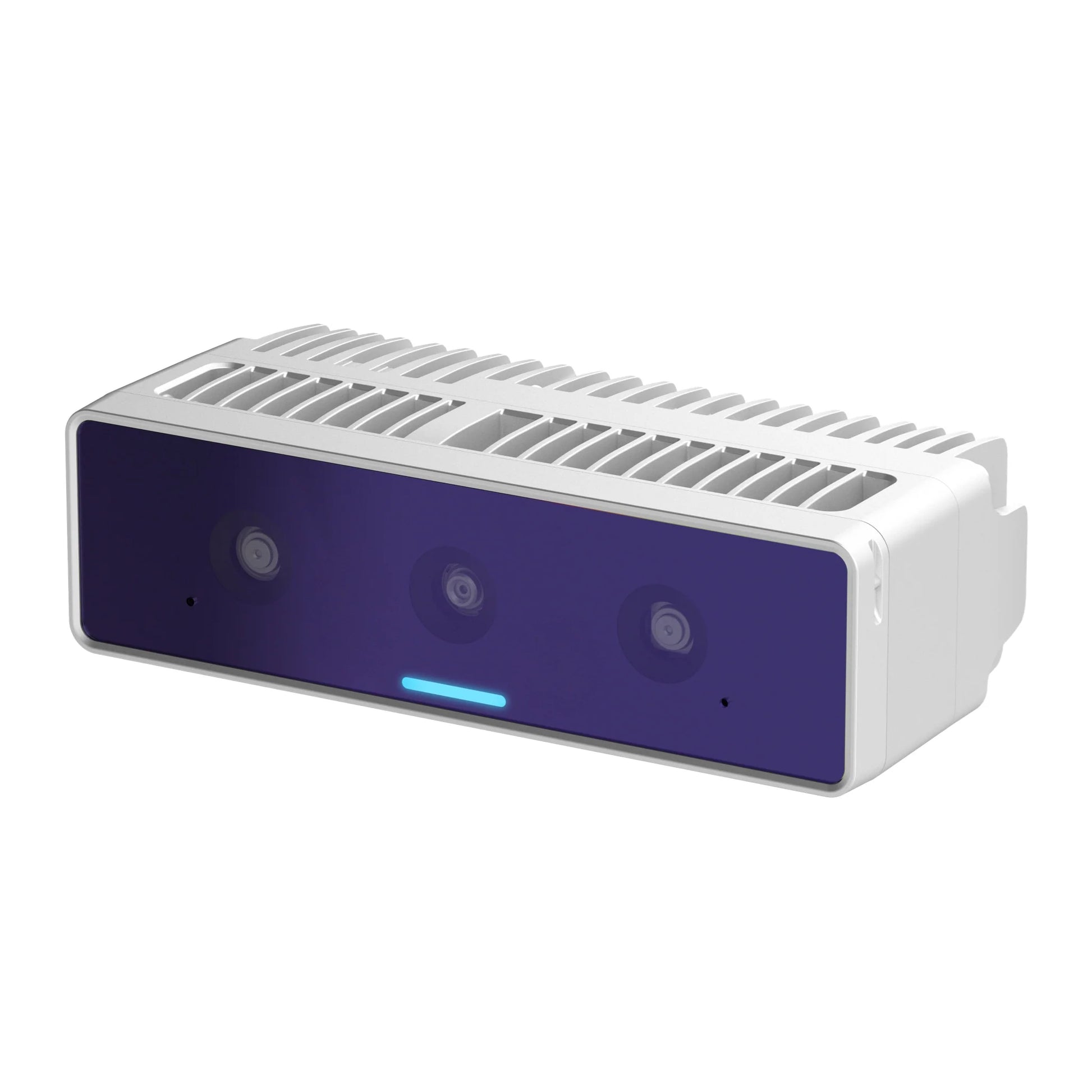

OAK 4 D is the ultimate edge inference, stereo vision camera.  This stand alone device is perfect for robotic vision and automated systems, combining stereo depth camera and high-resolution color camera with on-device Neural Network inferencing and Computer Vision capabilities.

Key features

RVC4 on-board features:
  • 8-core ARM CPU (QC Snapdragon 8-series), 8GB RAM, 128GB of storage
  • Operated by Luxonis OS, based on Linux kernel 5.15
  • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
  • AI: 48 TOPs (INT8) and 12 TOPs (FP16) operations
  • Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
  • Object tracking: 2D and 3D tracking with ObjectTracker node

Specifications:

  • Base line: 75 mm
  • Ideal depth range: 70 cm - 12 m.
  • Power consumption: up to 25W
  • Housing:
    - Industrial grade aluminum with Front Gorilla Glass
    - Water resistance enclosure with IP67 rating

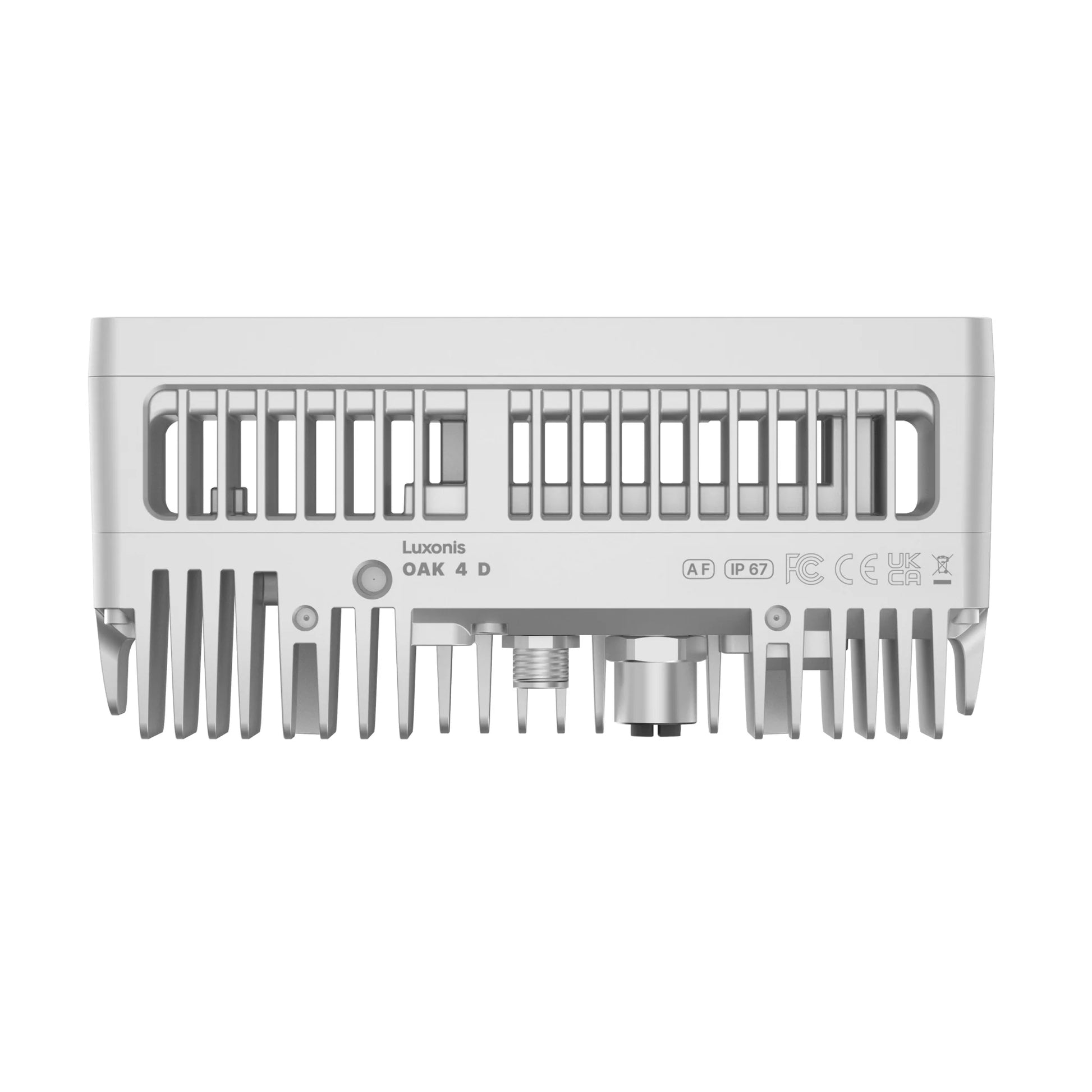

  • Mounts:
    - 1/4" tripod mount
    - 75mm M4 Vesa mount on back and bottom cover

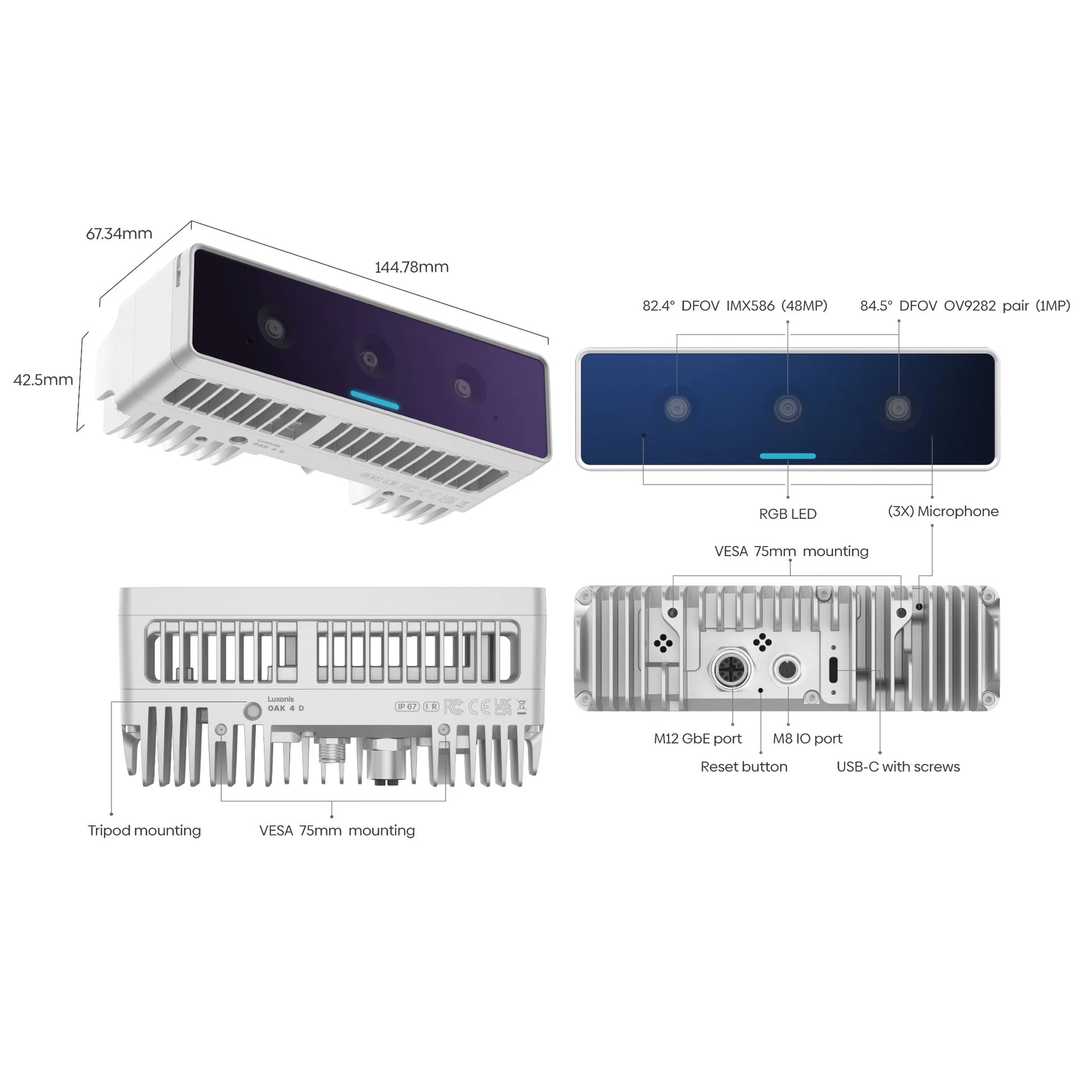

  • Dimensions: 143.5 x 42.5 x 67.3 mm
  • Weight:
    - 674g
Technical Specifications:

OAK 4 D uses 48MP sensor (IMX586) as the main RGB camera.

Sensor specification:

  Auto Focus Fixed Focus Wide Stereo Pair Stereo Pair - Wide
Sensor IMX586 (PY237) IMX586 (PYXXX) IMX586 (PY262) OV9282 (PY238) OV9282 (PY265)
DFOV 82.4˚ 82.4˚ 120.0˚ 84.5° 149.2°
Resolution 48MP ( 8000x6000) 48MP ( 8000x6000) 48MP ( 8000x6000) 1MP (1280x800) 1MP (1280x800)
Focus AF FF FF FF FF
Max Framerate 30 FPS 30 FPS 30 FPS 60 FPS 120 FPS
Spectral range Visible  Visible Visible  Visible Visible
Shutter Type Rolling Rolling Rolling Global Global
Sensor size 1/2" 1/2" 1/2" 1/4" 1/4"
F-number 1.79 ± 5% 1.79 ± 5% 1.79 ± 5% 2.0 ± 5% 2.0 ± 5%
Effective Focal Length 4.74mm 4.74mm 4.74mm 2.35mm 1.69mm
Pixel size 0.8µm 0.8µm 0.8µm 3.0µm 3.0µm

Stereo depth perception

This OAK camera has a baseline of 7.5cm - the distance between the left and the right stereo camera. Minimal and maximal depth perception (MinZ and Max) depends on camera FOV, resolution, and baseline.

  • Ideal depth range: 70cm - 12m
  • MinZ: ~20cm (400P and extended), ~35cm (400P OR 800P, extended), ~70cm (800P)
Depth accuracy
  • below 4m: below 2% absolute depth error
  • 4m - 7m: below 4% absolute depth error
  • 7m - 10m: below 6% absolute depth error

Connectivity

Power-over-Ethernet (PoE)

The base board offers full 802.3af, Class 3 PoE compliance with 2.5GBASE-T speeds (up to 2.5Gbps, depending on the network infrastructure). A PoE switch is recommended to power the device and utilize the full potential of PoE connectivity.

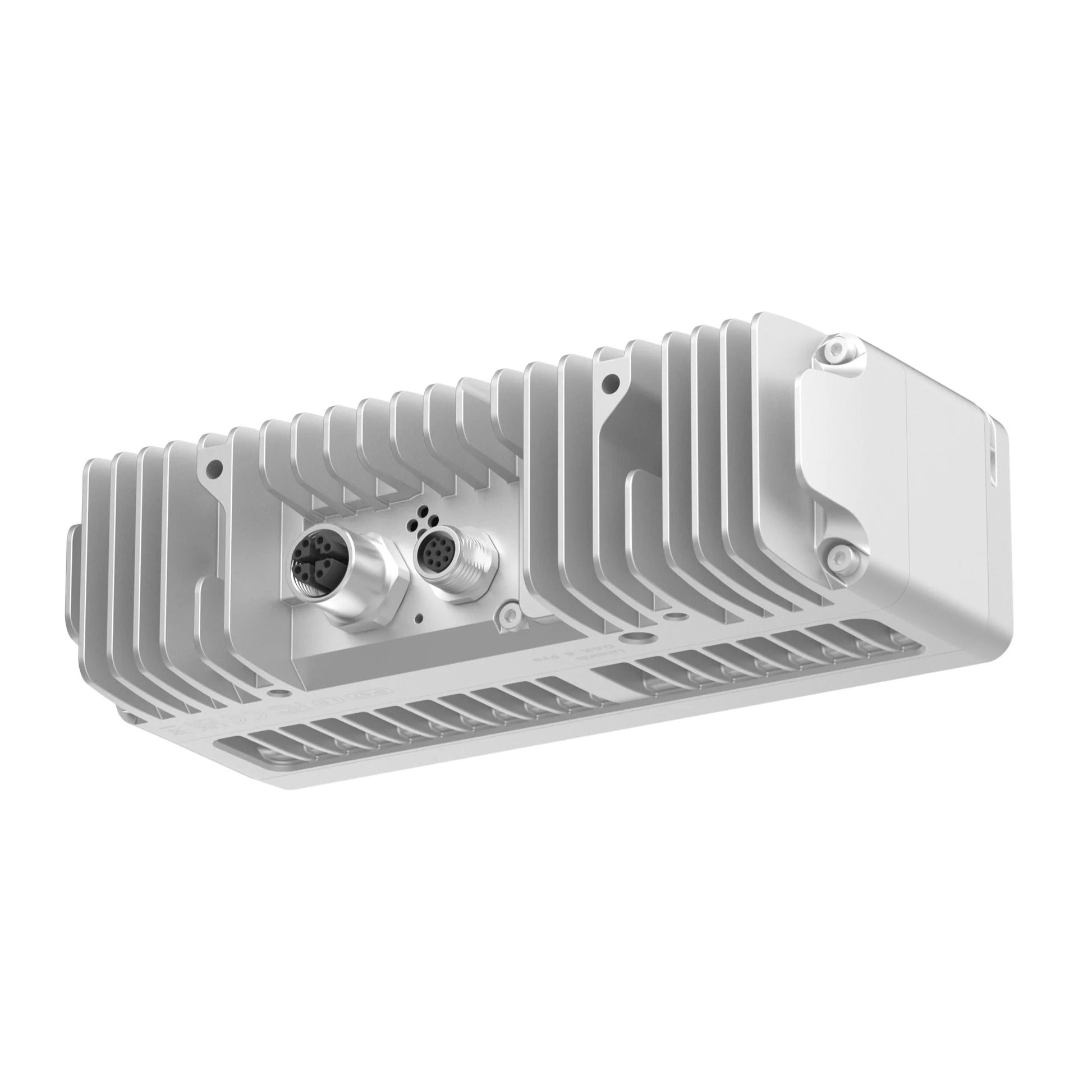

M12 PoE connector is used for power and 2.5GBit data transfer. Additionally, there's an M8 connector for IO connectivity; USB2 (D+, D-), camera IOs (FSIN, STROBE), power, and 2x GPIO (can be used for UART). Cap for M8 is included when connector is not used to ensure water resistance.

Camera also offers USB-C (USB 3.2 Gen2, 10 Gbps) as an option for power and connectivity.

You can also combine both approaches.

Operating characteristics

Water resistance

This camera is shipped with IP67 rated enclosure.

Power consumption
1.5W to 25W
Operating temperature
-20C to 50C
Vibration tolerances
EN 60068-2-6:2008 and ISO 15998:2008 Clause 7.2.3 Table 1

Package Includes:
1 OAK 4 D
1 M12 / RJ45 Connector

Files:
  1. 3D model (downloads zipped STEP file)
