DMC60C: Digital Motor Controller approved for FIRST Robotics

The DMC60C is a powerful compact motor driver designed for any application where 12V brushed DC motors are needed and is an approved motor controller for FIRST Robotics Competitions (FRC). A drop-in replacement for Digilent's first generation PWM-only DMC60, the DMC60C brings all of the features and benefits of the previous generation with support for CAN communication. The DMC60C comes with a free configuration utility and demonstration code to help users get up and running quickly. To preview the software, you can visit the resource center to download.

Features:

• Sealed, ruggedized, and compact aluminum case designed to protect and prevent debris from entering the controller.

• Large gauge input/output cables with flexible silicone insulation that are robustly attached to prevent vibration "shake off".

• Tie-wrap and through-bolt mounting designed so the controller can be mounted directly onto the robot frame.

• Reversible motor controller that can run motors in forward and backwards direction.

• Can run both open loop control or closed loop control.

• Designed to connect directly to a brushed 12V DC Motor, but can be used with other motors that are in the 12-24V range.

• Four multi-color LEDs to indicate speed, direction, status, and error codes for easier debugging.

• Brake/Coast Calibration button enables one-touch setting changes and simple calibration.

• Designed to not require an external fan for cooling.

• Fault protection with integrated thermal sensing to prevent overheating and damage.

• 15.625 kHz output switching frequency ensures smooth and precise motor control.

• Demonstration code comes in C/C++, Java, and LabVIEW code with simplified functions with advanced sub-menus which enables a "set" mode and a "get" mode, and allows customization in the advanced menus.

Electrical Features:

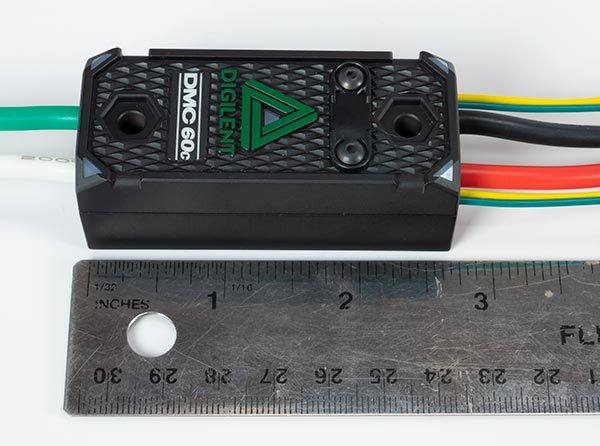

• Dimensions: 2.76" x 1.18" x 1.00"
• Weight: 0.245 lb (including wiring)
• Wire gauge: 12 AWG
• Input voltage: 6-28V
• Continuous current: 60A*
• Peak current (2 sec): 100A
• PWM input pulse (high time): 1-2 ms nominal, 0.6-2.4 ms max
• PWM input rate (period): 2.9-100 ms
• PWM output chop rate (switching frequency): 15.625 kHz
• Minimum throttle (deadband): 4%

*at 25°C when mounted to aluminum frame member

Configuration Utility:

This motor controller comes with a configuration utility that can be accessed through any web browser (Chrome, Safari, IE, Opera etc) and helps the user set up their DMC60C for test and use. This configuration utility was designed with the assistance of FIRST mentors and features benefits such as:

• Ability to work on multiple browsers
• "Restore" setting that allows users to bring the motor controller back to factory defaults
• Live fault codes and status updates that can be paired with Digilent Instrumentation to speed troubleshooting
• Simplified menus and setting configurations to speed up first time user's experience with the controller
