1000:1 Micro Metal Gearmotor HPCB 6V

1000:1 Micro Metal Gearmotor HPCB 6V

SKU:Pololu-3070

Regular price Rs. 3,719.00
Regular price Sale price Rs. 3,719.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 1 left

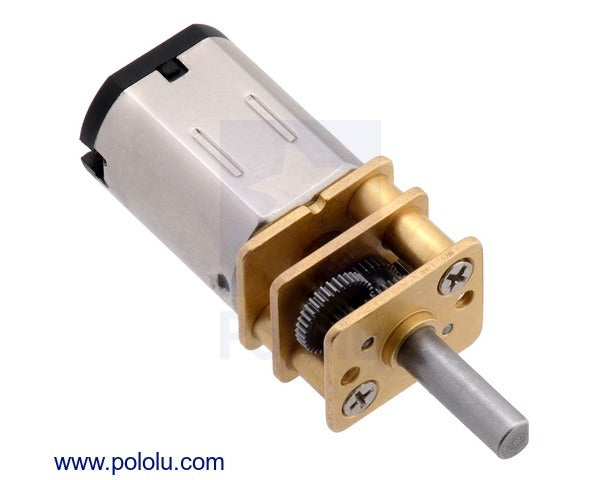

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 986.41:1 metal gearbox, making it a great choice for applications requiring fine control at very low speeds. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. (Note: stall torque and current specifications are theoretical values; stalling the motor will damage the gearbox.)

Key specifications:

voltage no-load performance stall extrapolation
6 V 33 RPM, 100 mA 11 kg⋅cm (150 oz⋅in), 1.5 A

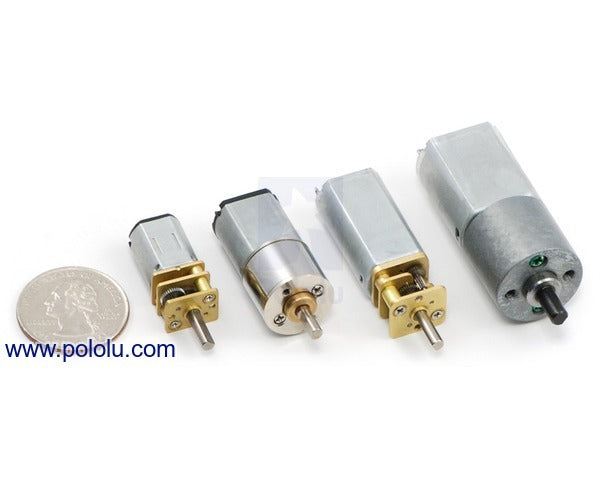

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor. The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

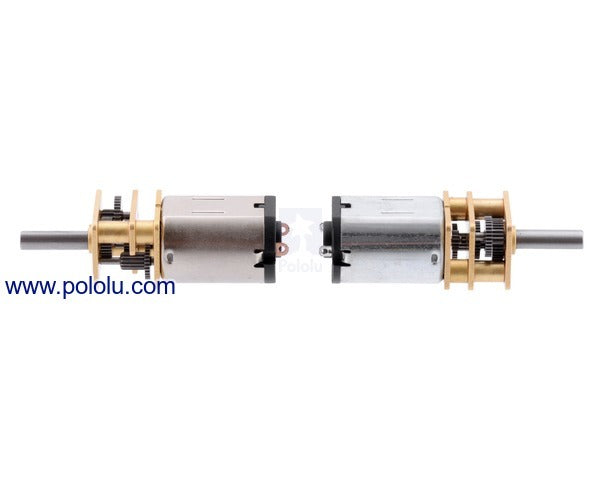

The HPCB versions (shown on the left in the picture below) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).

Details for item #3070

Exact gear ratio: 25×34×35×34×34×34×2712×9×12×14×14×14×9986.41:1">25×34×35×34×34×34×2712×9×12×14×14×14×9986.41:125×34×35×34×34×34×2712×9×12×14×14×14×9≈986.41:1

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 986.41:1 metal gearbox, making it a great choice for applications requiring fine control at very low speeds. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. (Note: stall torque and current specifications are theoretical values; stalling the motor will damage the gearbox.)

Dimensions

Size: 10 × 12 × 29.5 mm1
Shaft diameter: 3 mm2

General specifications

Gear ratio: 986.41:1
No-load speed @ 6V: 33 rpm
No-load current @ 6V: 0.10 A
Stall current @ 6V: 1.5 A3
Stall torque @ 6V: 11 kg·cm3
Extended motor shaft?: N
Long-life carbon brushes?: Y
Motor type: 1.5A stall @ 6V (HPCB 6V - carbon brush)

Performance at maximum efficiency

Max efficiency @ 6V: 25 %
Speed at max efficiency: 26 rpm
Torque at max efficiency: 2.2 kg·cm
Current at max efficiency: 0.39 A
Output power at max efficiency: 0.59 W

Notes:

1. Output shaft adds 9 mm to the 29.5 mm length.

2. D shaft.

3. This is a theoretical value; stalling the gearbox output shaft will damage the gearbox.
