Phidgets

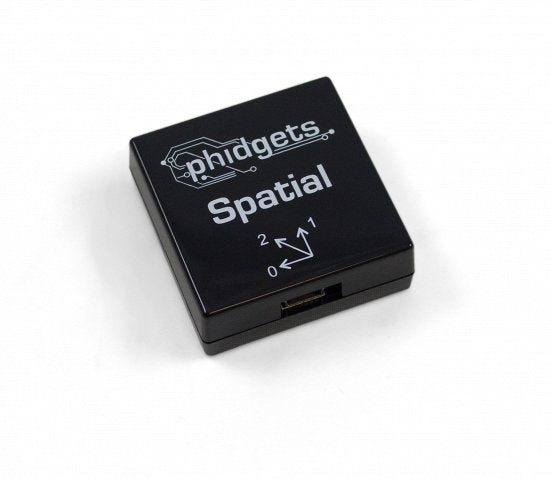

PhidgetSpatial 3/3/3 Basic
SKU: Phidgets-1042_0B
₹ 7,689.00
Taxes included.
Shipping calculated at checkout.
Description

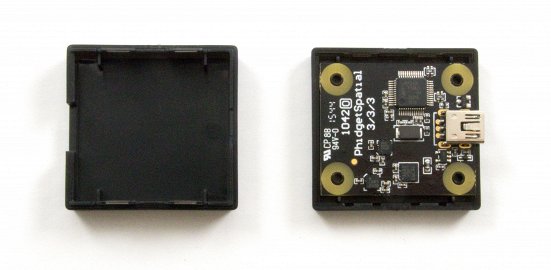

This spatial board has a 3-axis accelerometer, gyroscope and compass and connects to your computer via USB.
The PhidgetSpatial 3/3/3 combines the functionality of a 3-axis compass, a 3-axis gyroscope, and a 3-axis accelerometer all in one convenient package. It is ideal for applications where it's more important to know the general motion of an object rather than the precise amounts.
The 1042 could be used to:
- Track whether an object is moving, and in which direction
- Detect the presence of nearby movement or vibration
- Track the orientation of a stationary object relative to the earth's gravitational pull and the direction relative to magnetic north
Use the following program to correct for magnetic errors in your application:
- Graphical Compass Calibration Program (Windows).
- Command Line Compass Calibration Program (Linux, OS X).
Product Specifications
| Accelerometer | |
|---|---|
| Acceleration Measurement Max | ± 8 g |
| Acceleration Measurement Resolution | 976.7 μg |
| Accelerometer White Noise σ | 2.8 mg |
| Accelerometer Minimum Drift σ | 1.9 mg |
| Accelerometer Optimal Averaging Period | 286 s |
| Gyroscope | |
| Gyroscope Speed Max | ± 2000°/s |
| Gyroscope Resolution | 0.07°/s |
| Gyroscope White Noise σ | 0.59°/s |
| Gryoscope Minimum Drift σ | 0.0019°/s |
| Gyroscope Optimal Averaging Period | 8628 s |
| Magnetometer | |
| Magnetic Field Max | 5.5 G |
| Magnetometer Resolution | 3 mG |
| Magnetometer White Noise σ | 1.2 mG |
| Magnetometer Minimum Drift σ | 87 μG |
| Board | |
| Controlled By | USB (Mini-USB) |
| API Object Name | Accelerometer, Gyroscope, Magnetometer |
| Current Consumption Max | 40 mA |
| Sampling Speed Min | 1 s/sample |
| Sampling Speed Max | 4 ms/sample |
| Sampling Speed Min (Webservice) | 1 s/sample |
| Sampling Speed Max (Webservice) | 12 ms/sample |
| USB Voltage Min | 4.4 V DC |
| USB Voltage Max | 5.3 V DC |
| USB Speed | Full Speed |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
