Phidgets
Phidget SBC3
SKU: Phidgets-1073_0
₹ 15,389.00
Taxes included.
Shipping calculated at checkout.
Description
Single board computer running Debian 7.0 with 128 MiB SDRAM, 1 GiB Flash, integrated 1018 and 6 USB 2.0 ports.

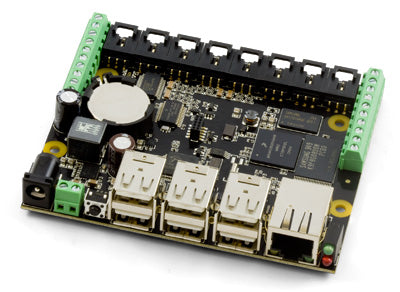

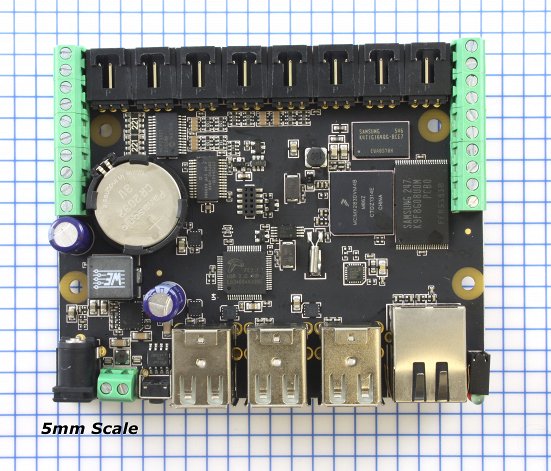

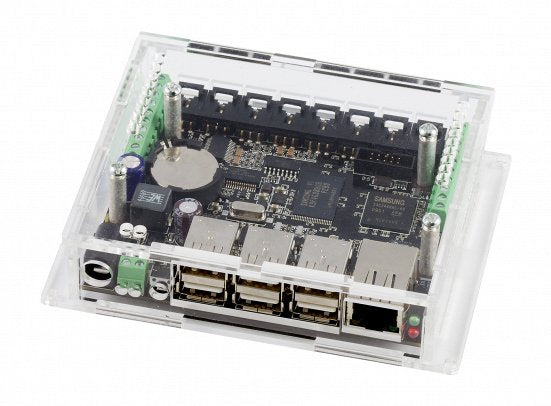

The PhidgetSBC3 is a Single Board Computer with an integrated PhidgetInterfaceKit 8/8/8. At its most basic, it can be thought of as a Phidget that you connect using a network cable instead of USB. The PhidgetSBC3 also provides six high-speed ports that allow you to use normal USB Phidgets over its network connection. This can extend the effective range of a Phidget from USB’s maximum of 15 feet, to anywhere that your network reaches.
The PhidgetSBC3 exposes an easy to use interface for setting up and running custom applications on-board. This allows the PhidgetSBC3 to operate autonomously, without the need for a graphical interface or a remote connection at all times.
For more advanced users, the PhidgetSBC is an embedded computer that runs Debian GNU/Linux. We provide full shell access via a built-in SSH server, access to the full Debian package repository, and all of the standard command line tools expected on a modern Linux system.
An integrated PhidgetInterfaceKit 8/8/8. allows you to connect devices to any of 8 analog inputs, 8 digital inputs and 8 digital outputs. It provides a generic, convenient way to interface your PC and PhidgetSBC with a wide variety of devices and it operates exactly the same way as an external PhidgetInterfaceKit.
Product Specifications
SBC
| CPU | Freescale i.MX28 |
| Core | ARM926EJ-S |
| CPU Speed | 454 MHz |
| NAND Memory Size | 1 GiB |
| SDRAM Size | 128 MiB |
| Boot Time | 30 s |
| Ethernet Cable | 10/100BASE-T |
| Operating System | Debian Linux |
Board
| Supply Voltage Min | 6 V DC |
| Supply Voltage Max | 15 V DC |
| Available External Current | 500 mA |
| Power Jack Hole Diameter | 5.5 mm |
| Power Jack Pin Diameter | 2.1 mm |
| Power Jack Polarity | Center Positive |
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
| Power Consumption Base (w/ Ethernet) | 1.2 W |
Analog Inputs
| Number of Analog Inputs | 8 |
| Analog Input Resolution | 10 bit |
| Input Impedance | 900 kΩ |
| Analog Input Voltage Min | 0 V DC |
| Analog Input Voltage Max | 5 V DC |
| 5V Reference Error Max | 0.5 % |
| Analog Input Update Rate Min | 1 samples/s |
| Analog Input Update Rate Max (4 Channels) | 1000 samples/s |
| Analog Input Update Rate Max (8 Channels) | 500 samples/s |
| Analog Input Update Rate Max (WebService) | 62.5 samples/s |
Digital Inputs
| Number of Digital Inputs | 8 |
| Pull-up Resistance | 15 kΩ |
| Low Voltage Max (True) | 900 mV DC |
| High Voltage Min (False) | 4.2 V DC |
| Low Voltage Trigger Length Min | 4 ms |
| High Voltage Trigger Length Min | 15 ms |
| Digital Input Voltage Max | ± 15 V DC |
| Digital Input Update Rate | 125 samples/s |
Digital Outputs
| Number of Digital Outputs | 8 |
| Series Resistance | 300 Ω |
| Digital Output Current Max | 16 mA |
| Digital Output Voltage Min | 0 V DC |
| Digital Output Voltage Max | 5 V DC |
USB Hub
| Number of USB Ports | 6 |
| Available Current per USB Port | 500 mA |
| USB Speed | High Speed |
