MikroElektronika

Buzz Click

Buzz Click

SKU:MIKROE-945

Regular price Rs. 949.00
Regular price Sale price Rs. 949.00
Sale Sold out
Tax included.

Out of stock

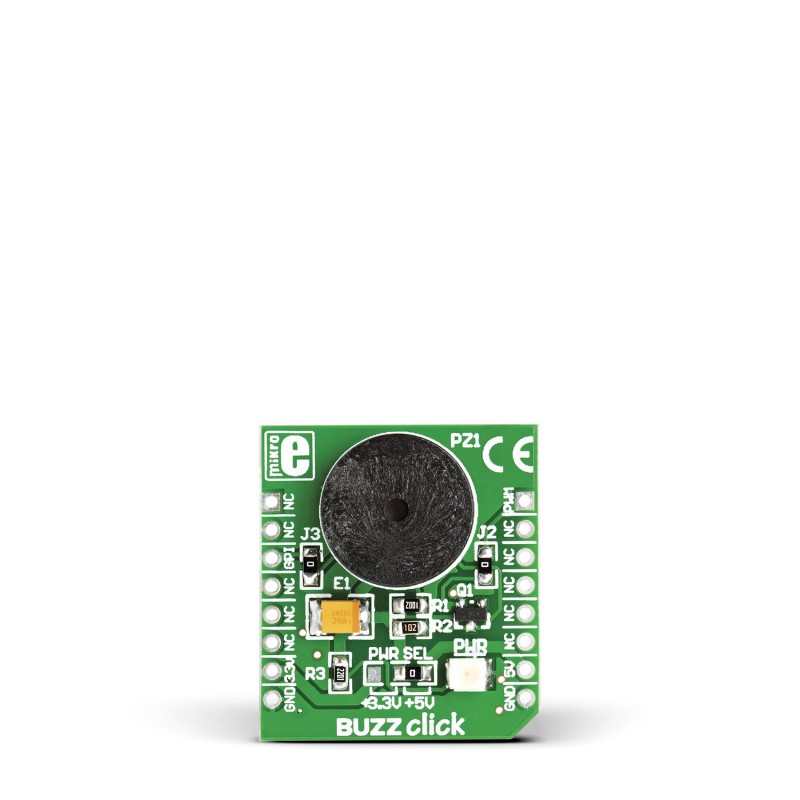

BUZZ Click is an accessory board in mikroBus™ form factor. Board features a piezo speaker capable of emitting audio signals. Buzzer’s resonant frequency is 3.8kHz (where you can expect it’s best performance). On-board buzzer driver is connected to both digital (CS) and to PWM line. You can use either of those two to provide the signal from the microcontroller to the buzzer driver. Board is set to use 5V power supply by default. Solder PWR SEL SMD jumper to 3.3V position if used with 3.3V systems.

Specification

Type Piezo
Applications Board is ideal for adding audio signalization feature to your prototype device.
On-board modules Piezo speaker
Key Features 3.8kHz resonant frequency
Key Benefits Simple integration, small form factor
Interface GPIO,PWM
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
