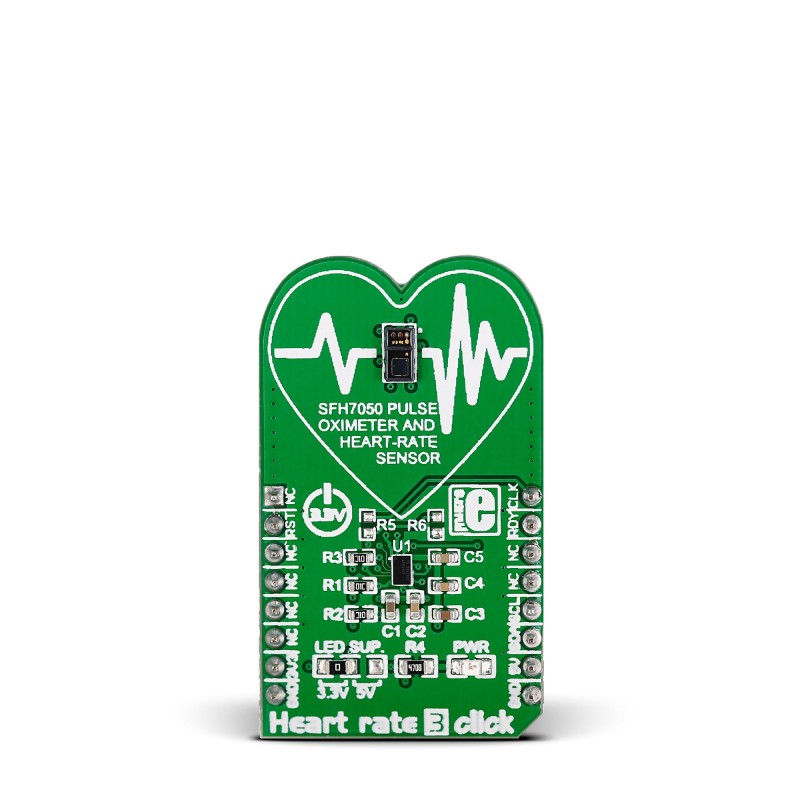

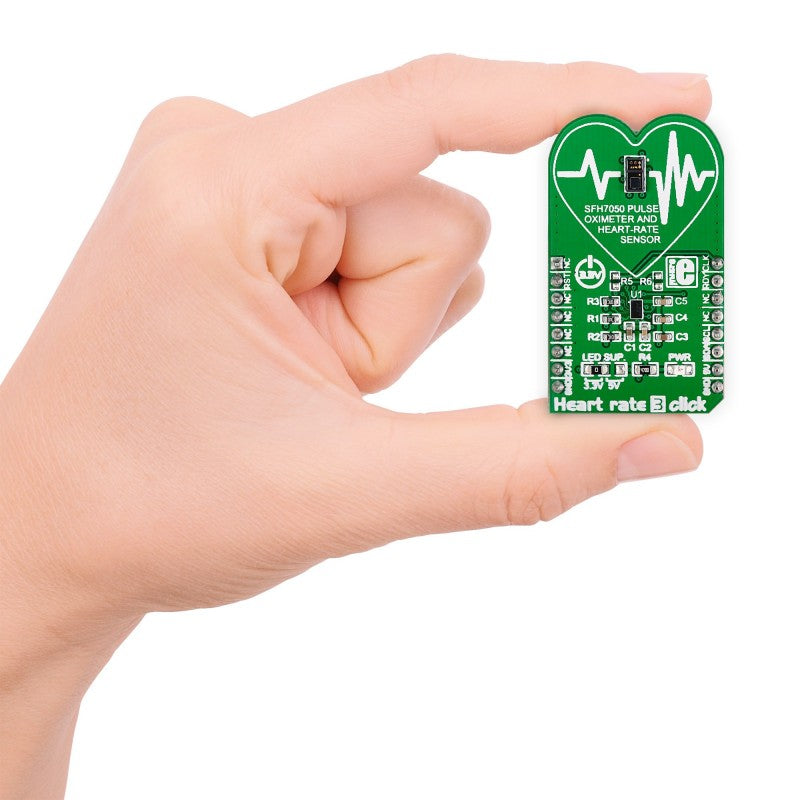

Heart Rate 3 click

The SFH7050 multichip package contains 3 LEDs and one photodiode separated with a light barrier to prevent optical crosstalk. When the three LEDs shine through a subject’s finger, some of the light is absorbed by the pulsating blood.

The analog reading from the SFH7050 is forwarded to the AFE chip that is able to derive pulse readings from the intensity of the reflected light.
AFE4404 is highly-configurable and adaptable for different usage scenarios (different lighting conditions or skin tones) making Heart rate 3 click a robust heart rate monitoring solution.

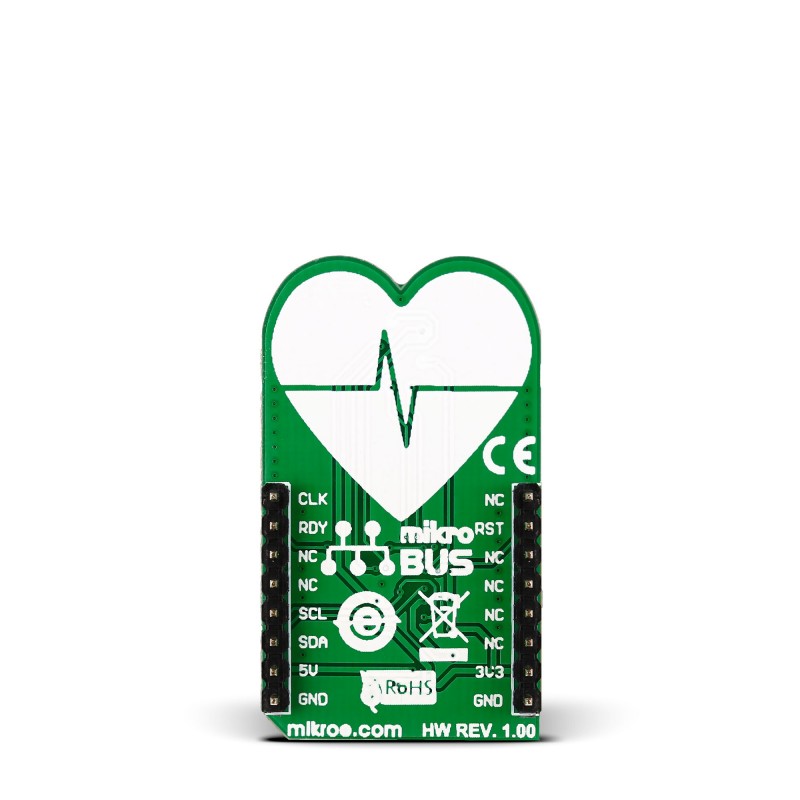

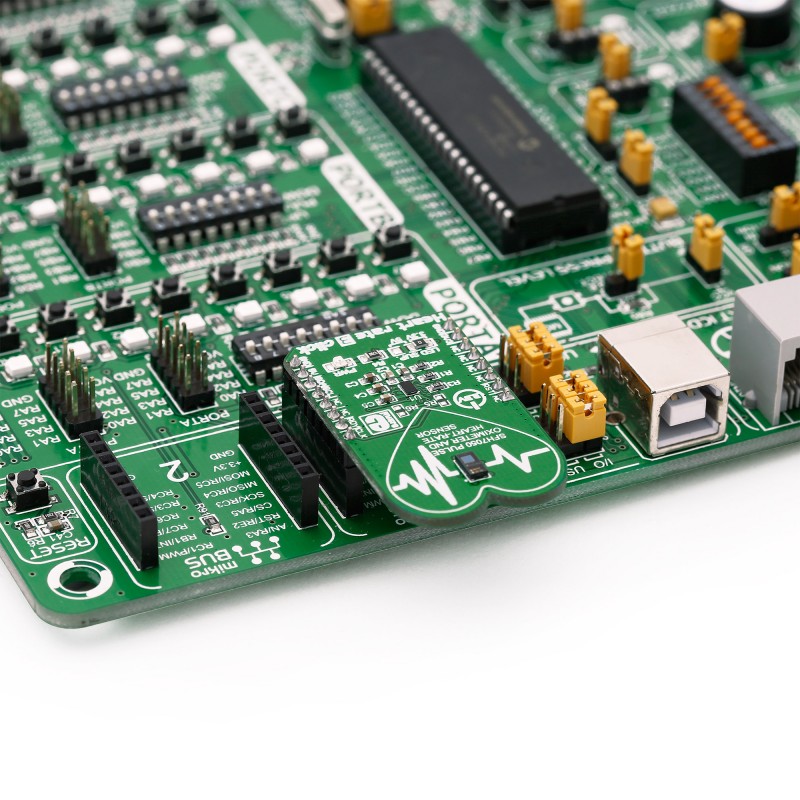

The board communicates with the target MCU through the mikroBUS™ I2C interface, with additional functionality provided by RST, CLK and RDY pins.

Heart rate 3 click works on a 3.3V power supply, but an onboard jumper allows you to set the voltage for driving the SFH7050 LEDs at either 3.3V or 5V.

Specification

Programming

Setting up of Heartrate 3 click and external interrupt to read values at 100hz and using an algorithm to find a heartrate.

 1 #include
2 #include "heartrate_3.h"
3 #include "resources.h"
4
5
6 // HeartRate 3 GPIO
7 sbit RST at GPIOC_ODR.B2;
8
9 void system_setup( void );
10 void setup_interrupt();
11
12 char uart_text[20] = {0};
13 uint64_t int_count = 0; //Used by timer to calibrate sampling freq.
14
15 void main()
16 {
17 //Local Declarations
18 uint16_t rate = 0;
19 char txt[15] = {0};
20
21 system_setup(); // GPIO / HeartRate 3 / UART / I2C Setups
22 Delay_ms(200);
23 initStatHRM(); // Initializes values to 0
24 setup_interrupt(); // Setup interrupt handler
25
26 while(1)
27 {
28 rate = hr3_get_heartrate();
29
30 IntToStr( rate, uart_text );
31 UART1_Write_Text( uart_text );
32 UART1_Write_Text( "rn" );
33 }
34
35 }
36
37 void system_setup( void )
38 {
39 //Local Declarations
40 char text[40] = { 0 };
41 dynamic_modes_t dynamic_modes;
42 uint8_t address = 0x58;
43
44 //Set up dynamic modes for Heart Rate 3 Initialization
45 dynamic_modes.transmit = trans_dis; //Transmitter disabled
46 dynamic_modes.curr_range = led_double; //LED range 0 - 100
47 dynamic_modes.adc_power = adc_on; //ADC on
48 dynamic_modes.clk_mode = osc_mode; //Use internal Oscillator
49 dynamic_modes.tia_power = tia_off; //TIA off
50 dynamic_modes.rest_of_adc = rest_of_adc_off; //Rest of ADC off
51 dynamic_modes.afe_rx_mode = afe_rx_normal; //Normal Receiving on AFE
52 dynamic_modes.afe_mode = afe_normal; //Normal AFE functionality
53
54 //GPIO setup
55 GPIO_Digital_Output( &GPIOC_BASE, _GPIO_PINMASK_2 );
56 GPIO_Digital_Input( &GPIOA_BASE, _GPIO_PINMASK_0 );
57 GPIO_Digital_Input( &GPIOD_BASE, _GPIO_PINMASK_10 );
58
59 //UART Initialize
60 UART1_Init( 9600 );
61 UART1_Write_Text( "UART is Initializedrn" );
62
63 //Toggle Reset pin
64 RST = 0;
65 Delay_us(50);
66 RST = 1;
67
68 //I2C Initialize
69 I2C1_Init_Advanced( 400000, &_GPIO_MODULE_I2C1_PB67 );
70 UART1_Write_Text( "I2C Initializedrn" );
71
72 //Heart Rate 3 Initialize
73 hr3_init( address, &dynamic_modes );
74
75
76 }
77
78 void setup_interrupt()
79 {
80 GPIO_Digital_Output(&GPIOE_BASE, _GPIO_PINMASK_HIGH); // Enable digital output on PORTD
81 GPIOE_ODR = 0xAAAA;
82 GPIO_Digital_Input(&GPIOD_BASE, _GPIO_PINMASK_10);
83
84 RCC_APB2ENR.AFIOEN = 1; // Enable clock for alternate pin functions
85 AFIO_EXTICR3 = 0x0300; // PD10 as External interrupt
86 EXTI_RTSR = 0x00000400; // Set interrupt on Rising edge
87 EXTI_IMR |= 0x00000400; // Set mask
88 NVIC_IntEnable(IVT_INT_EXTI15_10); // Enable External interrupt
89 EnableInterrupts(); // Enables the processor interrupt.
90 }
91
92 void ExtInt() iv IVT_INT_EXTI15_10 ics ICS_AUTO {
93 EXTI_PR.B10 = 1; // clear flag
94 int_count++;
95 statHRMAlgo( hr3_get_led1_amb1_val() ); // Give led1 ambient value to heartrate function. ( 100 times a second )
96
97 }

Code examples that demonstrate the usage of Heart rate 3 click with MikroElektronika hardware, written for mikroC for ARM, AVR, dsPIC, FT90x, PIC and PIC32 are available on Libstock
