HDC1000 click
HDC1000 click
SKU:MIKROE-1797
Couldn't load pickup availability
Share

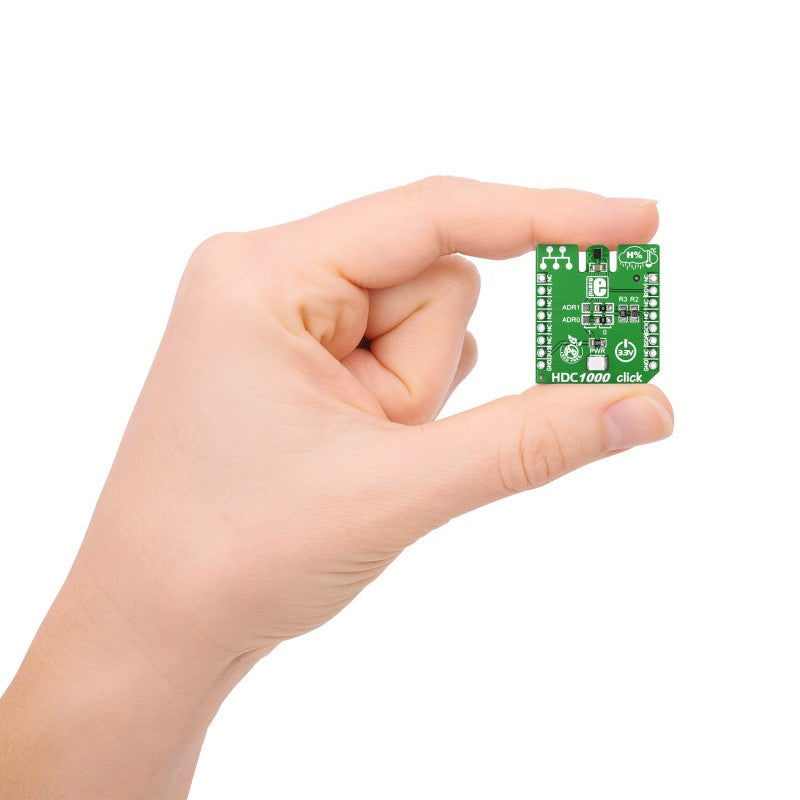

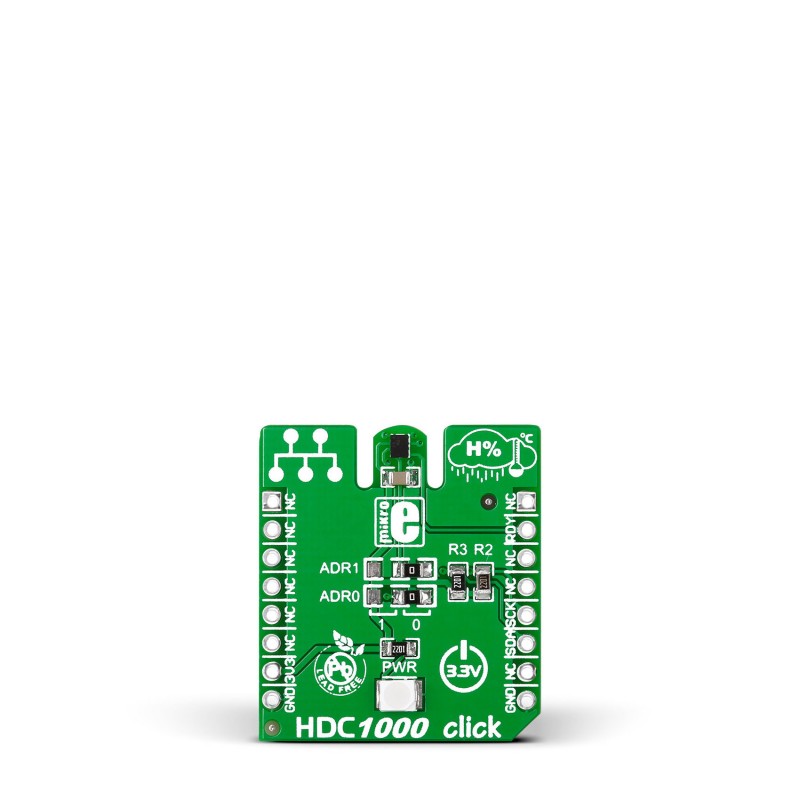

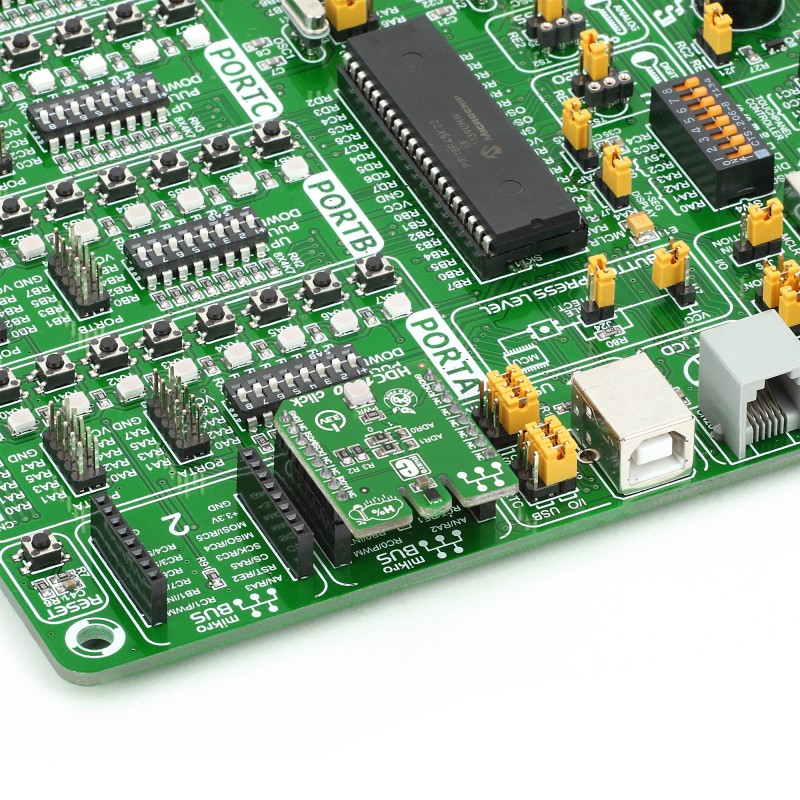

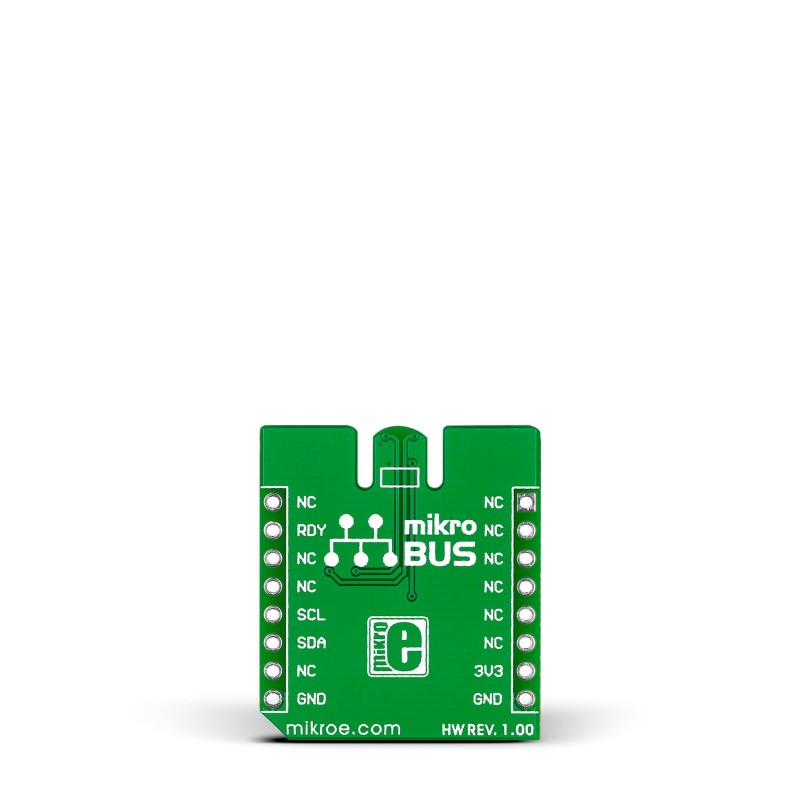

HDC1000 click is a humidity (and temperature) measurement click™ board carrying the HDC1000 sensor from TI. Its chief features are low power consumption, precision, and resistance to dust, dirt, and similar environmental contaminants. The relative humidity (0-100%RH) is measured with an accuracy of ±3%; the temperature is measured within a range from –20°C to 85°C with ±0.2°C accuracy. HDC1000 click communicates with the target board MCU through mikroBUS I2C and INT lines. It operates as a slave device on the I2C interface. A pair of onboard jumpers allow you to specify the slave byte address, with four to choose from. The board is designed to use a 3.3V power supply only.
Specification
Type | Temperature,Humidity |
Applications | HVAC systems, thermostats, weather stations |
On-board modules | HDC1000 sensor |
Key Features | 0-100%RH, ±3% accuracy. -20°C to 85°C with ±0.2°C accuracy. 14-bit resolution measurements |
Key Benefits | Factory calibrated. Sensor resistant to dirt and dust |
Interface | I2C,GPIO |
Input Voltage | 3.3V |
Compatibility | mikroBUS |
Click board size | S (28.6 x 25.4 mm) |
