OLED W click

OLED W click

MIKROE-1649

Rs. 2,519.00
Rs. 2,519.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

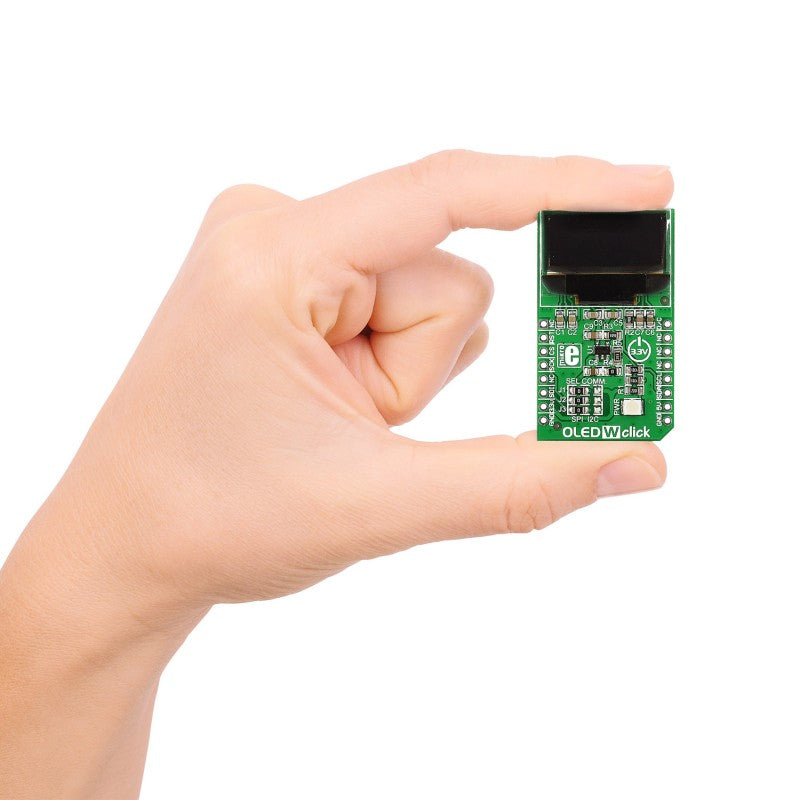

OLED W click carries a 96 x 39px white monochrome passive matrix OLED display. The display is bright, has a wide viewing angle and low power consumption. To drive the display, OLED W click features an SSD1306 controller. It's built-in functionalities include contrast control, normal or inverse image display, vertical and horizontal scrolling functions and more. OLED W click can communicate with the target board MCU either through SPI or I2C mikroBUS™ lines. You switch between output options by resoldering the onboard SEL COMM jumpers (J1, J2 and J3) to the appropriate position. OLED W click uses a 3.3V power supply.

Specification

Type OLED
Applications Ideal for displaying bright and crisp white text or icons
On-board modules SSD1306 controller, 96 x 39px white monochrome passive matrix OLED display
Key Features Monochrome white OLED display, 96 x 39px resolution, 19.3 x 7.8mm active area
Key Benefits Onboard controller enables scrolling, contrast control etc.
Interface SPI,GPIO,I2C
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
