MikroElektronika

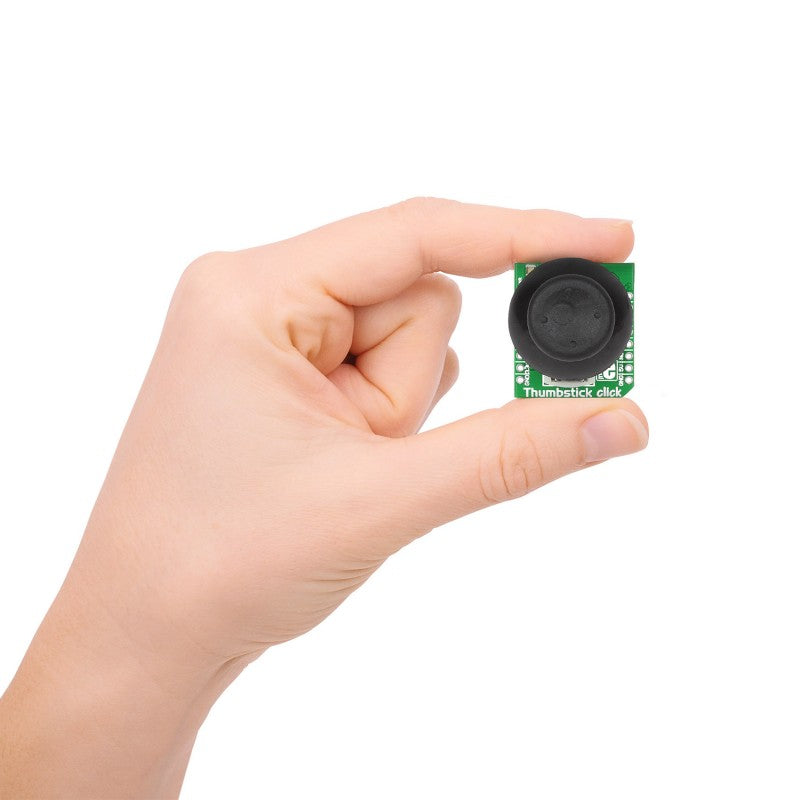

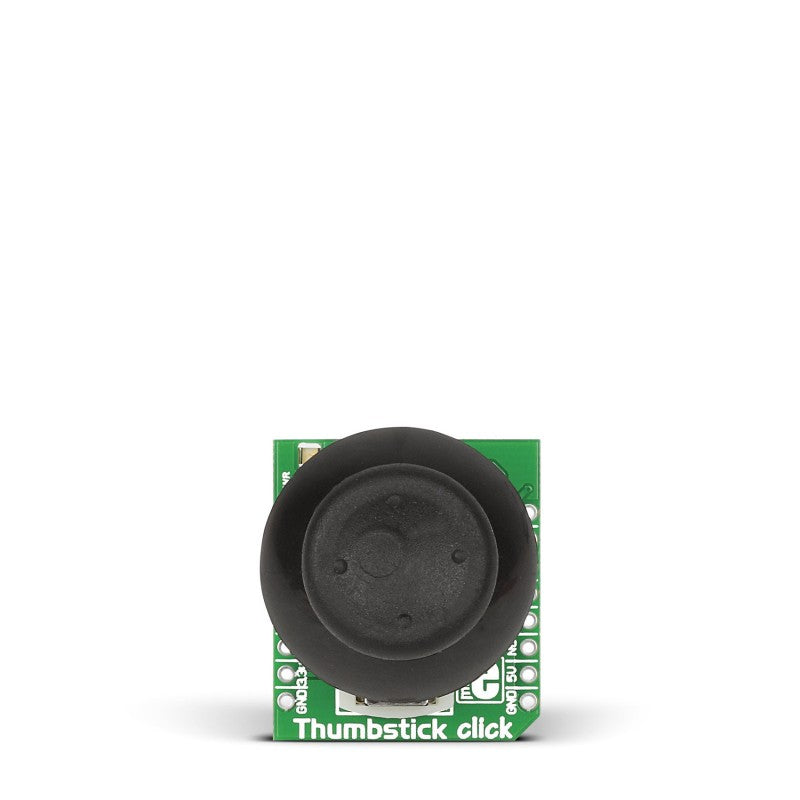

THUMBSTICK click

THUMBSTICK click

SKU:MIKROE-1627

Regular price Rs. 2,099.00
Regular price Sale price Rs. 2,099.00
Sale Sold out
Tax included.

Out of stock

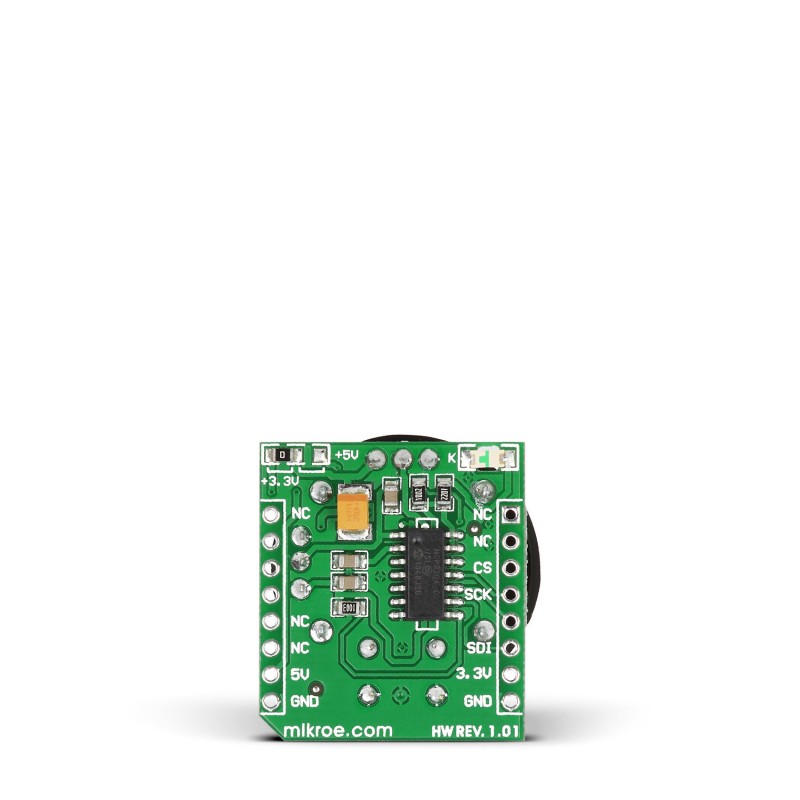

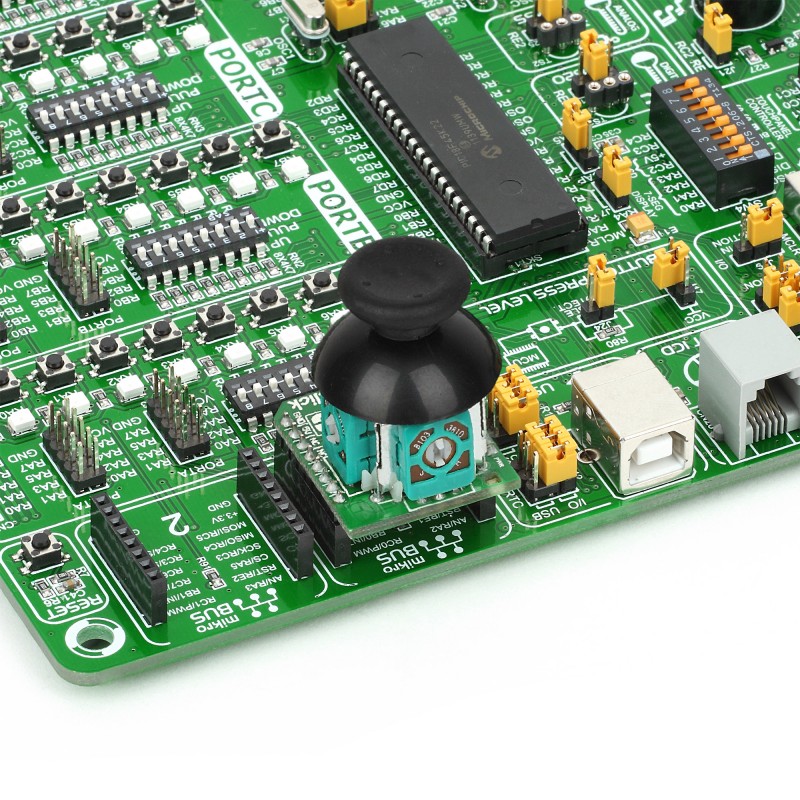

Thumbstick click is a high precision input device. It features a dual axis, spring return, pushbutton enabled joystick (similar to the ones used on joypads on popular gaming consoles), and a MCP3204 12-bit A/D converter. The joystick unit receives directional input in the x and y axes by way of two potentiometers connected to a stick. The mechanical pushbutton sends an interrupt signal to the microcontroller. Thumbstick click communicates with the target board through mikroBUS SPI (CS, SCK, MISO and MOSI) lines. The board is designed to use either a 3.3V or a 5V power supply (regulated by the on-board J1 jumper which is soldered to the 3.3V position by default).

Specification

Type Joystick
Applications Input device for 360 degree directional movement, suitable for fine control of graphical user interfaces, remote controls, and so forth
On-board modules Dual axis, spring return, pushbutton enabled joystick and a MCP3204 12-bit A/D converter
Key Features Dual axis directional input and a pushbutton
Key Benefits 100,000 cycle typical life span
Interface GPIO,SPI
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
