MikroElektronika

Proximity click

Proximity click

SKU:MIKROE-1445

Regular price Rs. 1,789.00
Regular price Sale price Rs. 1,789.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

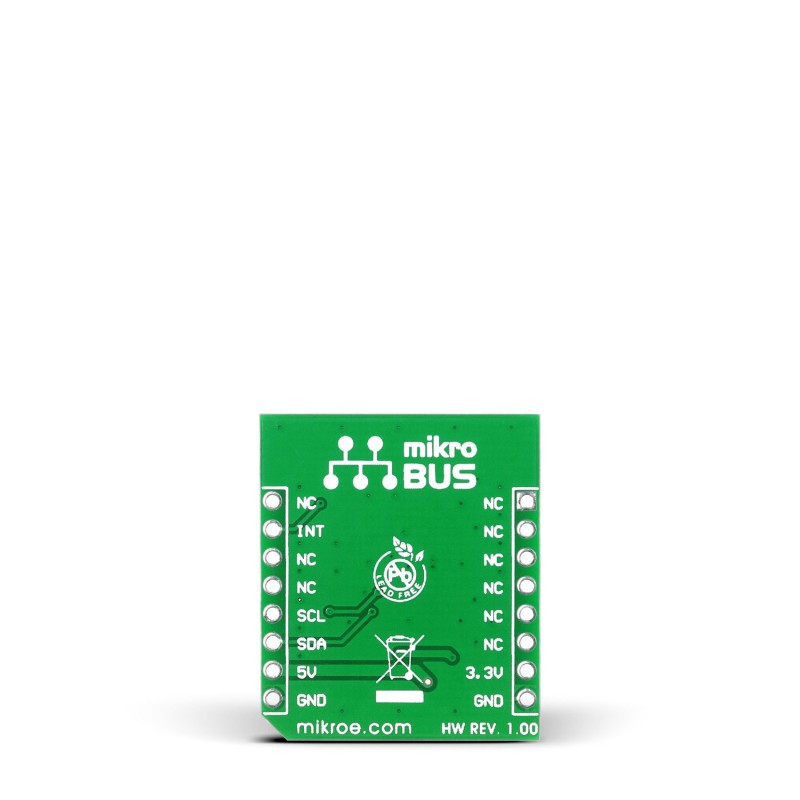

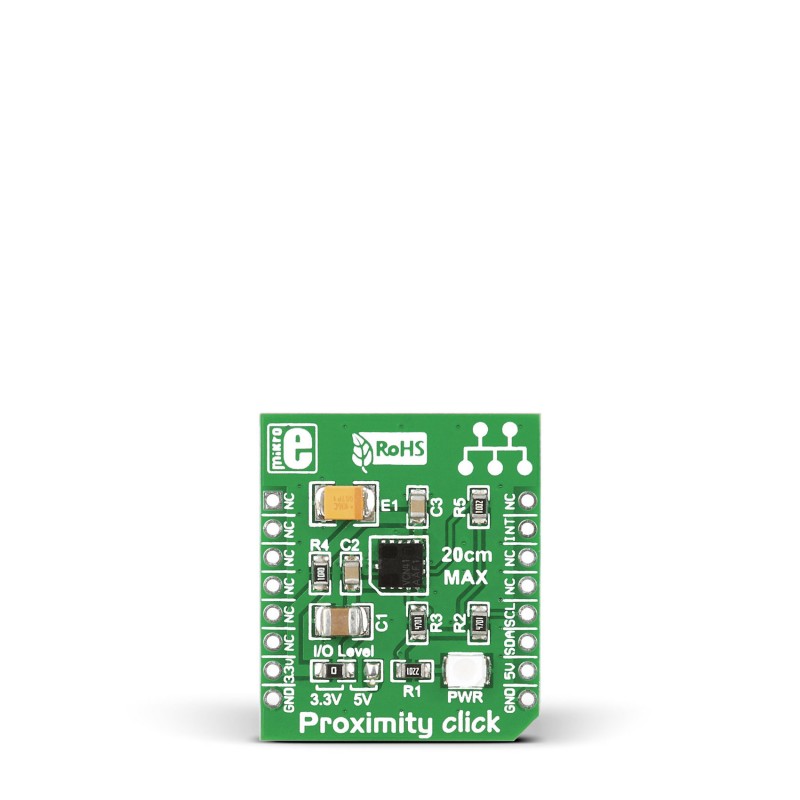

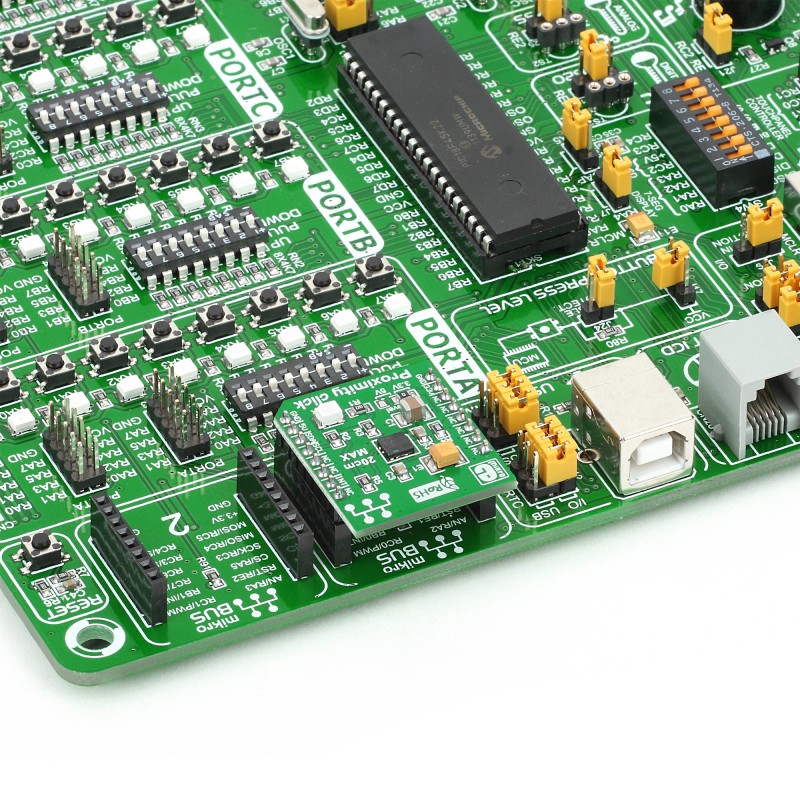

Proximity click features VCNL4010 proximity and ambient light sensor. It combines an infrared emitter and PIN photodiode for proximity measurement with a range of up to 20cm. The VCNL4010 has a 16bit resolution which ensures excellent cross talk immunity. It can also be used as ambient light sensor. Proximity click™ communicates with the target board microcontroller via mikroBUS™ I2C (SDA, SCL) and INT lines. The board is designed to use 3.3V power supply and 3.3V or 5V I/O voltage levels.

Specification

Type Proximity
Applications This board is ideal for consumer and industrial applications, mobile phones, digital camera, tablet PC application and many more
On-board modules VCNL4010 proximity and ambient light sensor
Key Features Integrated IR emitter, ambient light sensor, proximity sensor, and signal conditioning IC
Key Benefits Interrupt function. Low stand by current consumption: 1.5 μA
Interface GPIO,I2C
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
