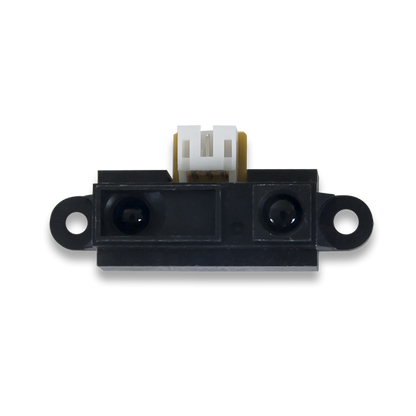

IR Range Sensor

The IR Range Sensor is a great way to add range detection to robotic projects that use Cerebot™ boards. The sensor detects reflective objects 10 to 80 cm away.

The sensor connects to the ADC found on all Cerebot boards. The cable maps the output pins to a 3-pin connector. The yellow wire is for the analog output signal. The pin should be connected to the analog-to-digital converter (ADC) on your microcontroller. The red wire is the Vcc power supply to the sensor and is diode-protected against reverse polarization. The black wire should be connected to the ground of the ADC.

Note:

The Cerebot MX-series boards require a PmodCON3 to access the Futaba-style connectors on the analog ports. The PmodCON3 exposes four ADC analog channels to the connectors. The PmodCON3 can be used on any Pmod header with ADC analog pins.

Features:

• Measuring range: 10-80 cm

• Current consumption: 30mA typical

• Includes 10" 3-wire cable

• Supply voltage: 4.5 - 5.5 V
