Description
ESP32-S3 Smart 86 Box Development Board, Supports 2.4GHz Wi-Fi And Bluetooth BLE 5, Onboard 4inch 480 × 480 Pixel Touch Display, 5-point Touch, RGB Interface
ESP32-S3 Smart 86 Box
Based On ESP32-S3 Module, Supports Secondary Development
Enables Smart Living & Industrial IoT For Scenario-Based Control
Features
This product is a high-performance development board based on ESP32-S3 controller with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, integrates 16MB Flash and 8MB PSRAM. Onboard 4inch 480 × 480 LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, it enables quick development of the HMI and other ESP32-S3 applications, suitable for smart control panels, home gateways, interactive smart panels, industrial control systems, and smart lighting control scenarios.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
- Onboard 4inch LCD display, 480 × 480 resolution, 65K color
- Supports capacitive touch controlled via I2C interface, 5-point touch
- Supports accurate control such as flexible clock and independent module power control to realize low power consumption in different scenarios

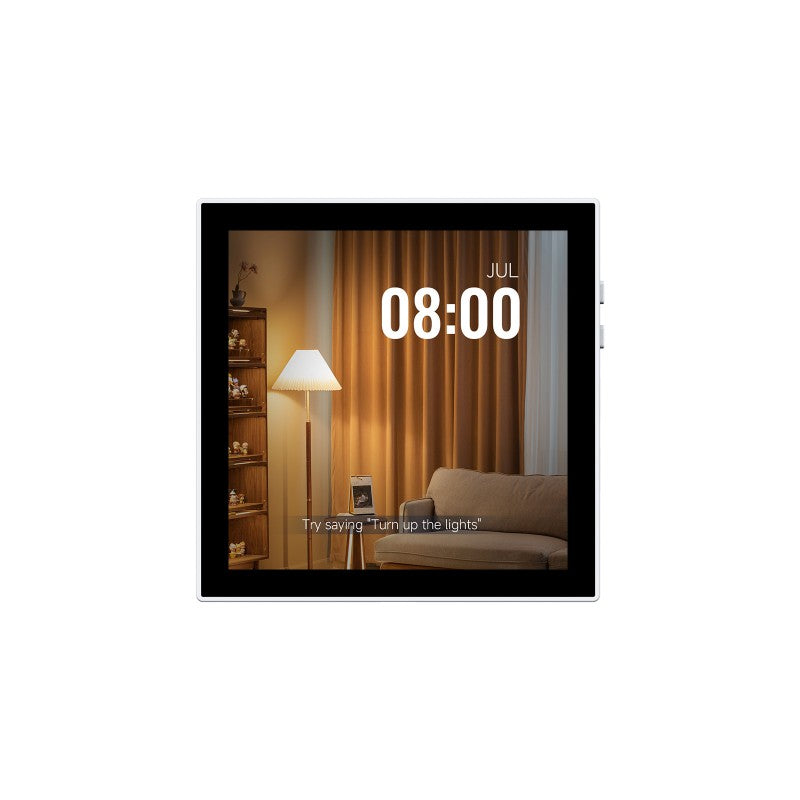

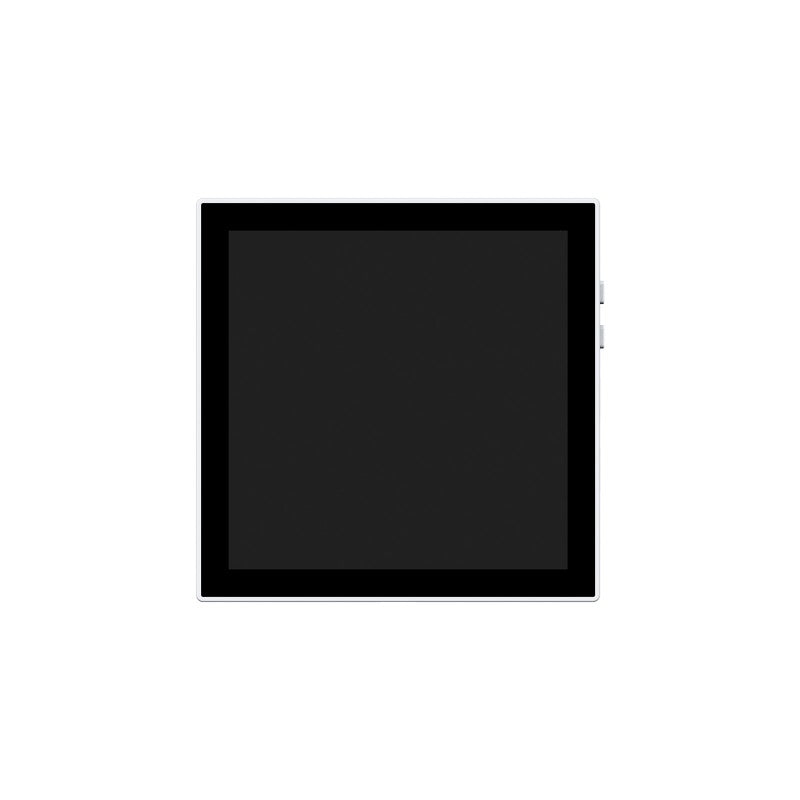

4inch IPS touch screen
160° wide viewing angle, Excellent display performance
Capacitive 5-point touch
Supports capacitive 5-point touch function controlled via I2C interface for flexible operation and smooth UI interaction
WIFI And Bluetooth Support
supports 2.4 GHz Wi-Fi (802.11 B/G/N) and Bluetooth 5 (LE), Onboard Antenna
Audio input/output
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit. Meet daily audio application scenarios
Supports AI voice interaction
Supports mainstream AI platforms and can be connected to online large model platforms such as Doubao, DeepSeek, and other AI models
Application scenarios
Smart Switch
Human-Machine Interface
Smart Home Terminal

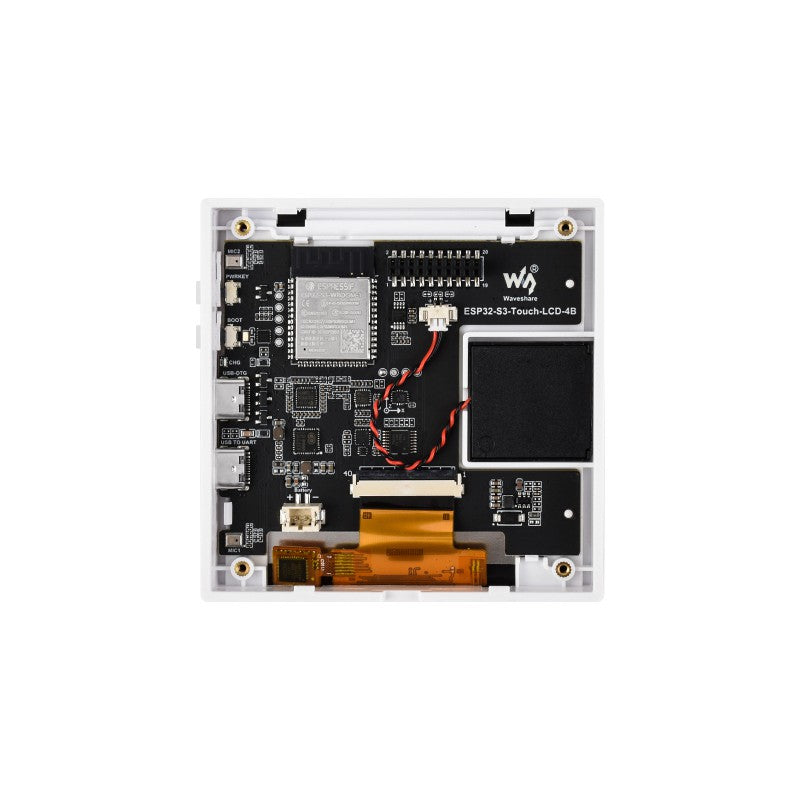

What's On Board
-
ESP32-S3-WROOM-1-N16R8
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM and 16MB Flash -
AXP2101
Highly integrated power management IC -
ES7210 echo cancellation chip
echo cancellation algorithm chip, used to eliminate echo and improve audio capture accuracy -
ES8311 low-power audio codec chip
for audio encoding and decoding -
PCF85063
RTC chip -
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer -
TCA9554PWR
GPIO expansion chip -
LCD connector
for connecting 4inch RGB screen
-

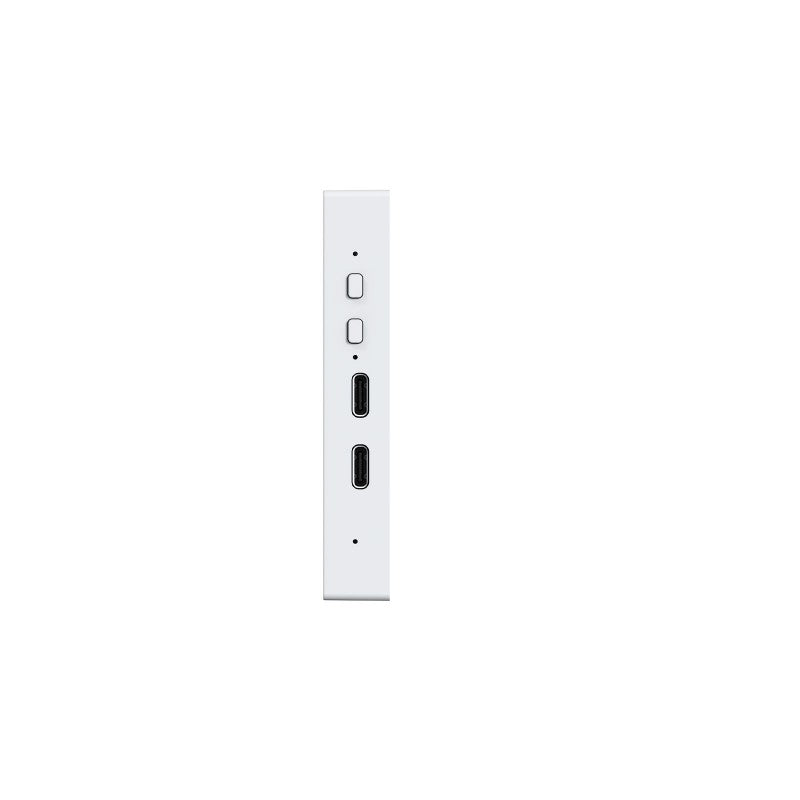

USB TO UART Type-C connector
for power supply, program burning and debugging -
USB Type-C connector
ESP32-S3 USB interface, for power supply, program burning and log printing -
Onboard microphones
Microphone inputs with echo cancellation -
Speaker header
MX1.25 2P connector, supports 8Ω 2W speaker -
PWRKEY button
for power supply on/off, programmable for other functions -
BOOT button
for device startup and function debugging -
CHG LED indicator
for indicating the charging status of the Lithium battery -
PH2.0 Lithium battery header
for 3.7V Lithium battery, supports charging and discharging -

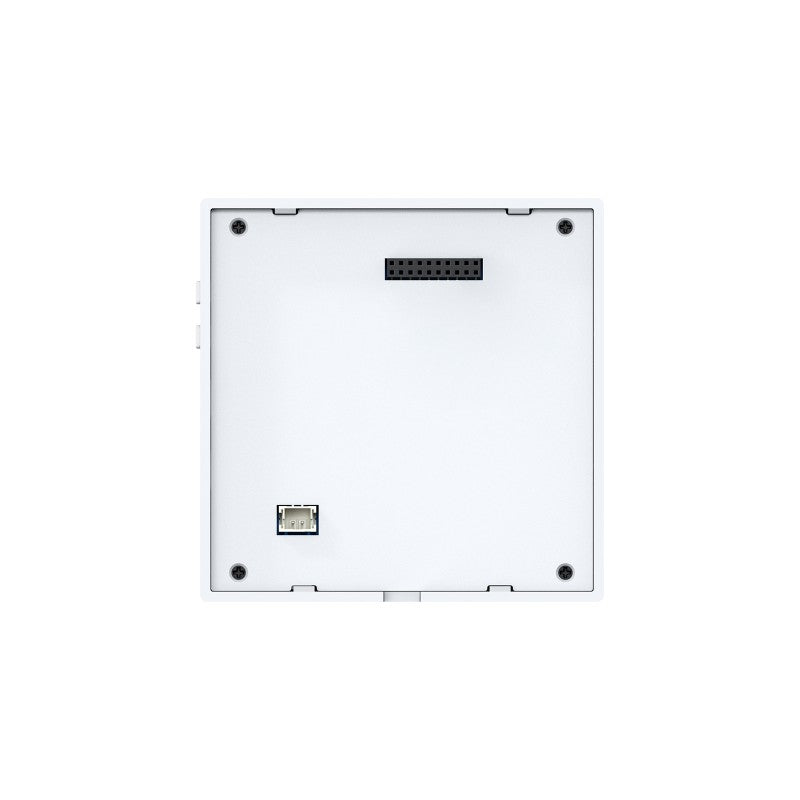

Expansion header (pitch 2.0mm)
for connecting peripherals
outline dimensions
