U2D2 PHB (Power Hub Board) Set
SKU:
ROBT-902-0145-001
Rs. 2,199.00
Taxes included.
Shipping calculated at checkout.
Description
Features

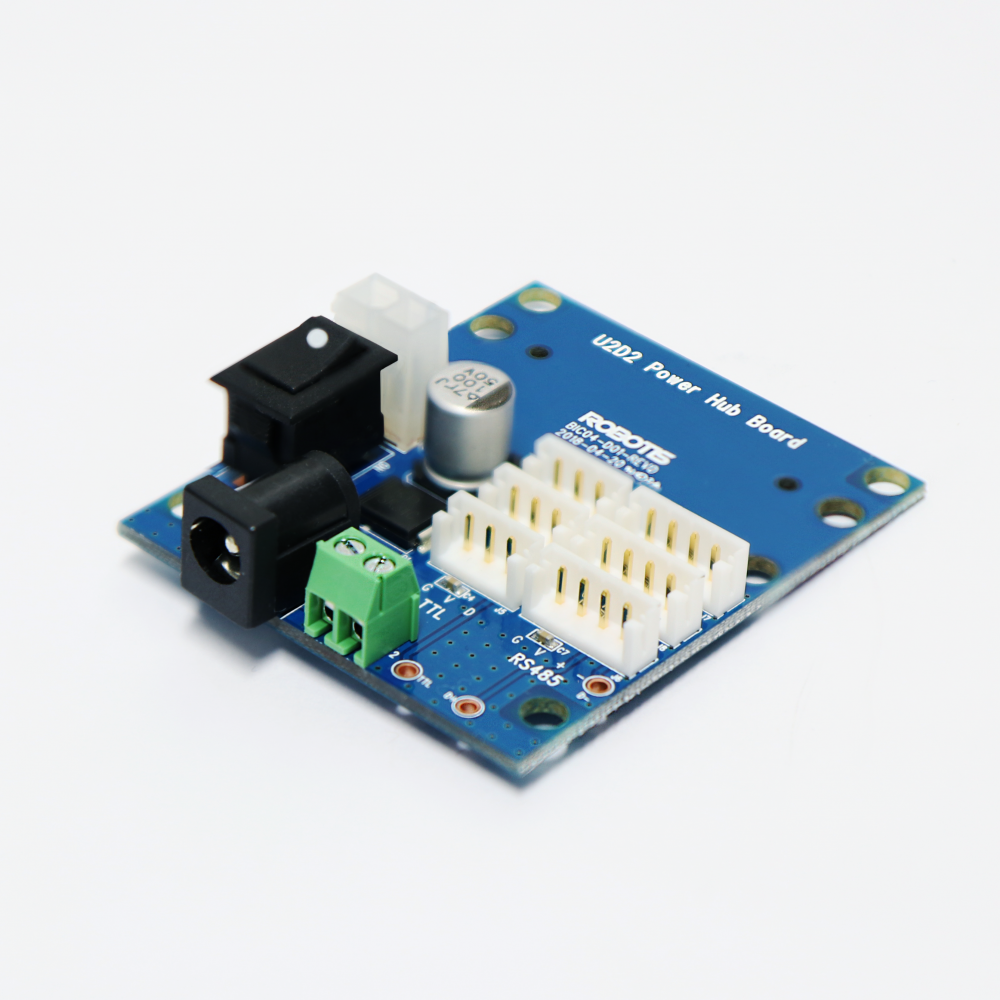

- The U2D2 Power Hub Board combines with the U2D2 to supply a variety of external power sources to DYNAMIXELs.
- The board is capable of supplying power to all DYNAMIXELs with the SMPS port, terminal block, and 2P power connector.
- The board has holes to fix the U2D2 module and can be assembled using the rivets supplied in the package.
- Easily powers ON/OFF with the power switch.
Robot cable for connecting U2D2 is included.
Package Components
| U2D2 Power Hub Board | 1 |
|---|---|
| Rivet (For U2D2 assembly ) | 1 |
| NUT M3 | 4 |
| Support M3x10x6 | 4 |
| Robot Cable-X3P 100mm | 1 |
| Robot Cable-X4P 100mm | 1 |
*U2D2 is not included.
H/W Specifications
| Dimension | 48mm x 57mm |
|---|---|
| Operating Voltage | 7.4V ~ 24.0V |
| Max Current | 10.0A |
Compatible Products
DYNAMIXEL AX/MX-Series, PRO-Series
- Use the Molex-JST Convertible Cable (Use 3P or 4P based on your communication selection)
DYNAMIXEL X-Series, PRO+ Series
- Use the JST Cable. (Use 3P or 4P based on your communication selection)The U2D2 Power Hub Board only has a JST type connector and requires a convertible cable when connecting to Molex type connectors.
*Required cables: Min 2pcs (U2D2 <-> DYNAMIXEL,
U2D2 Power Hub Board <-> DYNAMIXEL)
Caution
U2D2 is not included
When using the terminal block, please pay attention to the polarity when using external power.
Left side is - and Right side is +
Various pins are exposed behind the board. We recommend users to assemble and use the included supporter.
