tRF click

tRF click

MIKROE-1535

Rs. 6,199.00
Rs. 6,199.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

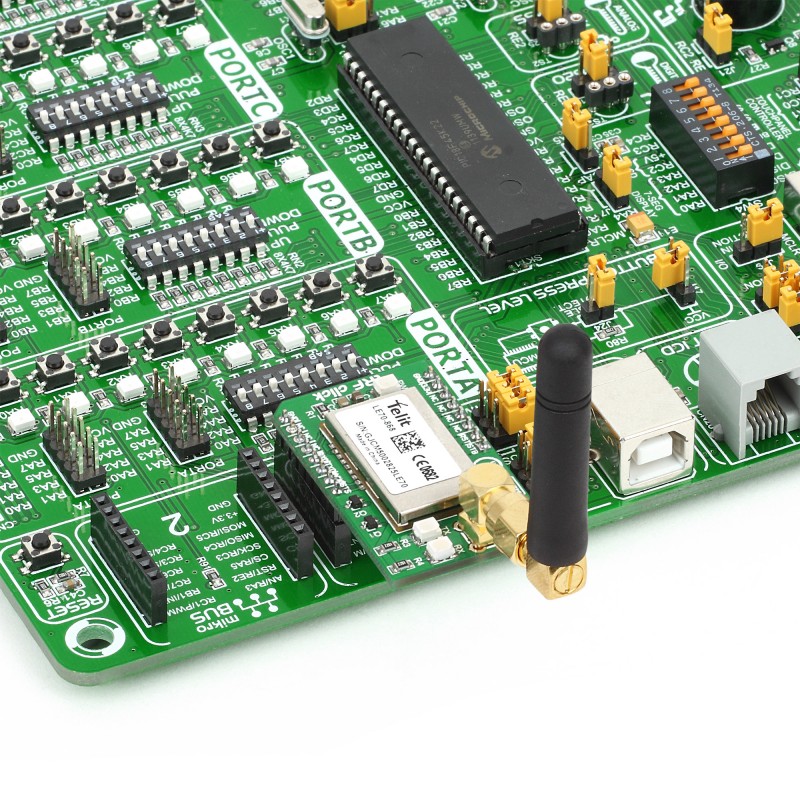

tRF click is an add-on board in mikroBUS form factor. It can be used to wirelessly send and receive UART data. It features the Telit LE70-868 - 868 MHz transceiver module with an embedded stack that is easy to integrate and use in point-to-point or star network topologies. The click also carries an SMA connector for an antenna as well as two radio communication LEDs. It enables radio data rates from 4.8 to 57.6 kbps with maximum output power of 500mW and a range of up to 10km in ideal conditions (open space). We managed to get a good 4km range in mixed conditions. The board is designed to use 3.3V power supply only. A LED diode serves as a power indicator.
Note: Antenna sold separately.

Specification

Type RF Sub 1GHz
Applications Designing long or short range point-to-point or star networks. Applications that need very large RF coverage or in dirty RF environments
On-board modules Telit LE70-868 - 868 MHz transceiver module
Key Features Radio data rates from 4.8 to 57.6 kbps with maximum output power of 500mW
Key Benefits Embedded point-to-point and star network stack
Interface GPIO,UART
Input Voltage 3.3V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
