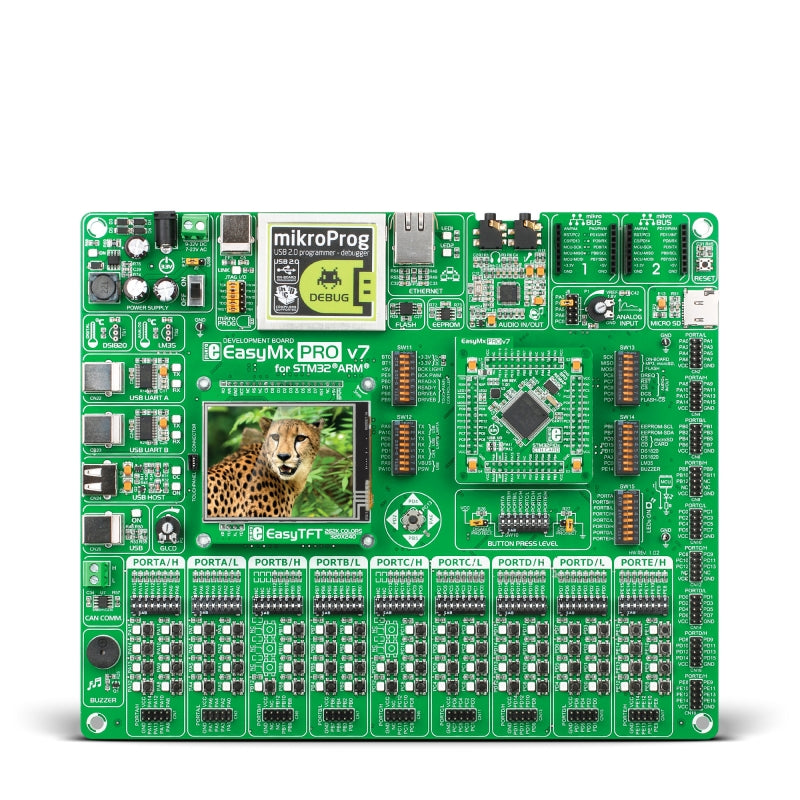

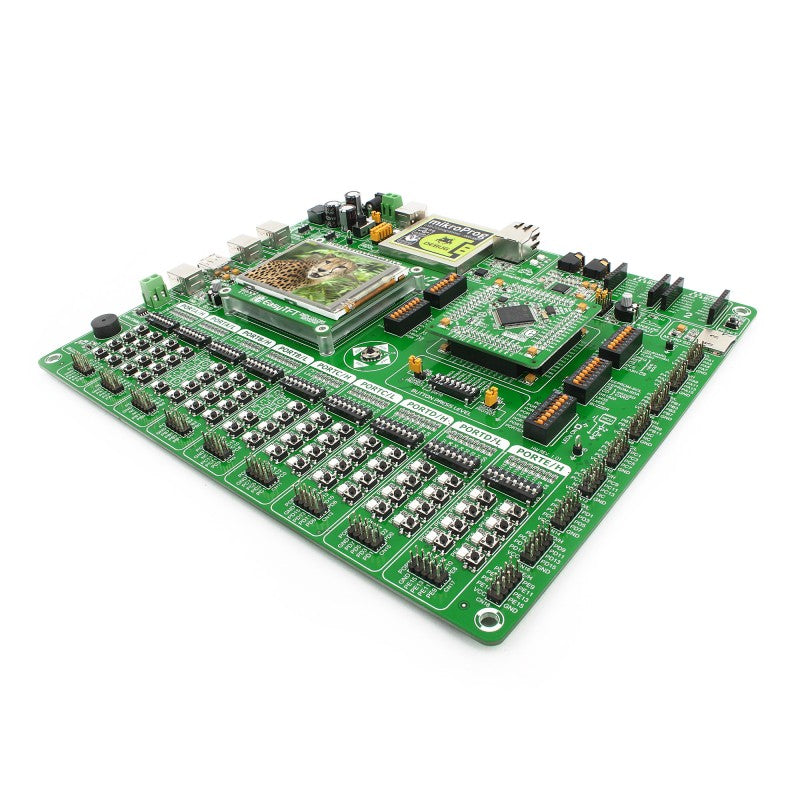

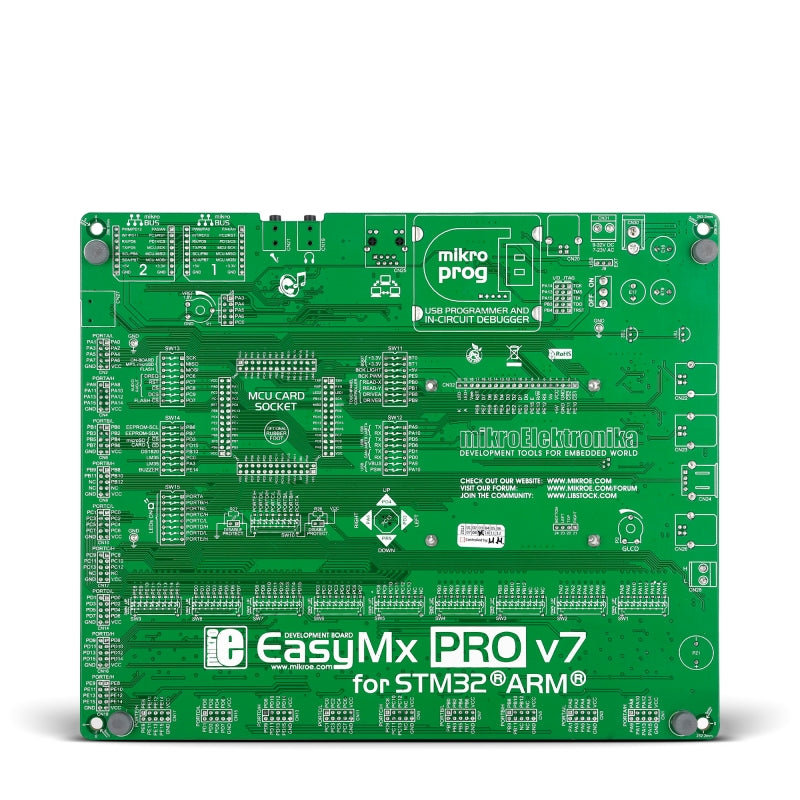

EasyMx PRO™ v7 for STM32 ARM® is a full-featured development board for STM32 ARM® Cortex™-M3 and Cortex™-M4 microntrollers. It contains many on-board modules necessary for development variety of applications, including multimedia, Ethernet, USB, CAN and other. On-board mikroProg™ programmer and debugger supports over 180 ARM® microcontrollers. Board is delivered with MCU card containing STM32F107VCT6.

mikroProg™ with debugger on Board

mikroProg™ is a fast USB 2.0 programmer with hardware debugger based on polular ST-LINK v2 debugger. It supports over 180 STM32 ARM® Cortex™-M3 and Cortex™-M4 microcontrollers from STMicroelectronics®. Outstanding performance and easy operation are among it’s top features.

It features a hardware debugger which enables you to execute your program on the host microcontroller and view variable values, Special Function Registers (SFR), RAM, CODE and EEPROM memory along with the code execution on hardware. Whether you are a beginner, or a professional, this powerful tool with convenient set of commands will enable you to track down bugs quickly. mikroProg™ debugger is one of the fastest, and most reliable debugging tools for ARM® Cortex™-M3 and M4 on the market.

MCU card

EasyMx PRO™ v7 for STM32 MCUcard is included in the package with the board. It's also sold separately, if you'd like a spare one to integrate into your own hardware or for any other reason.

Modules

Ethernet on-board

Ethernet connector (RJ-45) allows you to develop ethernet applications.

Audio

Audio in and out jacks are connected to on-board mp3 codec chip.

Touch Screen

EasyTFT board with touch screen enables you to develop multimedia applications.

Buzzer

Piezo Buzzer allows you to implement audio signalization feature in your prototype.

USB/UART

Write UART applications for laptops too. We provided two USB-UART modules.

Storage

Board contains microSD card slot for storing large amount of data on external media.

mikroBUS™ sockets

With two mikroBUS™ sockets you can add dozens of new functionality to your board with minimum hardware adjustments. Collection of mikroBUS™ compatible Click Boards is growing rapidly, and we have designed them with great care, so you don’t have to make any complicated settings. Just plug your board in, and you are good to go.

Package Contains

• Damage resistant protective box
• EasyMx PRO™ v7 board in antistatic bag
• USB cable
• User Manual and Board Schematic
