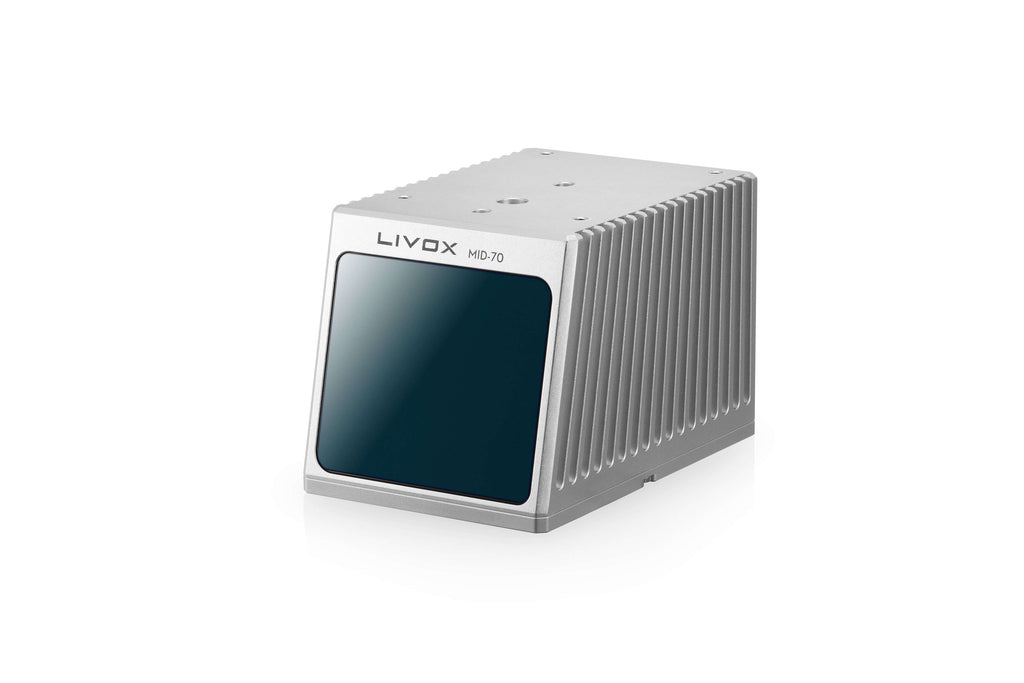

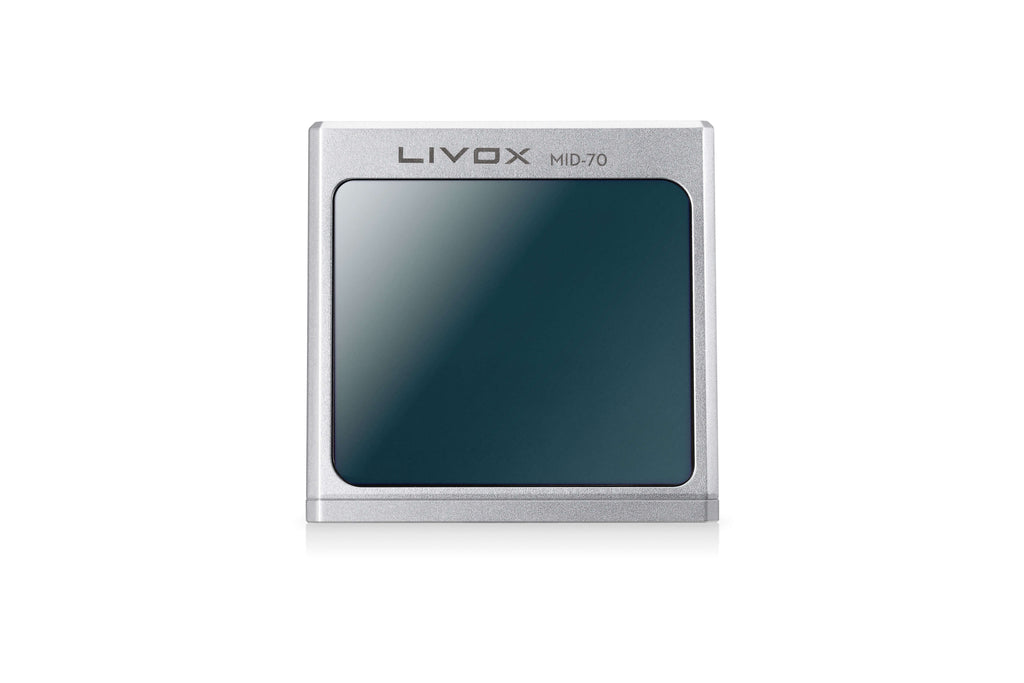

Livox MID-70

Description

The Livox Mid-70 is a high-performance LiDAR sensor known for its cost-effectiveness and versatile applications, particularly in autonomous driving, mobile robotics, and 3D mapping. It is distinguished by its non-repetitive scanning pattern, which provides comprehensive environmental perception.

Key Technical Specifications

Here's a detailed breakdown of the technical specifications for the Livox Mid-70:

Performance:

• Detection Range:

  • 260 meters at 80% reflectivity

  • 130 meters at 20% reflectivity
  • 90 meters at 10% reflectivity

• Field of View (FOV): 70.4° (Circular)

• Point Rate: 100,000 points/s (single return), 200,000 points/s (dual return)

• Ranging Accuracy: ±2 cm at 20 m

• Angular Accuracy: < 0.1°

• Minimum Detection Distance: 5 cm

• False Alarm Rate: < 0.01% (@100 klx)

Laser and Scanning:

• Laser Wavelength: 905 nm

• Laser Safety: Class 1 (IEC 60825-1:2014) (eye-safe)

• Scanning Method: Non-repetitive scanning pattern

Data and Power:

• Data Port: 100 Mbps Ethernet

• Data Synchronization: IEEE 1588-2008 (PTPv2), PPS

• Power Consumption: 8 W (average)

• Voltage Range: 10 V to 15 V DC

Physical and Environmental:

• Dimensions: 97 mm × 64 mm × 62.7 mm

• Weight: Approximately 580 g
• Operating Temperature: -20°C to 65°C (-4°F to 149°F)
• IP Rating: IP67, providing protection against dust and water ingress.

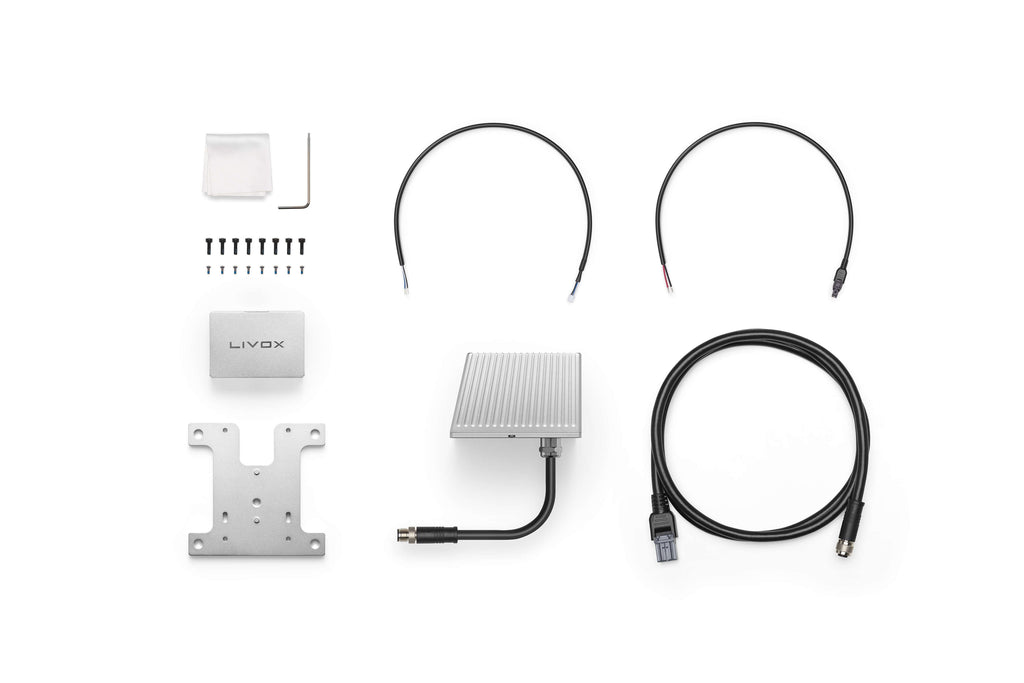

In the Box:

Livox Mid-70 ×1
Livox Converter 2.0 ×1
Mounting Bracket ×1
Optical Window Cleaning Cloth ×1
L-shape Hex Screwdriver ×1
Screw Package ×1
Cables Package ×1

Key Features:

• Non-Repetitive Scanning: A key feature of the Mid-70 is its unique scanning pattern. Unlike traditional LiDAR sensors that scan in a linear fashion, the Mid-70's non-repetitive pattern allows it to capture a more comprehensive and detailed point cloud of the surrounding environment over a short period

• Wide Field of View: The circular 70.4° FOV provides a broad perspective, reducing blind spots and making it suitable for applications requiring a wide area of coverage, such as autonomous navigation and obstacle avoidance.
• Cost-Effectiveness: The Mid-70 is recognized for its competitive pricing, making advanced LiDAR technology more accessible for a variety of applications, from academic research to commercial product development.
