WS2812 Addressable LED: 1M Waterproof Strip

WS2812 Addressable LED: 1M Waterproof Strip

SKU:DG-122-000

Regular price Rs. 2,449.00
Regular price Sale price Rs. 2,449.00
Sale Sold out
Taxes included.

Out of stock

Educators, need to add a little excitement to your lab exercises?

These LED strips are just about the best way to get tons of colorful LED light with a minimum of wiring and fuss! Each strip is one meter in length and contains 30 light elements. Each element contains a red, green, and blue LED, as well as a tiny WS2812 controller chip. This means that each element is individually addressable and can accept brightness values of 0-255 for each of its LEDs, giving you 24 bits of color precision overall.

For the sake of convenience, these strips are completely sealed in a rubber weatherproof sheath, so you can use them in a wide variety of applications. In addition, they're completely pre-wired - just connect them to your project and go!

To control these lights, a rather timing-intensive protocol is used. You will either need to write your own or you can borrow existing libraries made by members of our community. The following demo projects are available for specific host boards:

  • PICxel: Works with the uc32
  • LBling: Works with the WF32 or Max32
  • Zybo LED Demo: Works with the Zybo Zynq-7000 FPGA

Features:

  • Strip of 30 RGB LEDs

  • Each LED element is individually adressable with 24-bit color (8 bits each for R, G & B)

  • Entire strip surrounded by weather-proof sheath

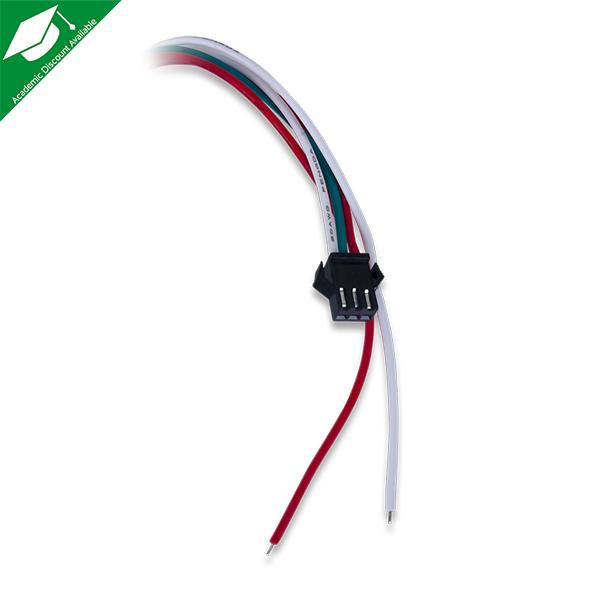

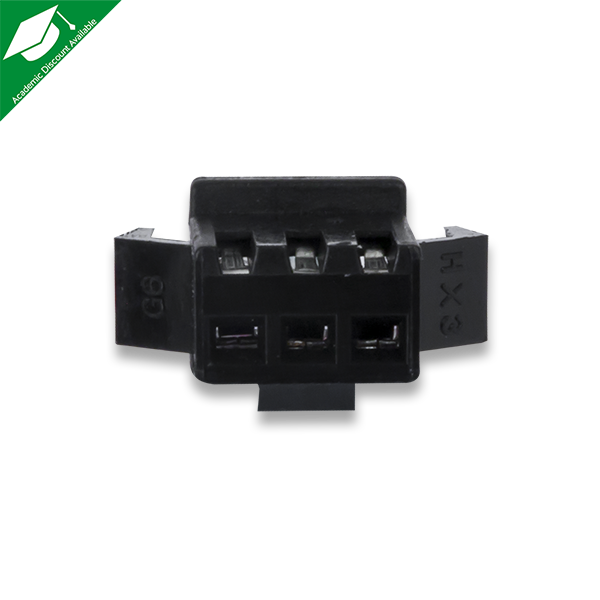

  • Pre-wired for easy connection

  • 1 meter in length
