Pioneer600 - Raspberry PI Expansion Board

Description

Features

• Supports Raspberry Pi A+/B+/2B
• dual LED, joystick, buzzer, the basic components
• CP2102, control the Pi through serial terminal
• 0.96inch OLED, big world in the little screen
• DS3231, high precision, backup battery holder is also available
• PCF8591, 8-bit resolution, screw terminal IO interface
• PCF8574, more GPIO, more possibility
• LFN0038K, Raspberry Pi remote control comes true
• BMP180, measuring air pressure and temperature
• <1-WIRE> for connecting 1-WIRE devices, DS18B20 is included
• for connecting various sensors

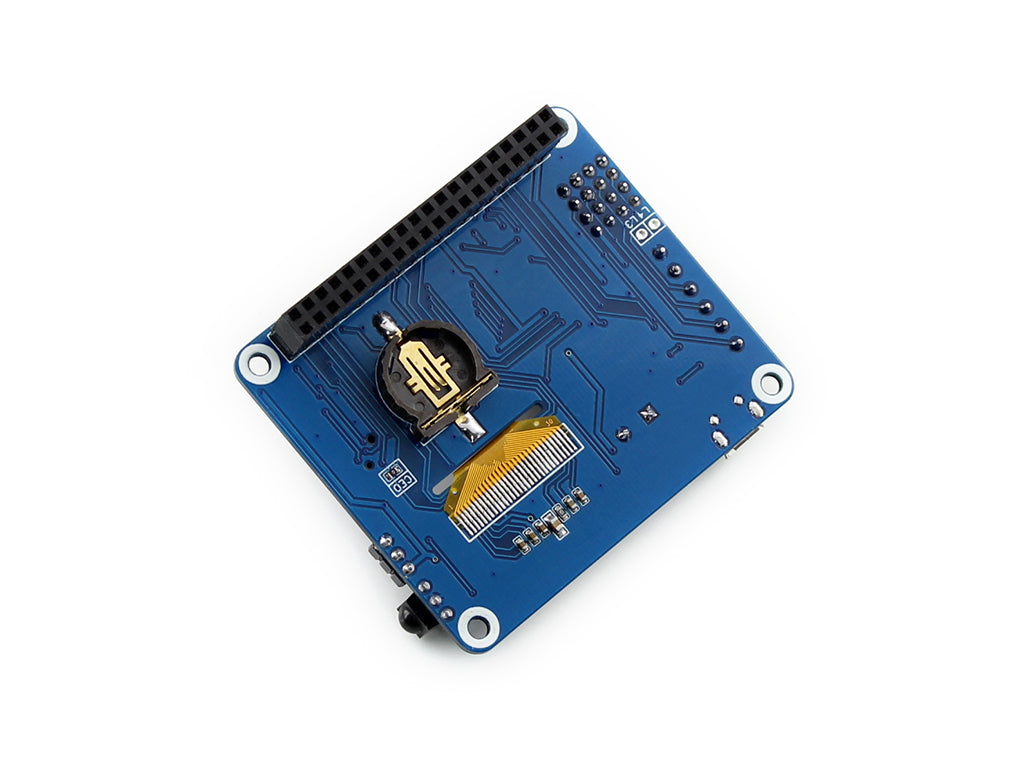

What's on Board

1. Raspberry Pi GPIO interface : for connecting Raspberry Pi
2. USB TO UART : control the Pi through serial terminal
3. AD/DA IO interface : screw terminal
4. 1-WIRE interface : for connecting 1-WIRE devices like DS18B20
5. Sensor interface : for connecting various sensors
6. 0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface
7. Buzzer
8. CP2102 : USB TO UART converter
9. PCF8591 : 8-bit AD/DA converter, I2C interface
10. BMP180 : pressure sensor, I2C interface
11. PCF8574 : I/O expansion chip, I2C interface
12. DS3231 : high precision RTC chip, I2C interface
13. Power indicator
14. User LED
15. Joystick
16. LFN0038K IR receiver
