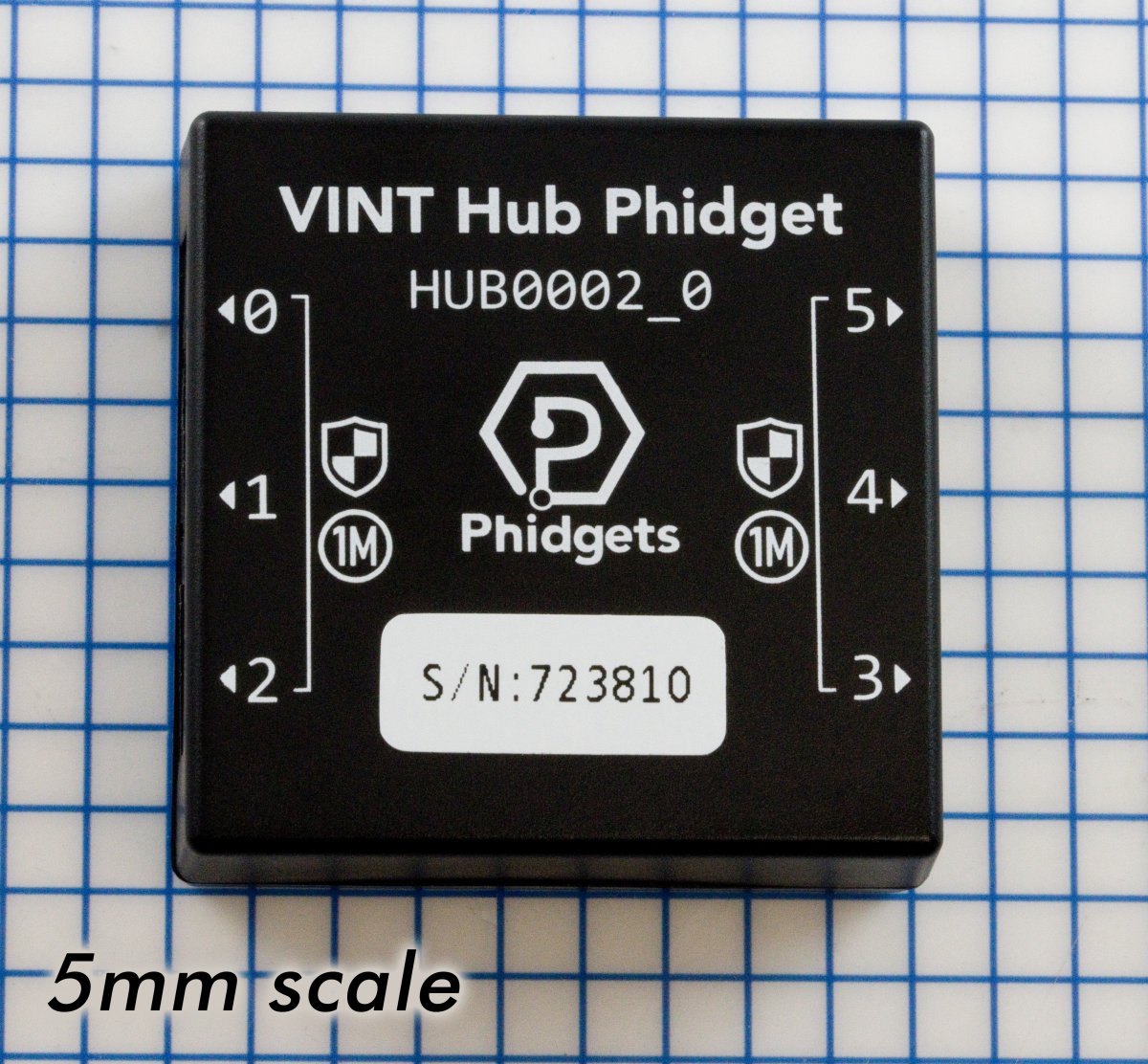

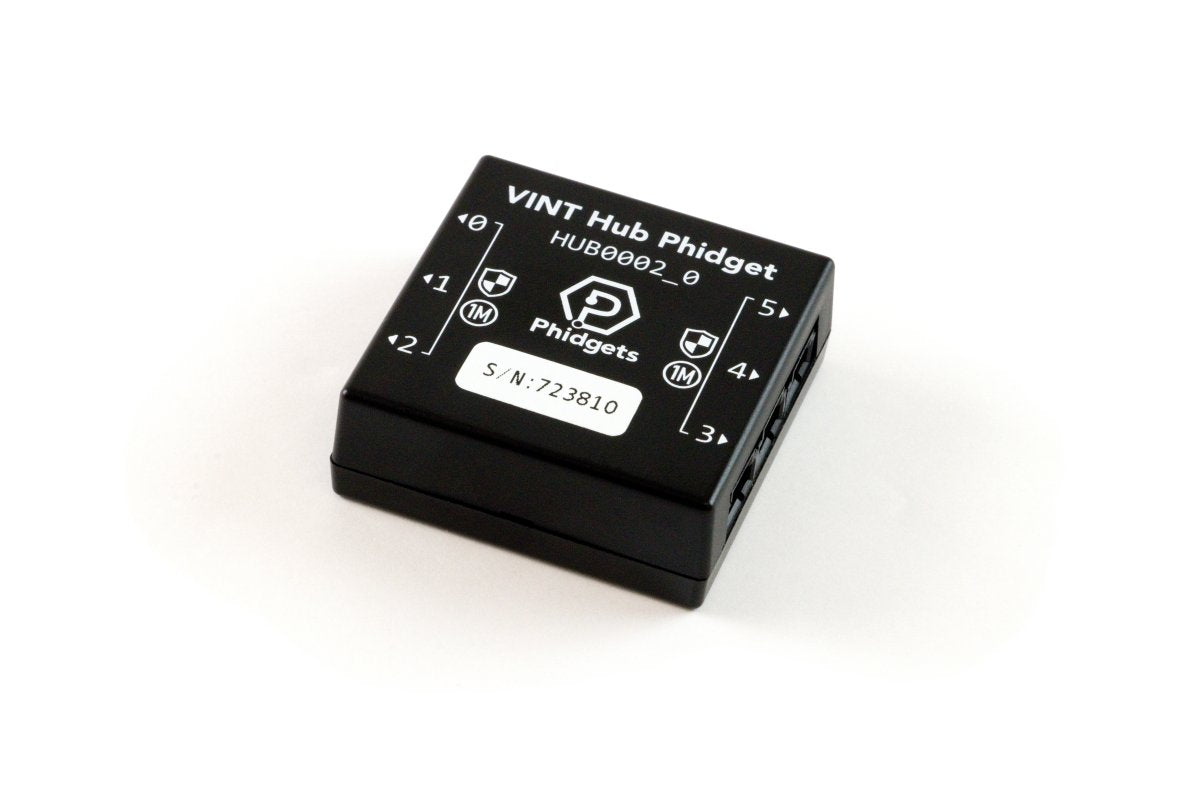

VINT Hub Phidget

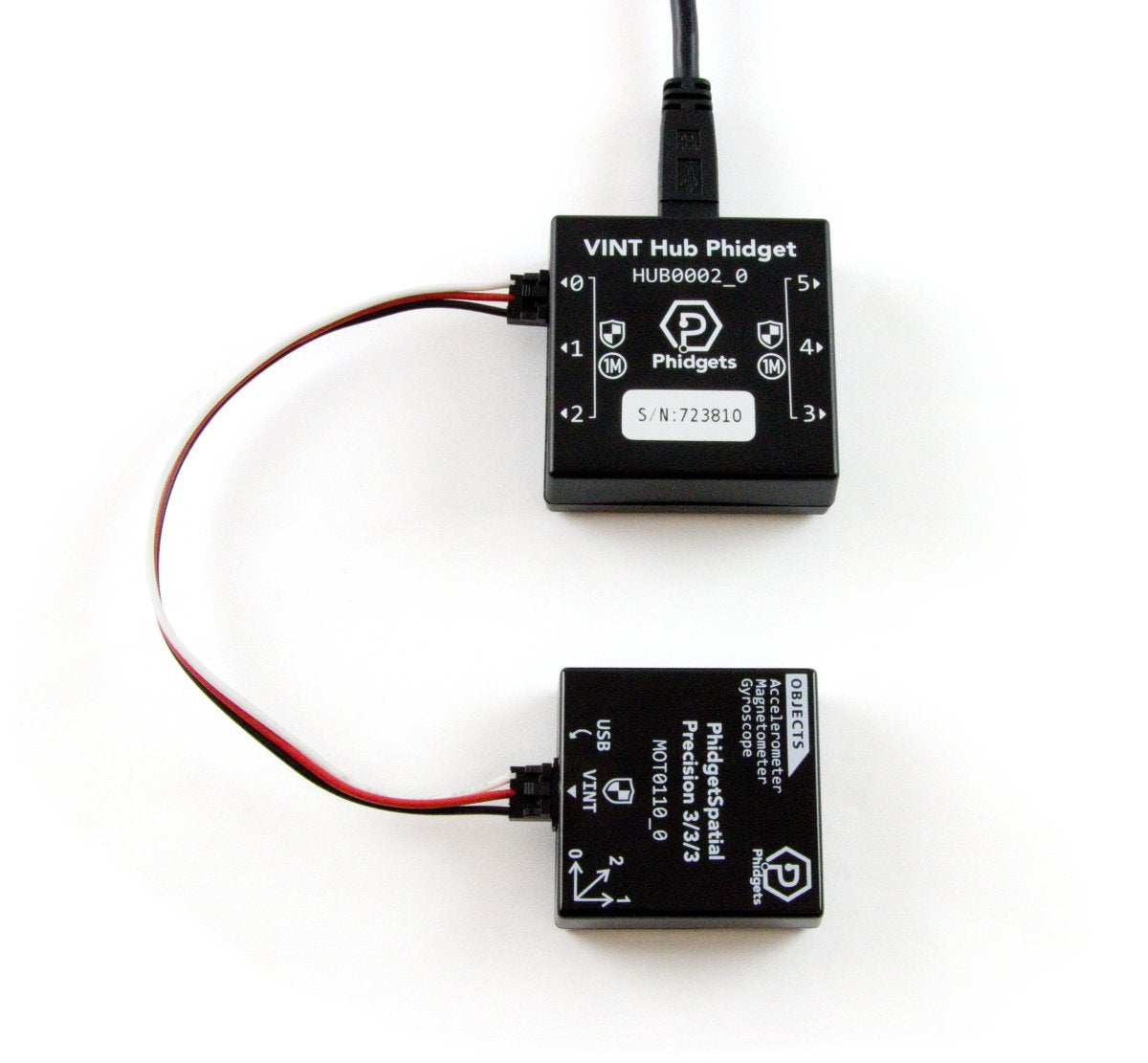

The VINT Hub is one of the most commonly used Phidgets. Connect up to 6 devices to your computer through a single USB port.

Each VINT port can perform one of four roles:

• Communicate with an intelligent VINT Device
• Read a 0-5V Voltage or ratiometric sensor
• Act as a digital output
• Read switches as a digital input

The mode of each port is set in your program, allowing for flexible use in projects.

Technical details:

• Plug and Program - Device is automatically discovered by the Phidget API when attached
• Pulse Width Modulation Enabled - Ports in DigitalOutput mode support PWM, useful for dimming LEDs and other simple components
• Analog Sensor compatible - Each port is backward compatible with both ratiometric and non-ratiometric Phidget analog sensors
• USB Voltage Supply - Each port has a power and ground pin providing direct access to the USB voltage supply
• Improved Performance on newer VINT devices:
  Better immunity on compatible VINT devices, resulting in longer maximum cable length
  Higher speeds on compatible VINT devices
  For more information about these features, see the technical section of the User Guide.
