MX-64/106 Custom X-Long Bracket Set

Description

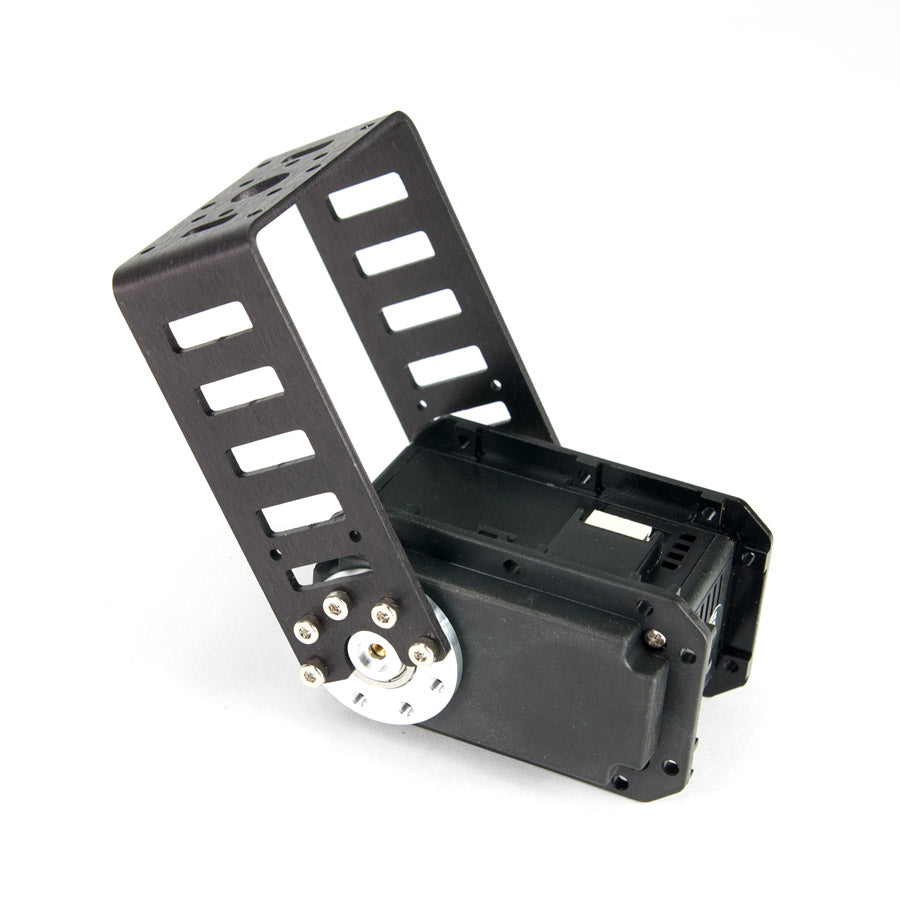

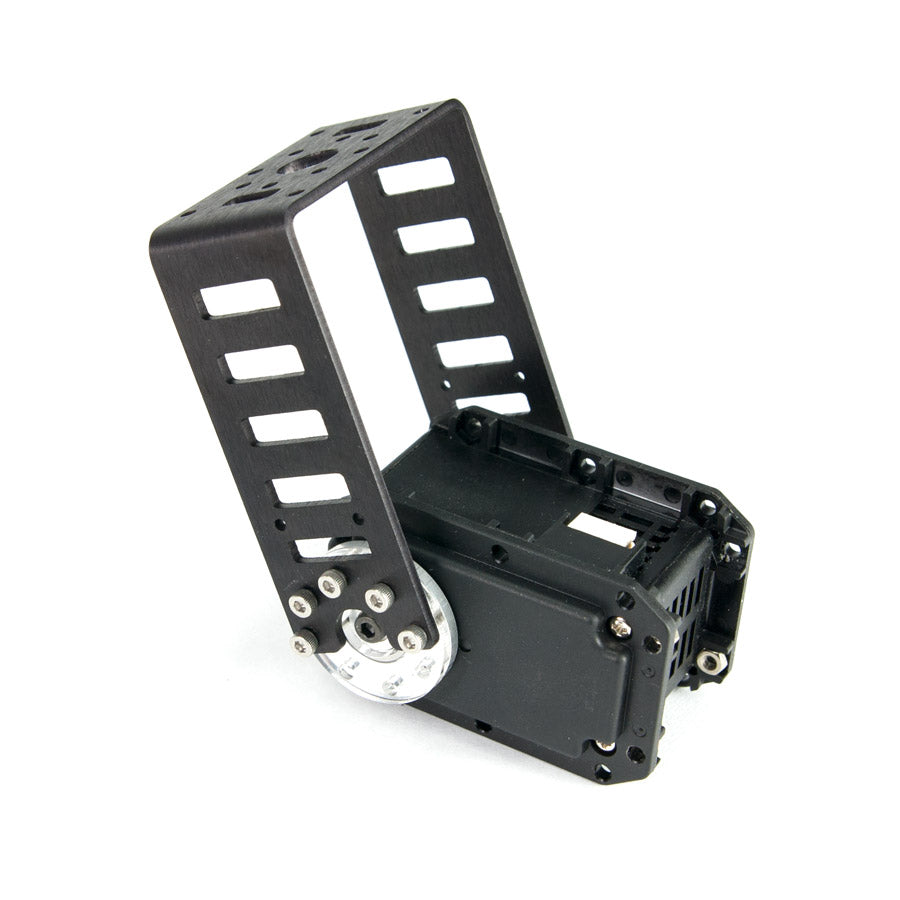

This Interbotix Lab Custom Frame is great for building robots from the -64 and -106 series DYNAMIXEL robot servos.
For -106 servos, the frame will fit perfectly onto the servo. Each frame comes with two small spacer and longer bolts for a perfect fit on any -64 series servo - just fit one spacer in between the frame and the horn, and one spacer between the frame and the idler bearing.

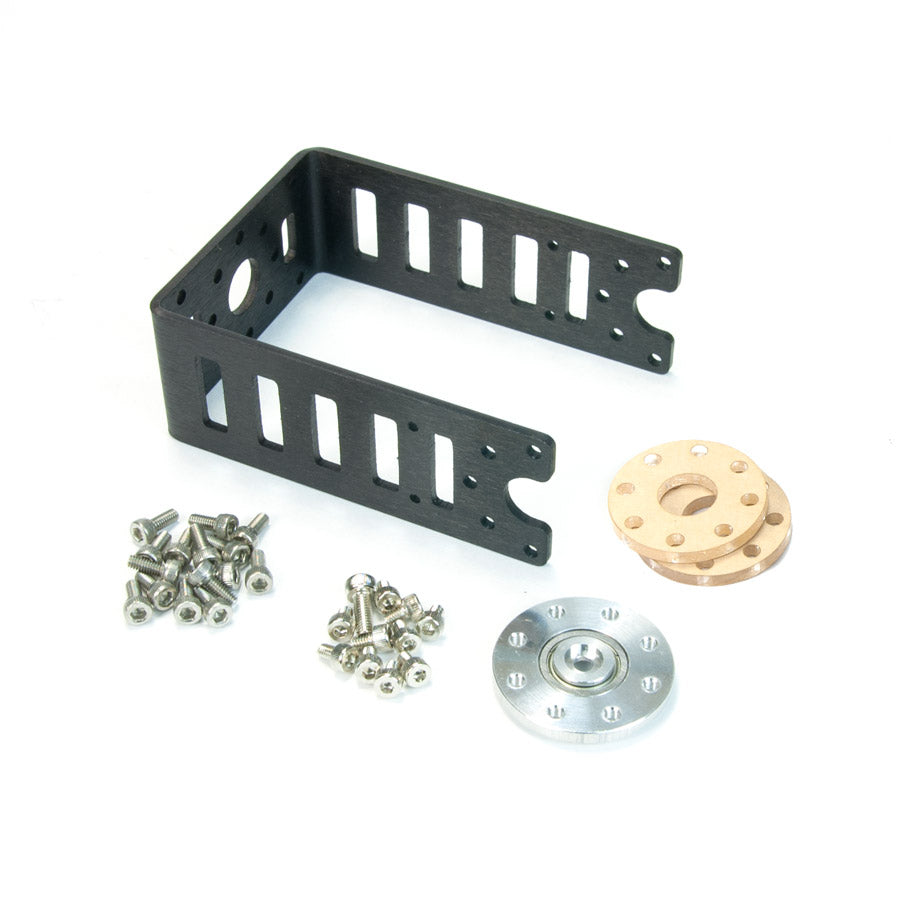

Contents

• 1 x Black X-Long Bracket

• 1 HN-05 I101 Idler Kit
• 2 x plastic spacer for -64 series servos
• 10 x M2.5*6 bolts (NOTE: These bolts are only for the -64 series servos. Do NOT use them with the -106 series servos - instead, use the M2.5*4 that come with the servo's horn.)

Compatibility List

• RX-64

• MX-64T
• MX-64R
• MX-106T
• MX-106R
• EX-106

NOTE: The acrylic plastic spacers in this kit are NOT compatible with Turbo-Lock. Plastic-safe adhesives like Turbo-Fuse should be used.
