Phidgets

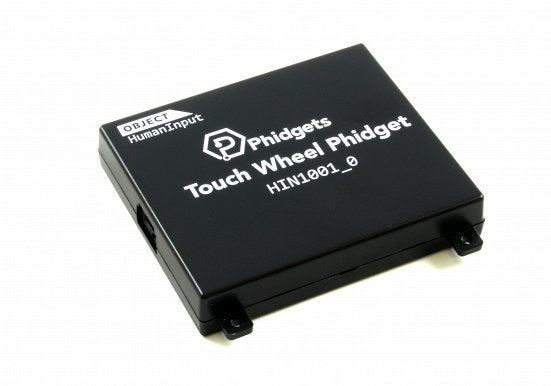

Touch Wheel Phidget
SKU: Phidgets-HIN1001_0
₹ 1,729.00
Taxes included.
Shipping calculated at checkout.
Description

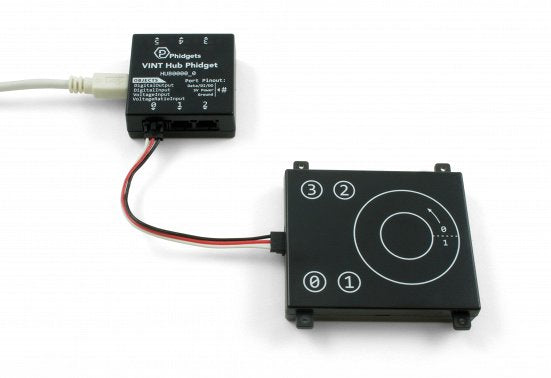

The Touch Wheel Phidget uses capacitive touch technology, similar to the touchscreen on a smartphone. Capacitive touch sensors such as this can detect a touch through a piece of glass or plastic of up to 3mm thick, so you can hide this board inside an enclosure or behind a panel. This Phidget connects to your computer through a VINT Hub.
Features:

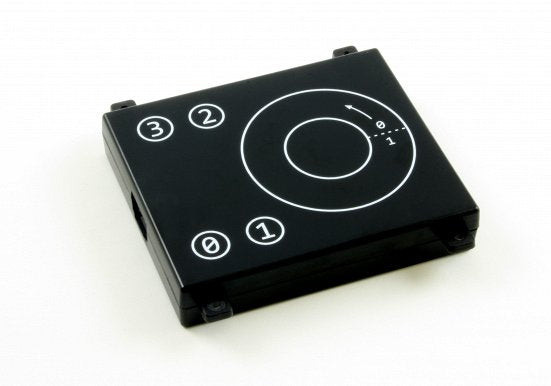

- Four capacitive touch regions - each region can be assigned a different function in your program
- One scroll wheel pad
- Adjustable sensitivity
- Automatic recalibration if an object is present for over sixty seconds, preventing regions from being locked by unintentional objects like dirt or debris.
Product Specifications
| Sensor Properties | |
|---|---|
| Controlled By | VINT |
| Detecting Distance Max | 5 mm |
| Sampling Interval Min | 20 ms/sample |
| Sampling Interval Max | 250 ms/sample |
| Electrical Properties | |
| Current Consumption Min | 20 μA |
| Current Consumption Max | 2 mA |
| Physical Properties | |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
Sensitivity Settings
| Sensitivity (0-1) | Application |
|---|---|
| 0.8 - 1.0 | Behind up to 3mm of glass |
| 0.2 | Inside default enclosure |
