Super-Modem

Description

Super-Modem is an upgraded version of the Modem HW v5.1-Outdoor with advanced capabilities. Additional features of Super-Modem as compared to Modem v5.1:

• UDP streaming over WiFi
• Full remote control via UDP from and to the Dashboard
• Streaming out using RS485
• Streaming out and full control via Virtual UART over USB
• Bluetooth (hardware enabled but not yet supported in SW). Request from us separately if important for you
• >1000x more RAM and >1000x Flash memory than Modem HW v5.1
• Full-size bendable antenna by default
• Higher ingress protection by default. Up to IP67 – optional
• Super-Modem’s hardware supports Super-Modem and Super-Super-Modem functionality for Multi-Modem architecture. The architecture is used for very large installations including multi-floor and multi-building

Specs and features:

• Designed for indoor, outdoor, and industrial applications

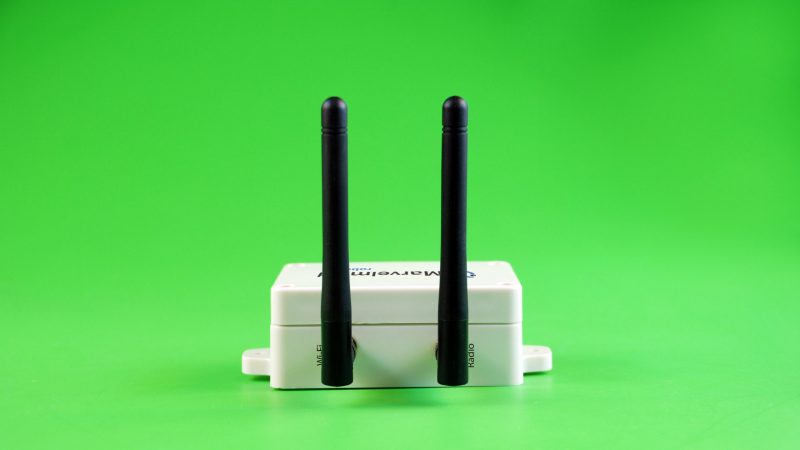

• External bendable antennas with SMA connectors for extended radio range included
• Currently, it supports a license-free 915MHz ISM band (for example, US, Japan, Korea) and license-free SRD band 868MHz (EU, Russia). Future 433MHz HW variants are available upon request
• Supports all types of beacons working in the 915/868MHz bands (among them: Super-Beacons, all Industrial beacons, Mini-RX, Helmets, Badges, Jackets, Watches, etc.)

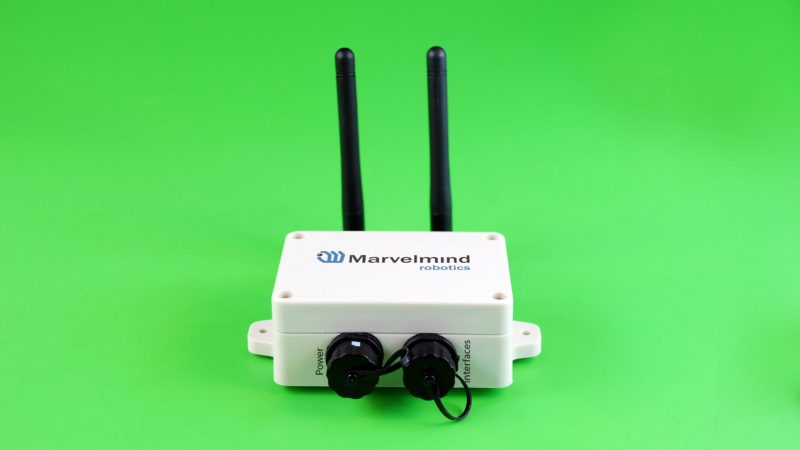

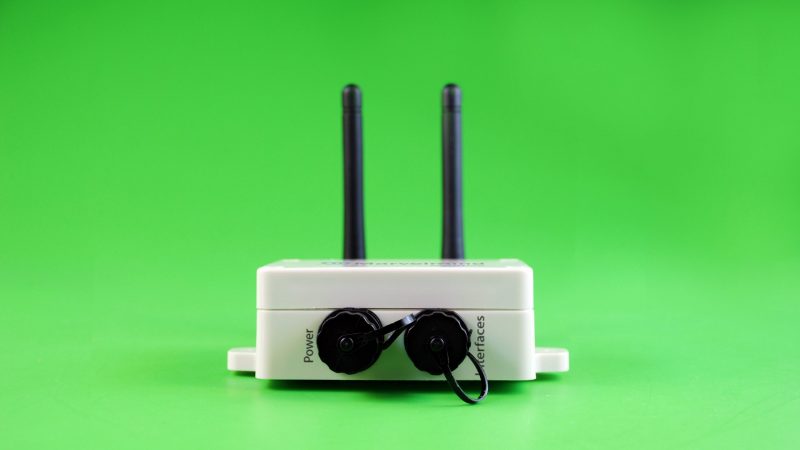

• Two IP67 external connectors:

  1. Power:

     • – +5V – the same as Industrial beacons
     • – Reset pin
     • – DFU pin
     • – GND
  2. Interfaces:

     • – RS485
     • – UART 3.3V – TX out only
     • – USB (TX+RX)
     • – GND

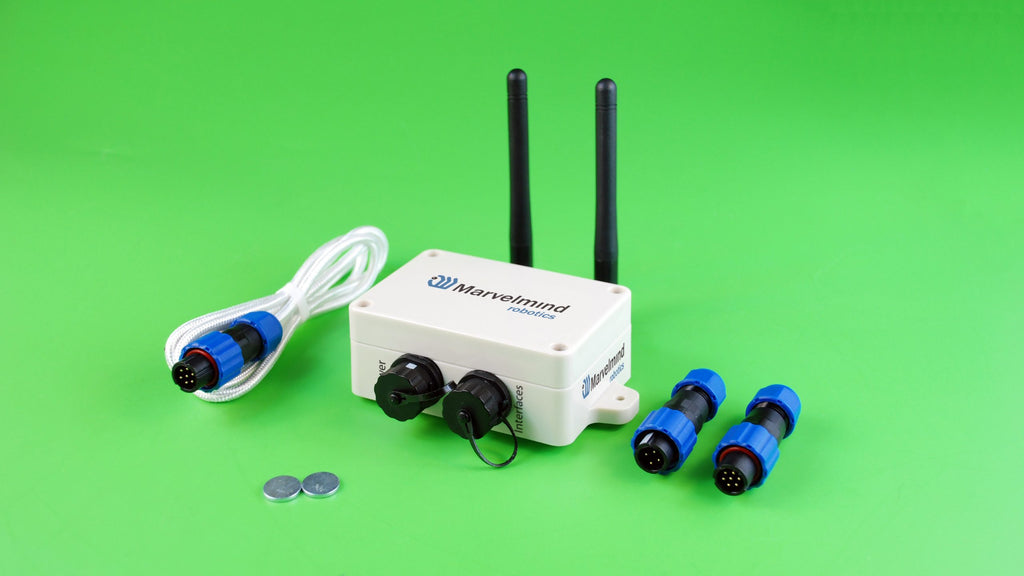

• Corresponding IP67 connectors (male part) included
• No battery inside – external power supply required. It is done in order to support extended temperature range
• External battery is not practical for long-term due to relatively high and constant power consumption of 1.5-2W
• Extended working temperature range: -40C…+50C (provided by design – not tested, not certified)
• Embedded reset switch and DFU switch – magnetic control or external pins on IP67. Magnets are supplied
• Supports all beacons: Industrial Beacons, Super-Beacons, Mini-RX, Mini-TX, etc. in NIA, MF NIA and IA
• Radio range is up to a few hundred meters in open space with full-size antennas
• WiFi range is a few tens of meters of open space
• Optional external IP67 converter ~110/220V to +5V or DC-DC converter

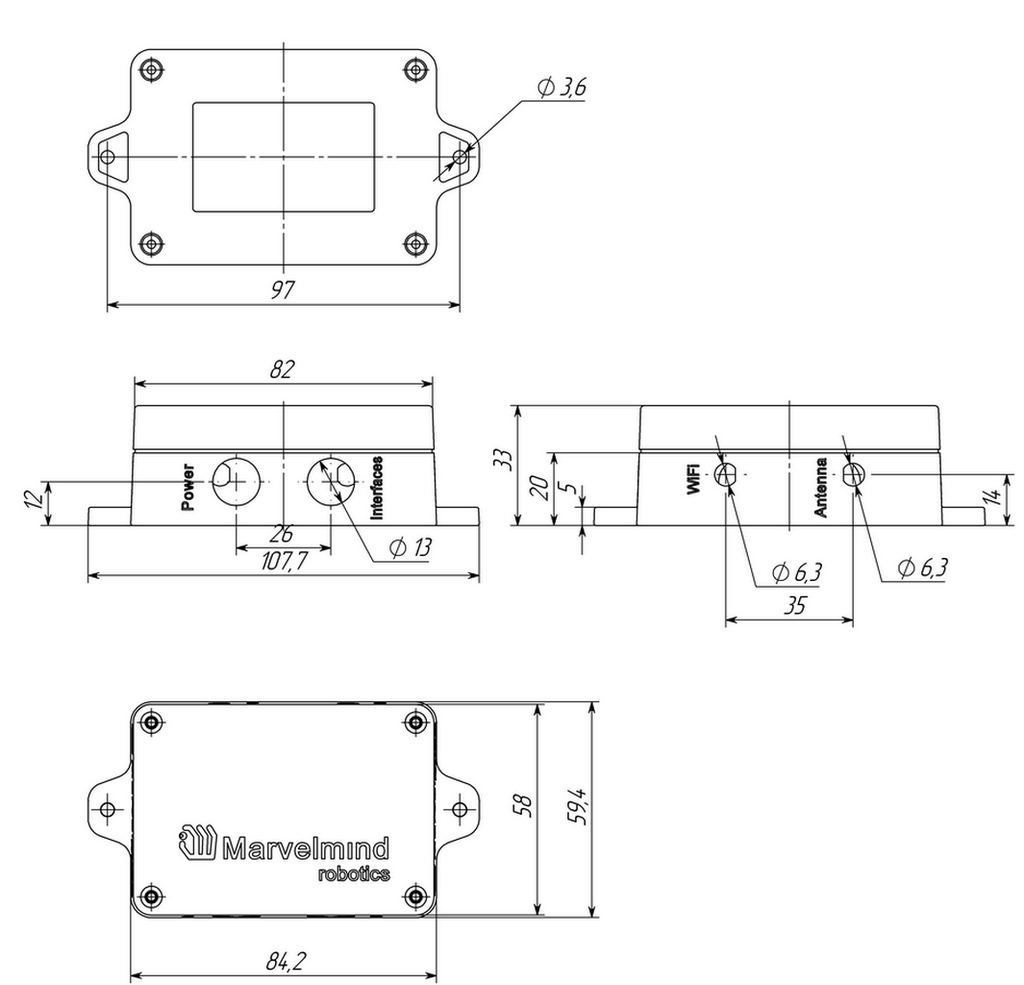

• The same mounting holes as for Industrial beacons
