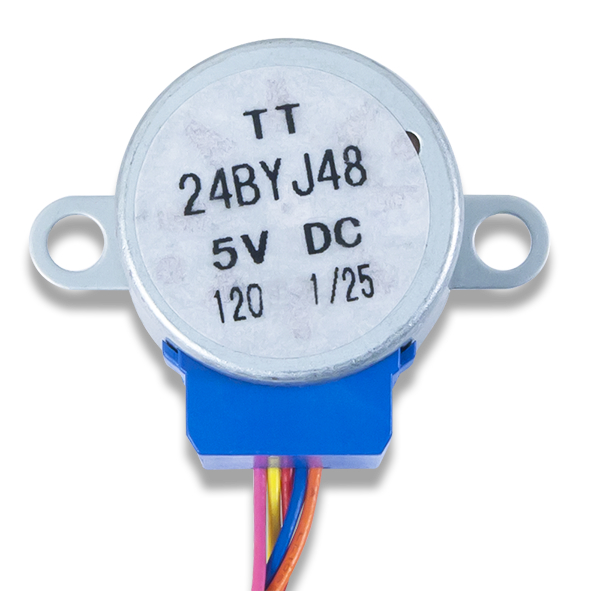

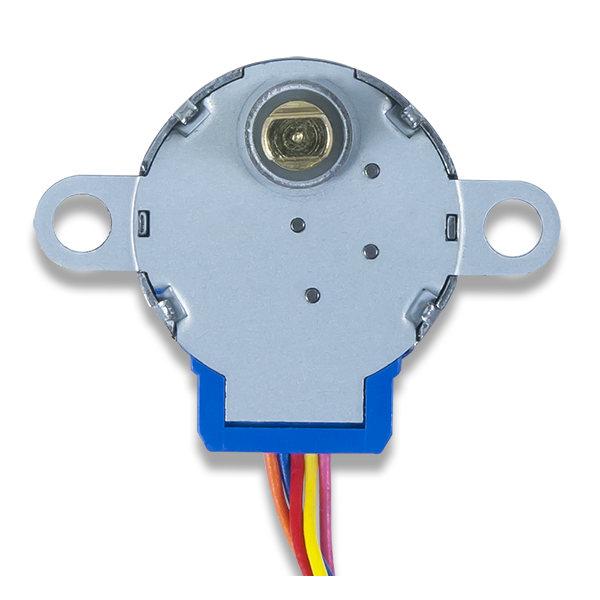

Stepper Motor

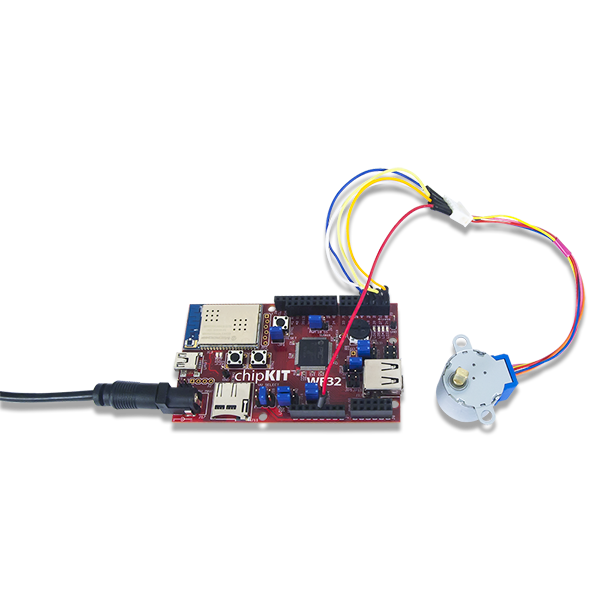

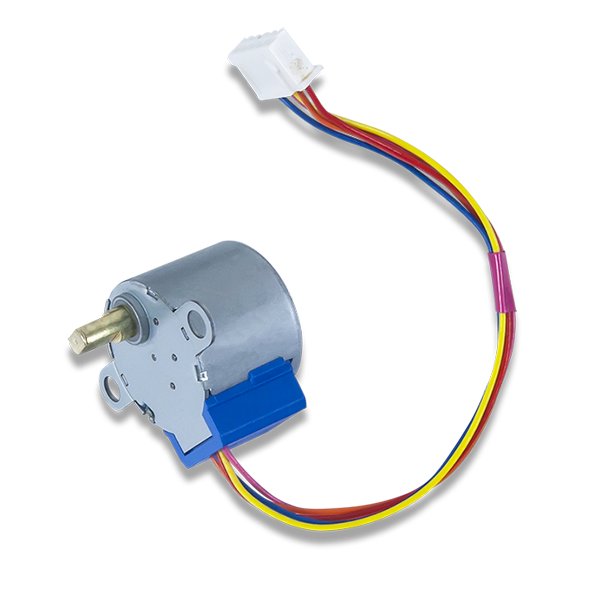

Does your project need a motor with precise positioning, low-speed torque, and accurate speed control? You’re in luck! Already a popular component in our chipKIT Starter Kit, this 4-phase stepper motor divides its rotation down to 64 discrete steps (5.625° per step) and can operate in either unipolar or bipolar mode. Add in small size, good power consumption, and plenty of online resources, and this motor can open up a whole new range of possibilities for the designer.

What is a stepper motor?

Stepper motors induce rotation using electromagnets arranged concentrically around a gear on the motor’s output shaft. As these electromagnets are also toothed, energizing them in the right combination will attract the gear’s teeth and hold the motor in a specific position. They’re not as good at constant, high-speed rotation, but for precision and accuracy they can’t be beat.

Features:

• Number of phase: 4
• Step angle: 5.625°/25
• Operating voltage: DC 5V (terminal voltage)
• Excitation: 1-2 phase excitation
• Winding resistance: 120±10%Ω at 25°C
• Pull-in torque: 200g. cm min, 100pps DC5V
• Stepping Accuracy: 5.625°±7%
• Pull-in rateL 600pps min
• Moderating ratioL 1/25
