Phidgets

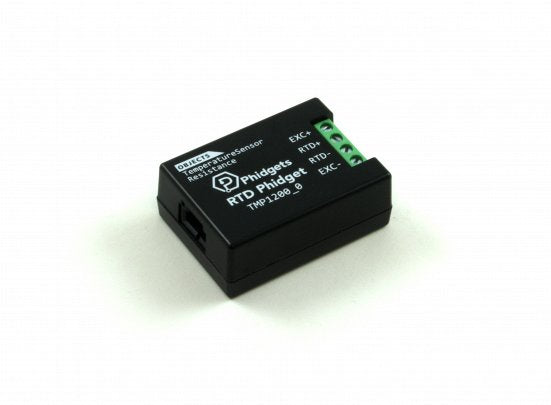

RTD Phidget
SKU: Phidgets-TMP1200_0
₹ 3,459.00
Taxes included.
Shipping calculated at checkout.
Description

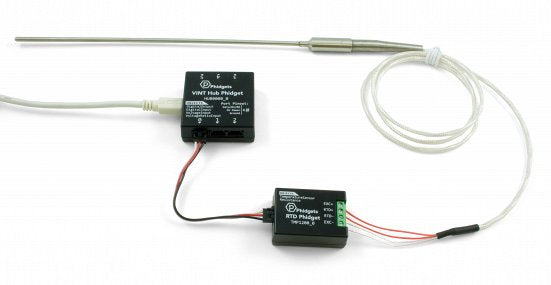

The TMP1200 allows you to precisely measure temperature using RTDs, thermistors, and other resistance-based sensors. A resistance temperature detector measures subtle temperature changes using a resistance of the element made of a pure metal (usually platinum). The resistance value will change in a precise and repeatable way. The RTD Phidget measures these subtle resistance changes, so you can get the most accurate temperature measurements. This Phidget connects to your computer through a VINT Hub.
Features:
- Connect one resistance temperature detector (RTD)
- Select the number of wires (2, 3, or 4) and the RTD type via software
- The adapter does all the math - sampled temperature in degrees Celsius.
- Read thermistors and other resistive sensors - receive the data in ohms
Product Specifications
| Board Properties | |
|---|---|
| Controlled By | VINT |
| Resistance Input | |
| Maximum Measurable Resistance | 50 kΩ |
| RTD Input | |
| Temperature Error Max | 0.2 °C |
| RTD Current Max | 62 μA |
| Sampling Interval Min | 250 ms/sample |
| Sampling Interval Max | 60 s/sample |
| Electrical Properties | |
| Current Consumption Min | * 17 μA |
| Current Consumption Max | * 4 mA |
| Physical Properties | |
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
| Customs Information | |
| Canadian HS Export Code | 8471.80.00 |
| American HTS Import Code | 8471.80.40.00 |
| Country of Origin | CN (China) |
* - Current consumption varies depending on selected data interval. See the graph below for details.
