Raspberry Pi LCD development Kit(RPI)

Description

Note: Raspberry Pi is NOT included.

Overview

An accessories Pack (type A) to be used with Raspberry Pi. It consists of expansion board DVK512, LCD, various modules, and other accessories like wires and cables, etc.

Supported Pi

• Raspberry Pi 1 Model A+
• Raspberry Pi 1 Model B+
• Raspberry Pi 2 Model B

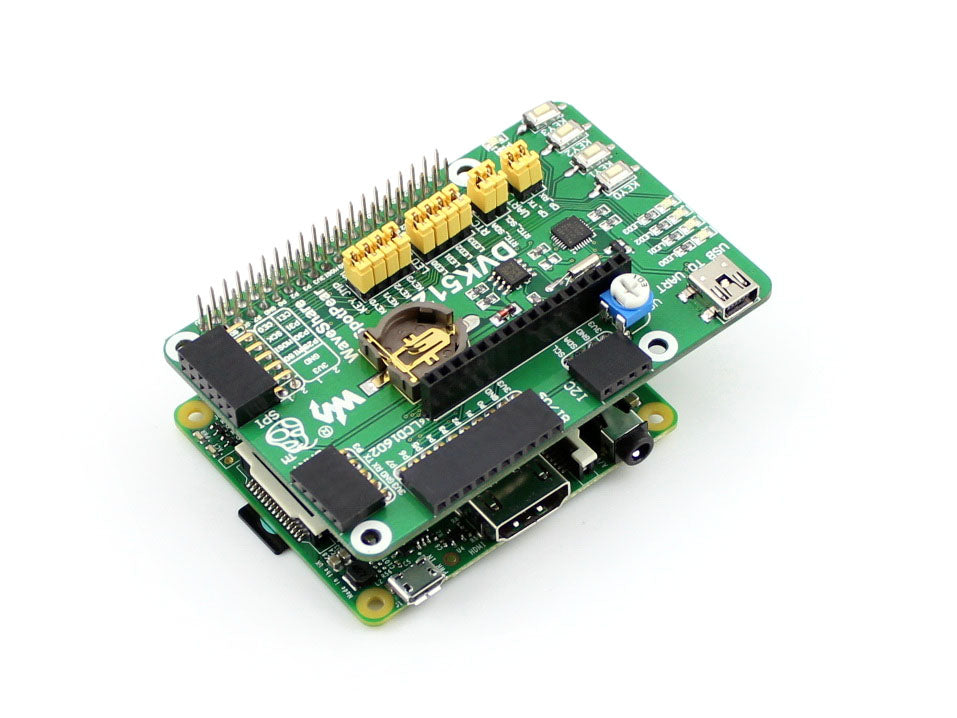

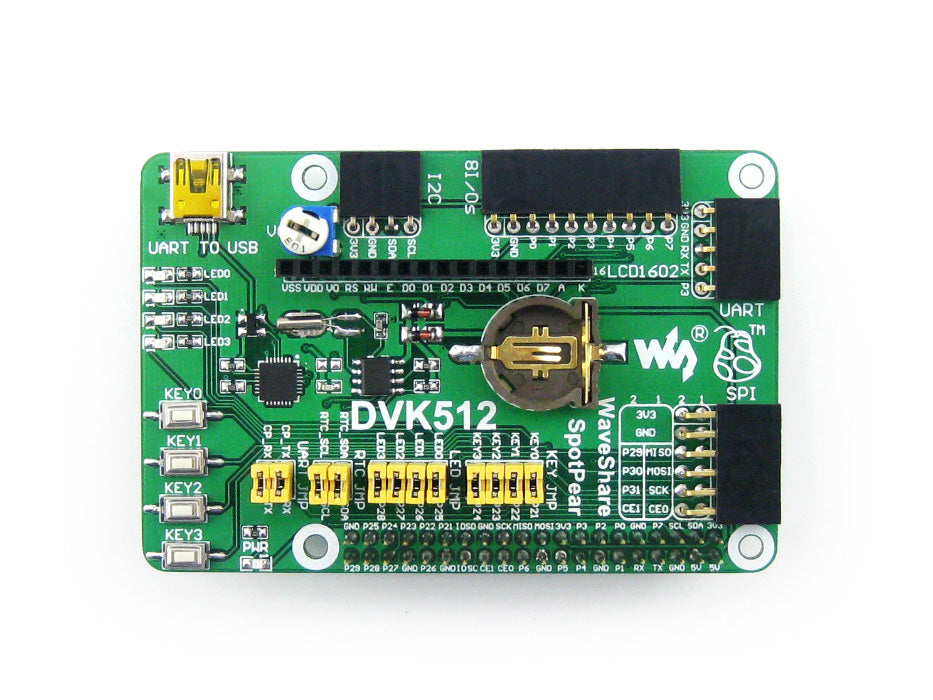

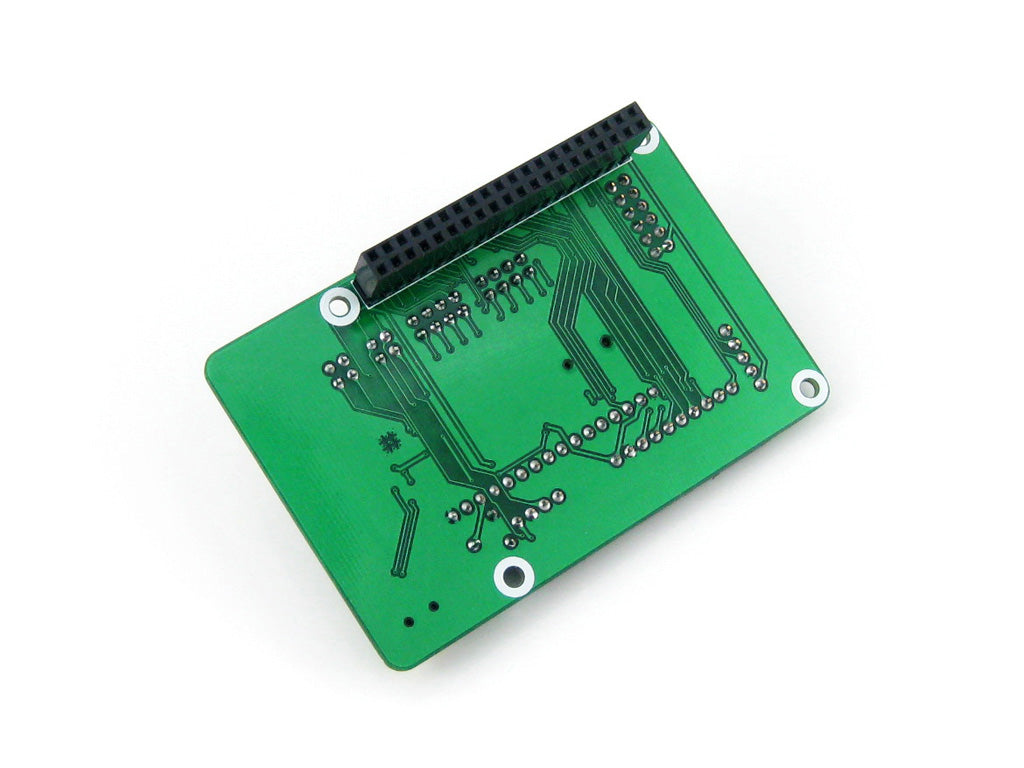

What's on the DVK512

1. Pinheaders for connecting with the RPi
2. UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
3. 8I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
4. SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, L3G4200D Board, etc.
5. I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.

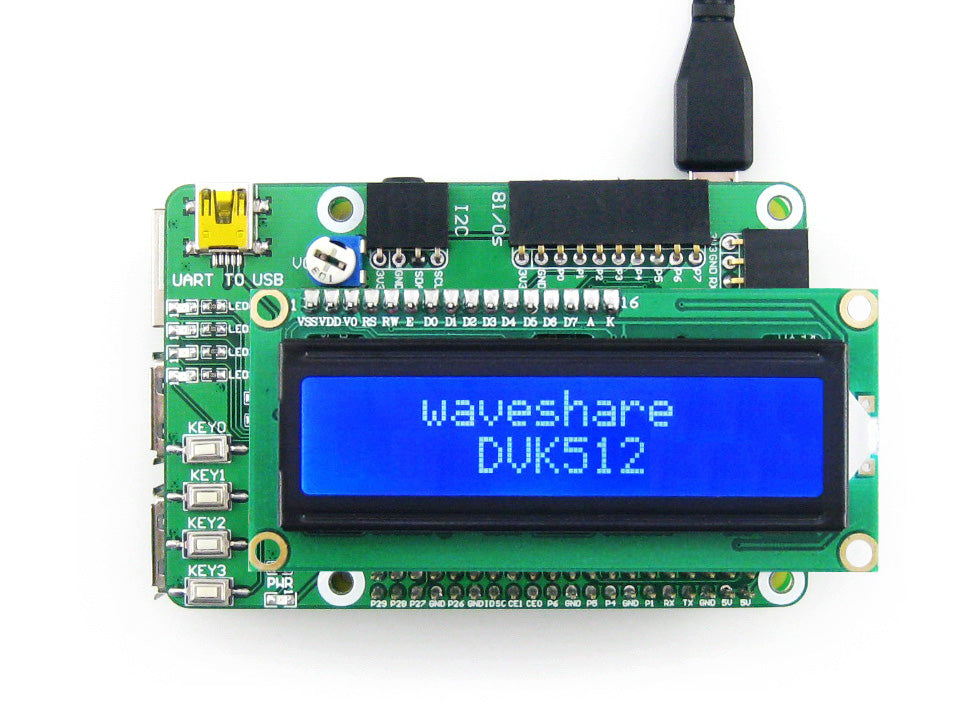

6. Character LCD interface: for connecting character LCDs like LCD1602
7. USB connector: USB TO UART, supported by onboard converter CP2102
8. Power indicator
9. User LEDs
10. User Keys
11. Potentiometer: for LCD1602 contrast adjustment
12. RTC battery holder
13. PCF8563: onboard RTC chip
14. 32.768K crystal: RTC crystal
15. CP2102: onboard USB TO UART chip, for debugging
16. CP2102 jumper
17. RTC jumper
18. User LEDs jumper
19. User Keys jumper

For jumpers above:

• short the jumper to connect to I/Os used in example code
• open the jumper to connect to other custom pins via jumper wires

Development Resources

The User Guide CD includes development resources listed as follow:

• User manual
• Schematic (PDF)
• Examples in C (Linux API source code)
• Development documentations (Raspbian configuration, C library installation)
• Raspbian (the configured system image for RPi)

Examples in C:

• LED (I/Os)
• Logic Level Converter (I/Os)
• JOYSTICK (I/Os)
• Key (I/Os)
• BUZZER (PWM)
• DS18B20 (1-WIRE)
• IRM (I/Os)
• LCD1602 (I/Os)
• PCF8563 (RTC)
• PCF8591 (AD/DA)
• LSM303DLHC (I2C)
• L3G4200D (SPI)
• CP2102 (UART)
• GPS (UART)

Download: www.waveshare.com/wiki/RPi_Acce_A

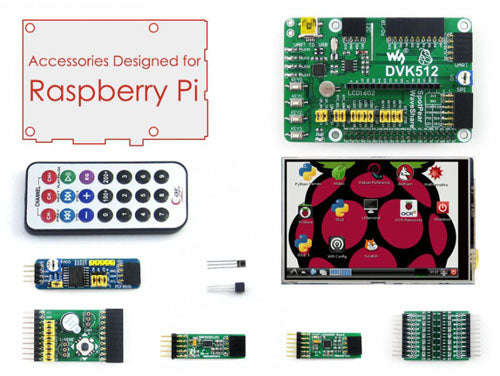

Package Contains

1. DVK512 x 1
2. 3.5inch RPi LCD (A) × 1
3. PCF8591 AD DA Board x 1
4. L3G4200D Board x 1
5. LSM303DLHC Board x 1
6. Mix Board x 1
7. Logic Level Converter x 1
8. Infrared Remote Controller x 1
9. LFN0038K (Infrared Receiver) x 1
10. DS18B20 x 1
11. USB type A plug to mini-B plug cable x 1
12. 4-pin 2-pin wires pack x 1
13. RPi screws pack (4pcs) x 1
14. User guide CD x 1

1 2 3 4 5 6 7 8 9 10 11 12 13 14

Optional Items

You may also need :

• Micro SD Card : 8G

The following items can also be used with this product, drivers provided :

• Character LCD : LCD1602
• GPS module : UART GPS
