4x Isolated Solid State Relay Phidget
SKU: Phidgets-REL1100_0
₹ 3,299.00
Taxes included.
Shipping calculated at checkout.
Description

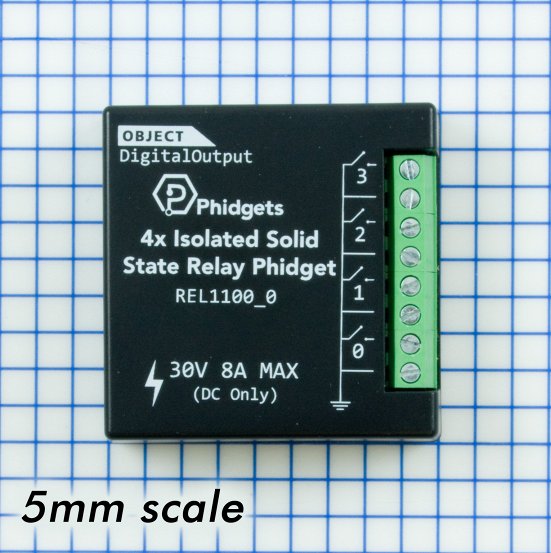

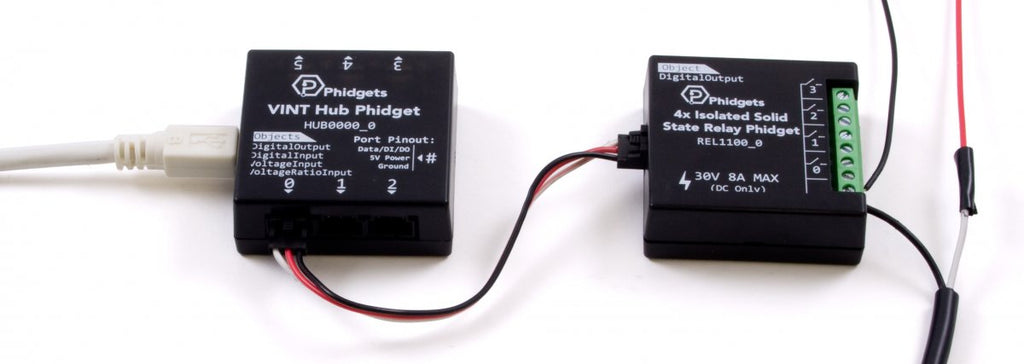

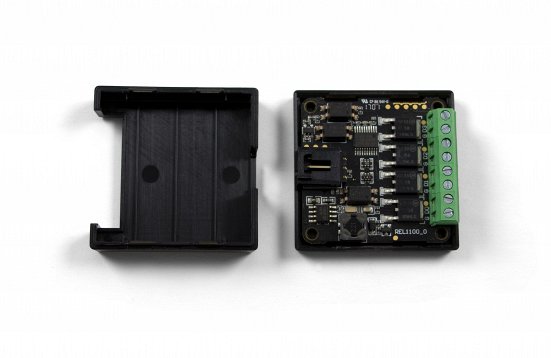

The REL1100 is a PWM-enabled solid state relay. The relay is great for controlling LED strips, DC motors, power relays, fans, and other small circuits. This Phidget connects to your computer through a VINT Hub.
Features:
- Four Relays
- Control power for a circuit or device up to a maximum of 30V and 8A
- Pulse Width Modulation - rather than simply switching on or off, you can select a percentage duty cycle to limit the circuit power to a specific level.
- Low-Side Switching - Each solid state relay switches an external circuit to ground when enabled
Technical Details:
- Quiet, quick and Long-lasting - Solid-state relays switch silently and quickly, and last much longer than mechanical relays.
- Isolation - A Power surge on the load side of the relay will not damage the VINT Hub or computer
- Failsafe Protection - Set the device to turn off automatically if your program becomes unresponsive
Product Specifications
| Board Properties | |
|---|---|
| Controlled By | VINT |
| Electrical Properties | |
| Current Consumption Min | 3.5 mA |
| Current Consumption Max | 4 mA |
| Load Voltage Max (DC) | 30 V DC |
| Load Current Max (DC) | 8 A |
| Switching Power Max (Real) | * 240 W |
| Relay Properties | |
| Number of Relays | 4 |
| Contact Resistance Max | 35 mΩ |
| Turn-off Time Max | 100 ns |
| Switch Type | SPST Normally Open MOSFET |
| Turn-on Time Max | 100 ns |
| PWM Resolution | 0.1 % |
| PWM Frequency Max | ** 20 kHz |
| PWM Frequency Min | ** 100 Hz |
| Physical Properties | |
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
| Customs Information | |
| Canadian HS Export Code | 8536.41.00 |
| American HTS Import Code | 8536.41.00.50 |
| Country of Origin | CN (China) |
* Note: At switching powers powers higher than 50W, external cooling may be required. For high power applications, a hockey-puck style SSR may be more appropriate. See the "Other Relays" tab for more details.
** - PWM frequency can only be adjusted on firmware version 120 or newer. You can upgrade firmware by double-clicking on a device in the Phidget Control panel after updating to the latest version of our drivers.
