Pololu Ball Caster with 3/8" Plastic Ball
₹ 349.00
Skip to product information
2 left
POLOLU

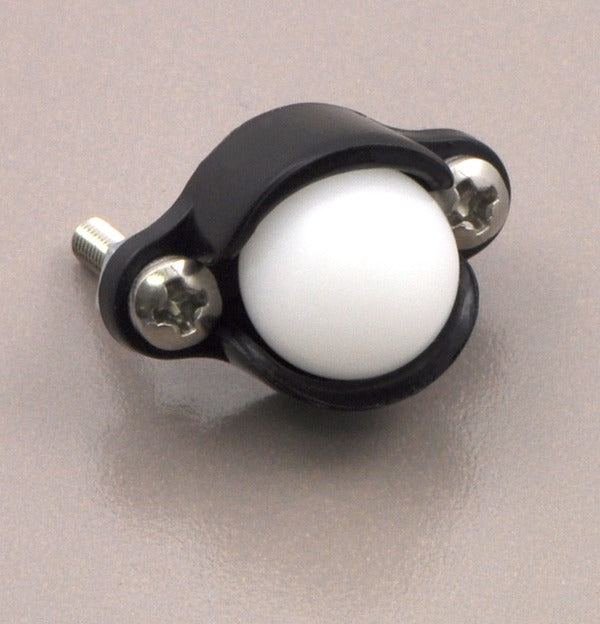

Pololu Ball Caster with 3/8" Plastic Ball
Pololu #950
₹ 349.00
Taxes included.
Shipping calculated at checkout.
Description

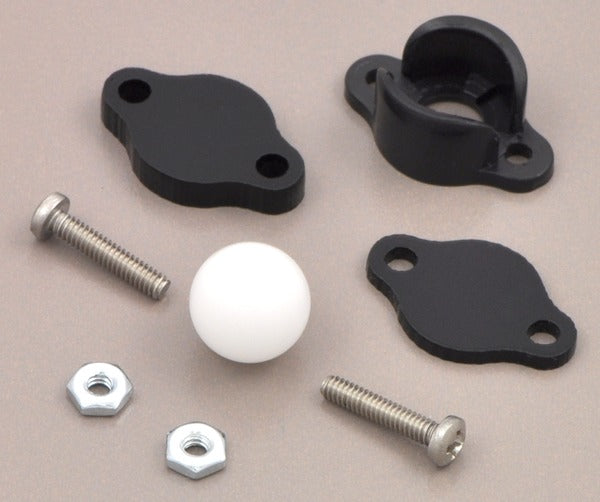

This ball caster kit includes a black ABS housing, a 1/2" diameter plastic ball, two spacers (1/16" and 1/8" thick), and two #2 screw sets. The total height of the ball caster, 0.53", can be increased to about 0.7" using the included spacers. The two included #2 screws can be used to mount the ball caster to your chassis (the distance between the screw holes is 0.58").
Note that our ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will probably keep it from rolling well.
|
|
Comparison of Pololu ball casters
|
Pololu ball caster ball diameter |
height with no spacers |
distance between screw holes |
weight with no spacers or screws |
|
0.40" |
0.53" |
0.03 oz |
|
|
3/8" metal-ball |
0.40" |
0.53" |
0.14 oz |
|
0.53" |
0.58" |
0.07 oz |
|
|
0.53" |
0.58" |
0.32 oz |
|
|
3/4" plastic-ball |
0.91" |
0.24" |
0.25 oz |
|
3/4" metal-ball |
0.83" |
0.61" |
1.05 oz |
|
1" plastic-ball |
1.10" |
0.70" |
0.36 oz |
