Description

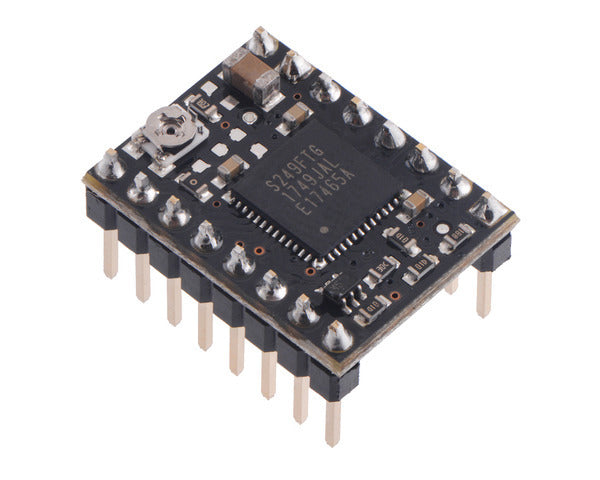

This version of our TB67S249FTG Stepper Motor Driver Compact Carrier ships with male header pins installed, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. The TB67S249FTG has a wide operating voltage range of 10 V to 47 V, and our carrier board can deliver approximately 1.6 A per phase continuously without a heat sink or forced air flow (up to 4.5 A peak). Please see the TB67S249FTG Stepper Motor Driver Compact Carrier product page for more information about the driver.
Dimensions

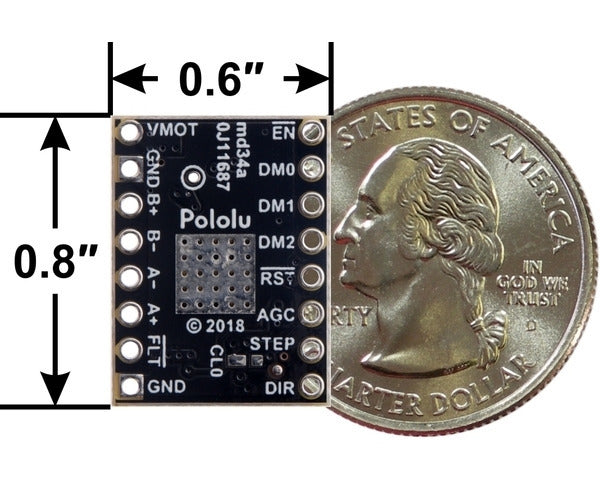

| Size: | 0.6″ × 0.8″ |
|---|
General specifications
| Motor driver: | TB67S249FTG |
|---|---|
| Minimum operating voltage: | 10 V |
| Maximum operating voltage: | 47 V |
| Continuous current per phase: | 1.6 A |
| Maximum current per phase: | 4.5 A |
| Minimum logic voltage: | 2 V |
| Maximum logic voltage: | 5.5 V |
| Microstep resolutions: | full, non-circular 1/2, 1/2, 1/4, 1/8, 1/16, 1/32 |
| Current limit control: | potentiometer |
| Reverse voltage protection?: | N |
| Header pins soldered?: | Y |
Identifying markings

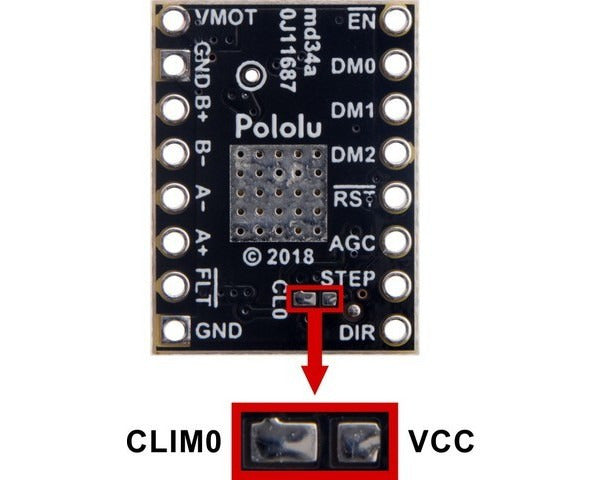

| PCB dev codes: | md34a |
|---|---|
| Other PCB markings: | 0J11687 |
