POLOLU
DRV8825 Stepper Motor Driver Carrier, High Current (Bulk, Header Pins Soldered)
SKU: Pololu-2987
₹ 2,399.00
Taxes included.
Shipping calculated at checkout.
Description
This is a bulk-packaged version of DRV8825 Stepper Motor Driver Carrier that ships with male header pins installed. Please see that product’s page for more information about the driver. This version requires a minimum order quantity of five units and is intended for customers interested in higher volumes at lower unit costs. We will manufacture these to order and generally expect orders of up to a few hundred units to ship within a few days.

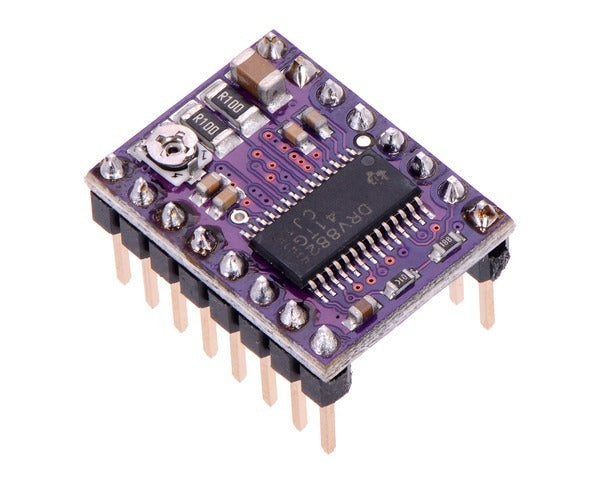

This is a bulk-packaged version of our DRV8825 Stepper Motor Driver Carrier that ships with 0.1″-pitch male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard.

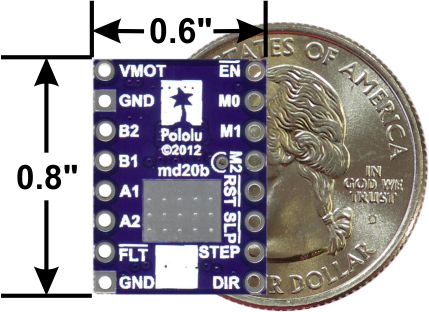

Dimensions
| Size: | 0.6″ × 0.8″ |
|---|
General specifications
| Minimum operating voltage: | 8.2 V |
|---|---|
| Maximum operating voltage: | 45 V |
| Continuous current per phase: | 1.5 A1 |
| Maximum current per phase: | 2.2 A2 |
| Minimum logic voltage: | 2.5 V3 |
| Maximum logic voltage: | 5.25 V3 |
| Microstep resolutions: | full, 1/2, 1/4, 1/8, 1/16, and 1/32 |
| Reverse voltage protection?: | N |
| Bulk packaged?: | Y |
| Header pins soldered?: | Y |
Notes
1. Without a heat sink or forced air flow.
2. With sufficient additional cooling.
3. This driver works with 2.5 V to 5.25 V logic. It does not take an external logic power supply.
