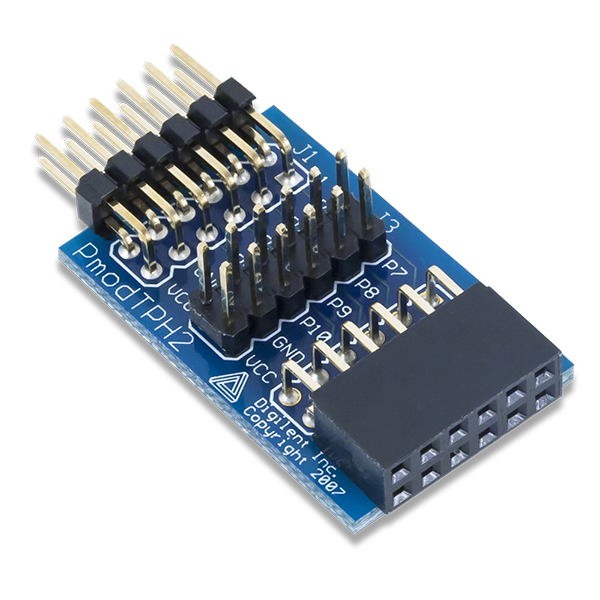

Pmod TPH2: 12-pin Test Point Header

Description

The Pmod TPH2 offers 12 external pin headers so that users can easily test the GPIO signals passing through each of the pins.

Features:

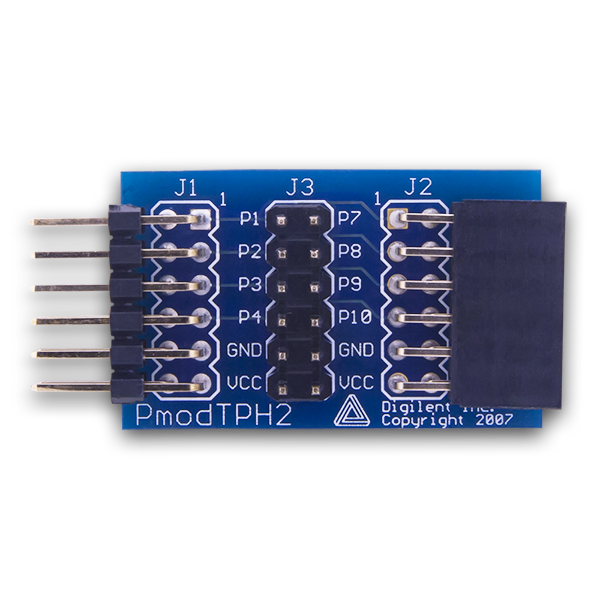

• 12 external test point headers

• Easily access and test signals passing through

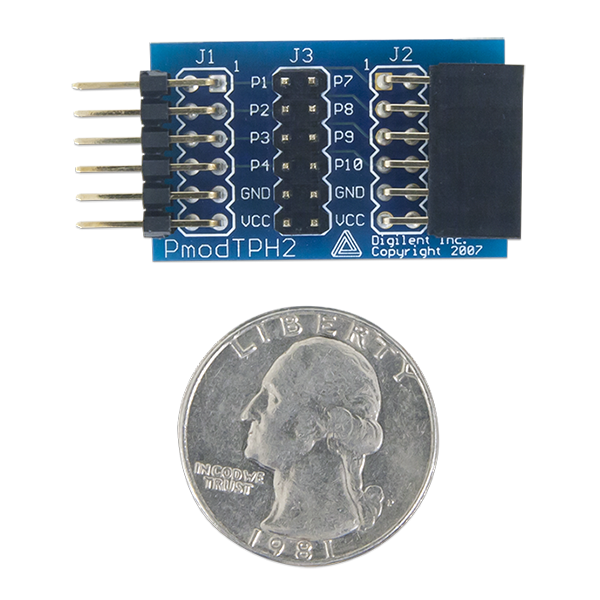

• Small PCB size for flexible designs 1.3“ × 0.8” (3.3 cm × 2.0 cm)

• 12-pin Pmod connector with GPIO interface

• Follows Digilent Pmod Interface Specification Type 1
