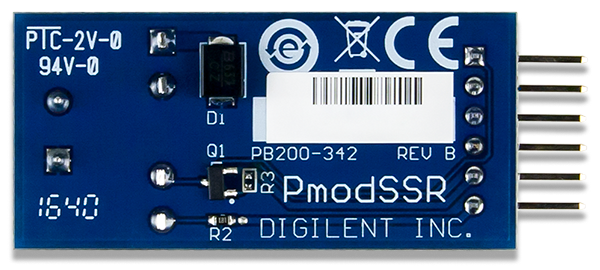

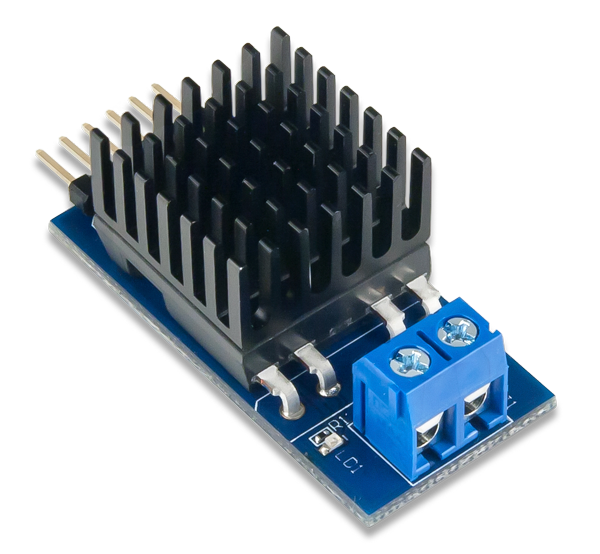

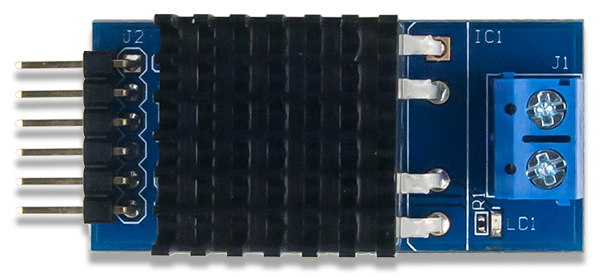

Pmod SSR: Solid State Relay Electronic Switch

Description

The Pmod SSR is a solid state relay that features IXYS' CPC1908J. The Pmod SSR uses a switch controlled by a single GPIO pin and is rated to block up to 48 Volts and switch up to 6 Amps (rms) continuous current.

Features:

• 0-48 V blocking voltage

• Can switch up to 6 A_rms continuous current

• 2500 V input/output isolation

• Low on resistance with fast turn on/off

• Onboard LED to indicate on/off state
• Onboard terminal block for easy wire connection

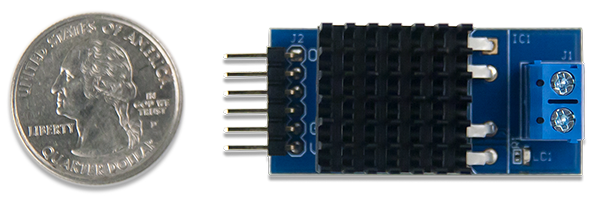

• Small PCB size for flexible designs 1.7" × 0.8" (4.3 cm × 2.0 cm)
• 6-pin Pmod Connector with GPIO interface

• Follows the Digilent Pmod Interface Specification Type 1

• Libraries and example code available in resource center

What's included

• One Pmod SSR
• Digilent cardboard packaging with protective foam
