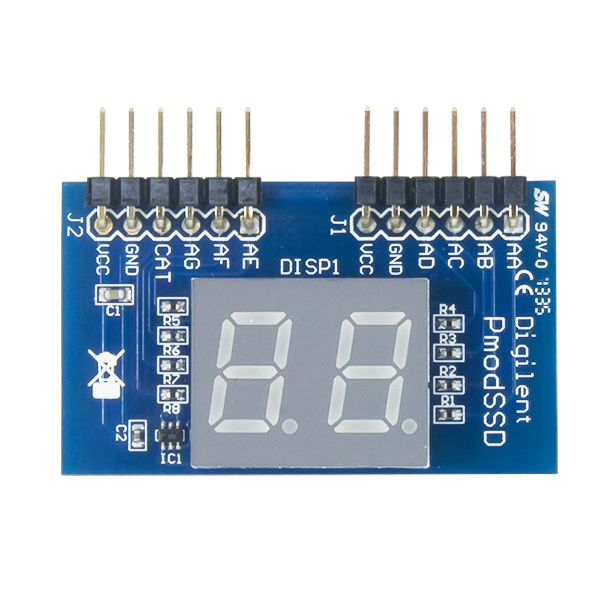

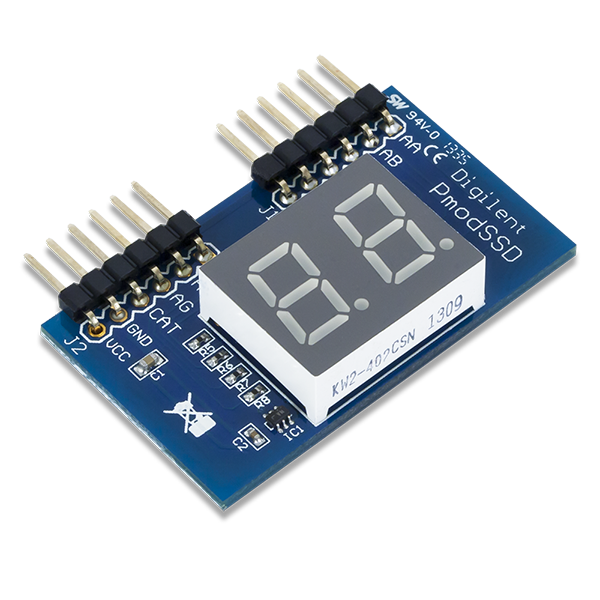

Pmod SSD: Seven-segment Display

Description

The Pmod SSD is a two-digit seven-segment display. Users can toggle through GPIO signals which digit is currently on at a rate of 50 Hz or greater to achieve persistence-of-vision to give the effect of both digits being lit up simultaneously.

Note:

The Pmod SSD has two separate 6-pin headers.

Features:

• Two-digit high brightness seven-segment display

• Easily view a counter or timer
• Common Cathode configuration

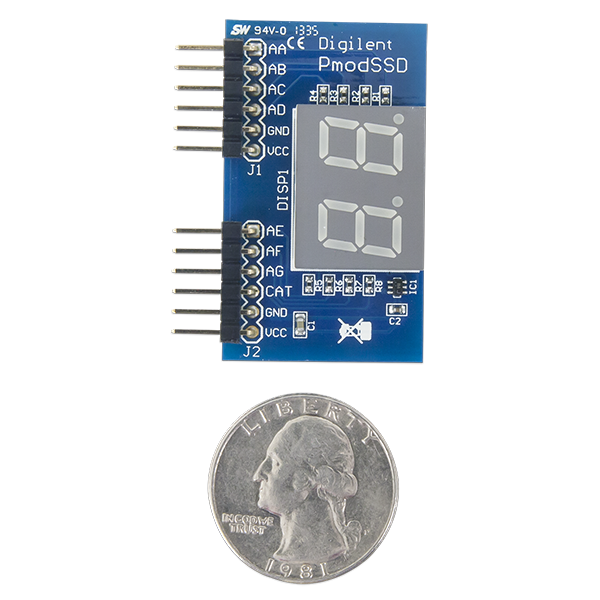

• Small PCB size for flexible designs 1.0“ × 1.7” (2.5 cm × 4.3 cm)
• Two 6-pin Pmod connectors with GPIO interfaces
• Follows Digilent Pmod Interface Specification Type 1

What's Included:

• Pmod SSD
• Custom antistatic Pmod packaging
