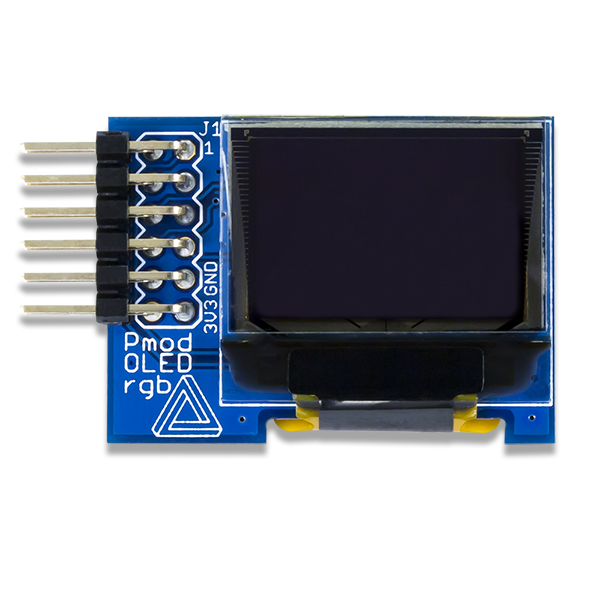

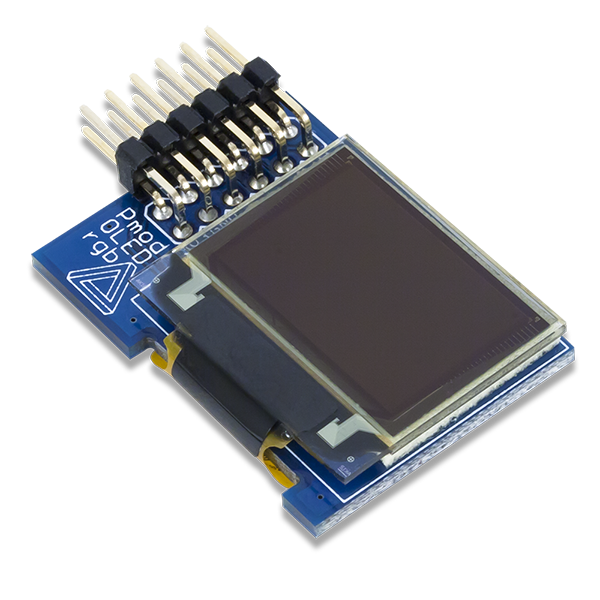

Pmod OLEDrgb: 96 x 64 RGB OLED Display with 16-bit color resolution

Description

The Pmod OLEDrgb features a 96 x 64 pixel RGB OLED display that is capable of 16-bit color resolution. As a graphical display, users may show off graphs, full-color pictures, text, and anything else they want to see by communicating with it through a standard SPI interface. This module uses the ug-9664hddag01 display from Univision Technology Inc. and Solomon Systech SSD1331 display controller.

Features:

• 96×64 pixel RGB OLED screen

• 0.8“ x 0.5” graphical display

• 16-bit color resolution

• Two low-power display shutdown modes

• Small PCB size for flexible designs (1.4“ x 1.0”)

• 12-pin Pmod connector with SPI interface

• Library and example code available in resource center

What's Included:

• Pmod OLEDrgb
• Custom antistatic Pmod packaging
