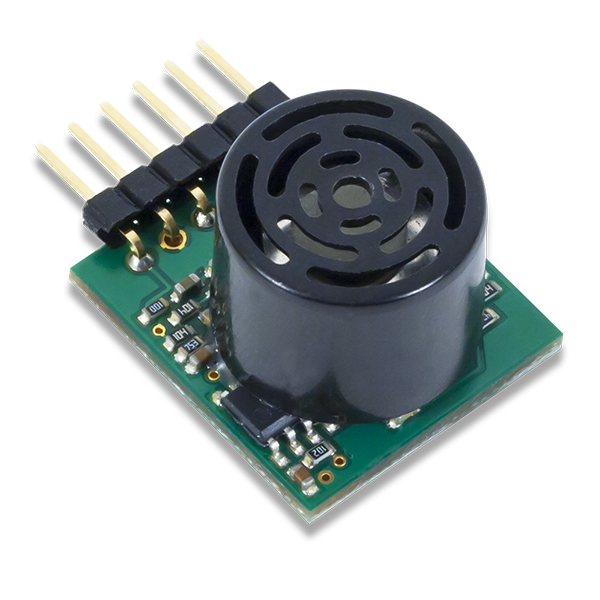

Pmod MAXSONAR: Maxbotix Ultrasonic Range Finder

Description

The Pmod MAXSONAR is a single-transducer ultrasonic range finder that uses the MaxBotix^® LV-MaxSonar^®-EZ1™. Users can measure how far away an object is with an accuracy within 1 inch to over 20 feet away. Information is sent in a variety of ways including UART, PWM, and analog signals.

Features:

• Ultrasonic range finder with effective detection range of 6 in - 255 in (15 cm - 648 cm)

• Detect object distance with 1.0 in (2.54 cm) resolution up to 20 ft away

• Continuous measurement (free run) operation

• Three options for sending range data: UART, analog and PWM

• Small PCB size for flexible designs 0.9 in × 0.8 in (2.3 cm × 2.0 cm)

• 6-pin Pmod connector with UART interface

• Library and example code available in resource center

What's Included:

• Pmod MAXSONAR
• Custom antistatic Pmod packaging
