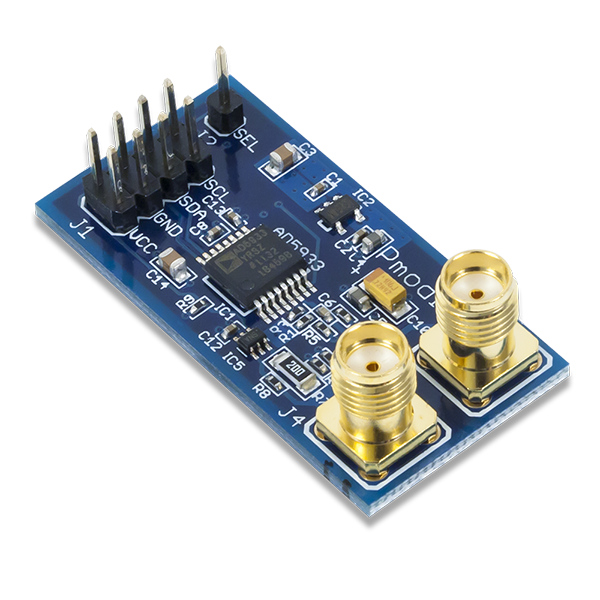

Pmod IA: Impedance Analyzer

Description

The Digilent Pmod IA provides users with a way to measure the electrical impedance of a circuit. It is powered by the Analog Devices AD5933, a high precision impedance converter system solution that combines an on-board frequency generator with a 12-bit, 1 MSPS, analog-to-digital converter (ADC). The two SMA connectors provide easy access to the AC voltage output and the incoming frequency response, allowing users to measure impedance ranging from 100Ω - 10MΩ. By communicating with the Pmod through the I²C interface, users may program the Pmod to perform a frequency sweep across a circuit in order to calculate the impedance.

Features:

• Impedance analyzer with 12-bit impedance converter

• Measure impedance values ranging from 100? to 10 M?.

• Programmable frequency sweep

• Programmable gain amplifier

• Optional external clock generation

• Small PCB size for flexible designs 1.6 in × 0.8 in (4.1 cm × 2.0 cm)

• 2×4-pin connector with I²C interface

• Follows Digilent Interface Specification

• Library and example code available in resource center

What's Included:

• Pmod IA
• Custom antistatic Pmod packaging
