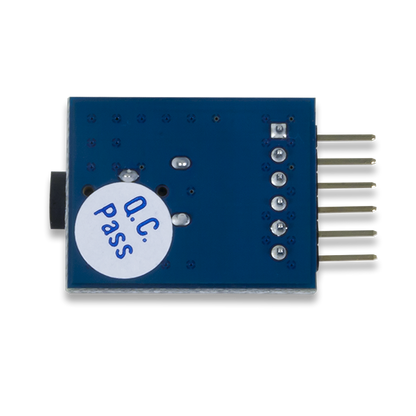

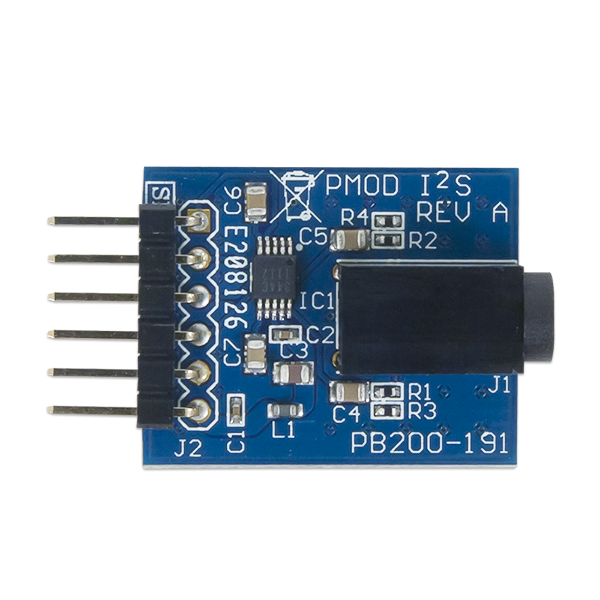

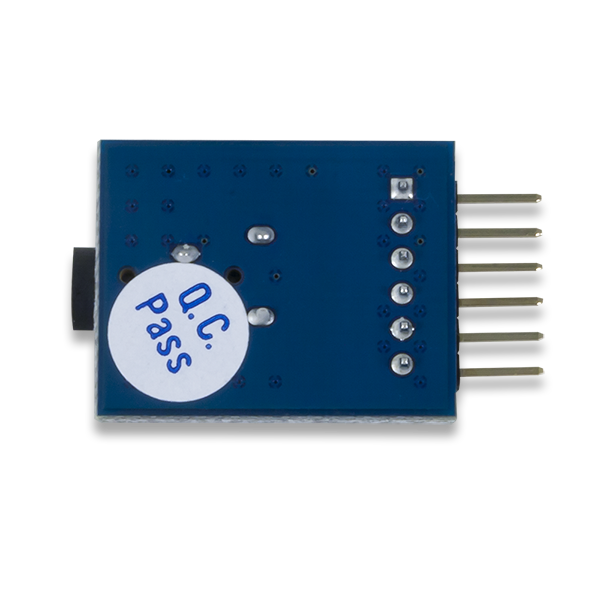

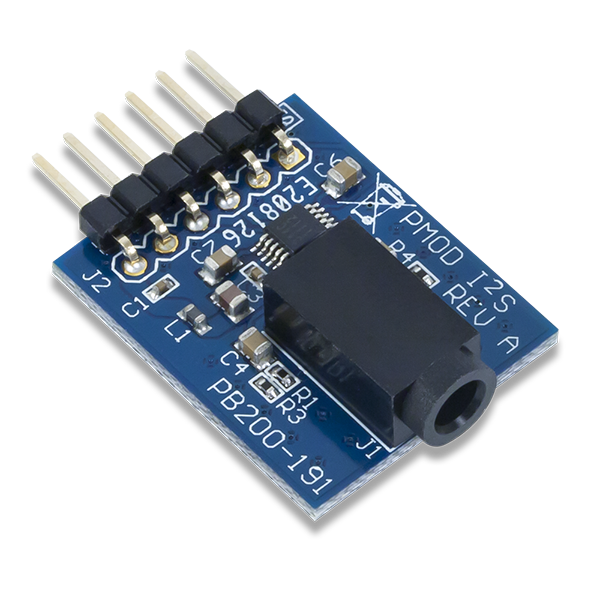

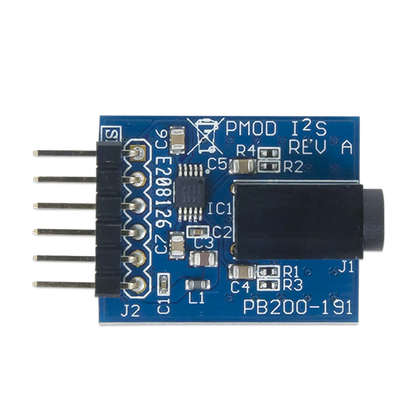

Pmod I2S: Stereo Audio Output

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

This product has been discontinued by manufacturer.

The Pmod I2S utilizes a Cirrus Logic CS4344 Stereo D/A converter to take digital audio data and output the corresponding analog signal through a standard stereo headphone jack. It is designed to work at standard audio rates, although the master clock can run anywhere from 512 kHz to 50 MHz.

Features:

• Stereo 24-bit D/A converter

• Output converted audio signals through standard headphone jack

• Supports all major audio data interface formats

• Accepts 16-24 bits of audio data

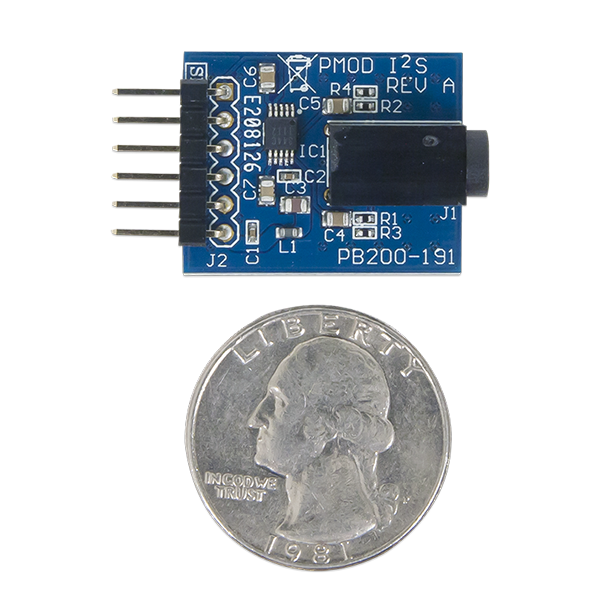

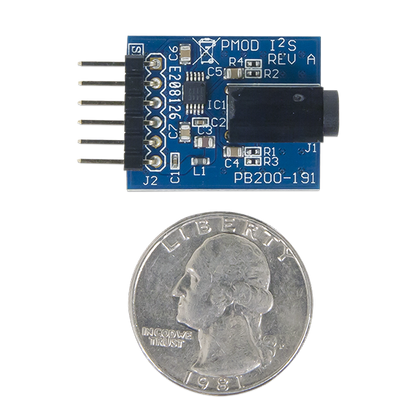

• Small PCB size for flexible designs 1.0 in × 0.8 in (2.5 cm × 2.0 cm)

• 6-pin Pmod connector with GPIO interface

What's Included:

• Pmod I2S
• Custom antistatic Pmod packaging
