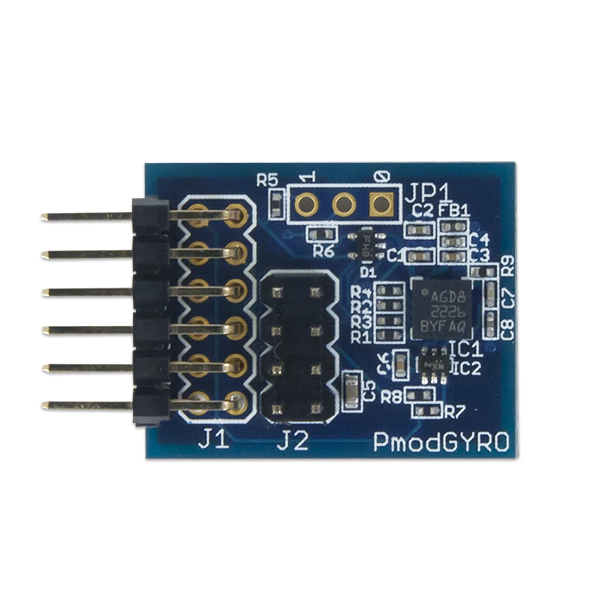

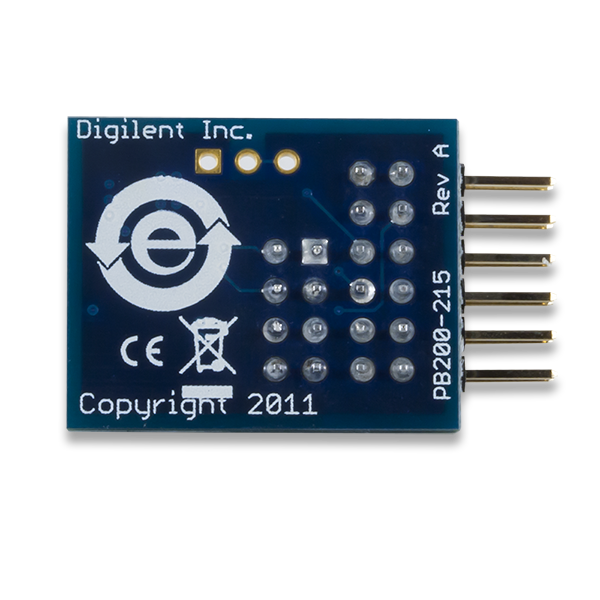

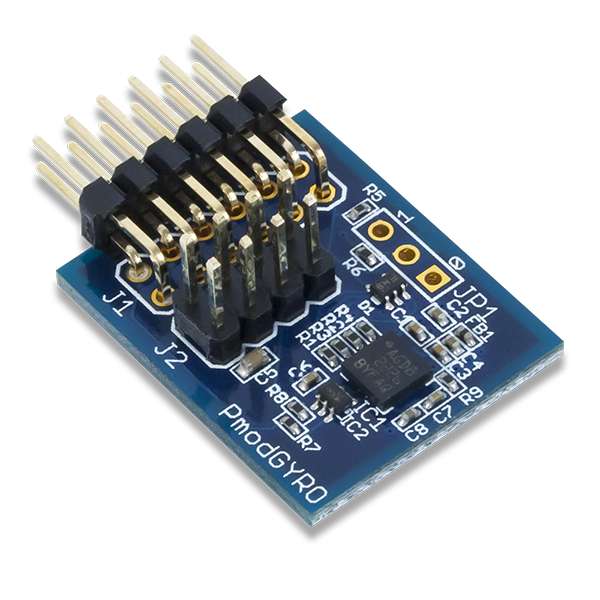

Pmod GYRO: 3-axis Digital Gyroscope

The Pmod GYRO is a 3-axis gyroscope powered by the STMicroelectronics L3G4200D. By communicating with the chip through SPI or I²C, users may configure the module to report angular momentum at a resolution of up to 2000 dps at an output rate up to 800Hz.

Features:

• 3-axis MEMS digital gyroscope with high shock survivability

• Get angular velocity data with user selectable resolution (250/500/2000dps)

• Two customizable interrupt pins

• User configurable signal filtering

• Power-down and Sleep modes

• Small PCB size for flexible designs 1.0 in × 0.8 in (2.5 cm × 2.0 cm)

• 12-pin Pmod connector with SPI interface and additional I²C interface

• Library and example code available in resource center

What's Included:

• Pmod GYRO
• Custom antistatic Pmod packaging

Support Materials:

Datasheet

Schematics (PDF)

For all other material:

Resource Center
