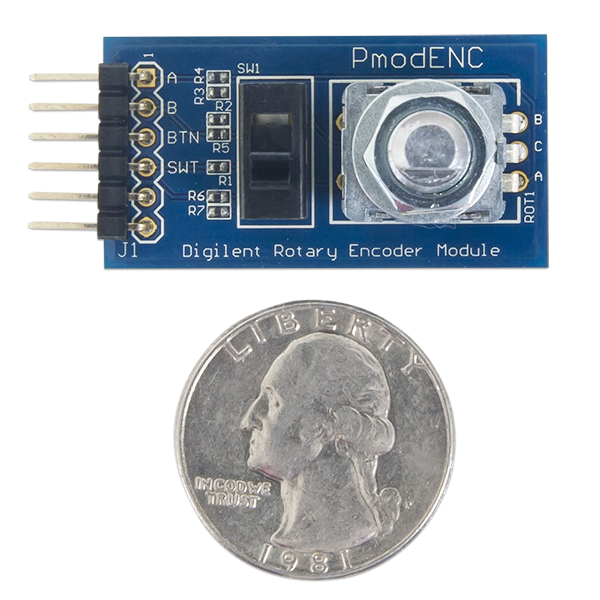

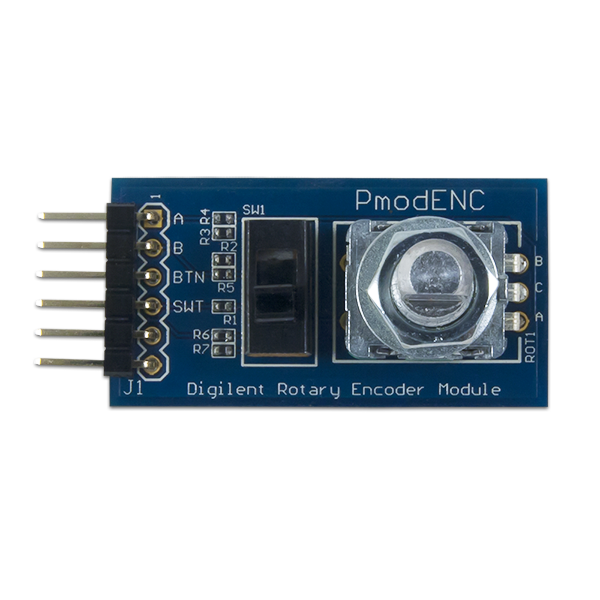

Pmod ENC: Rotary Encoder

Description

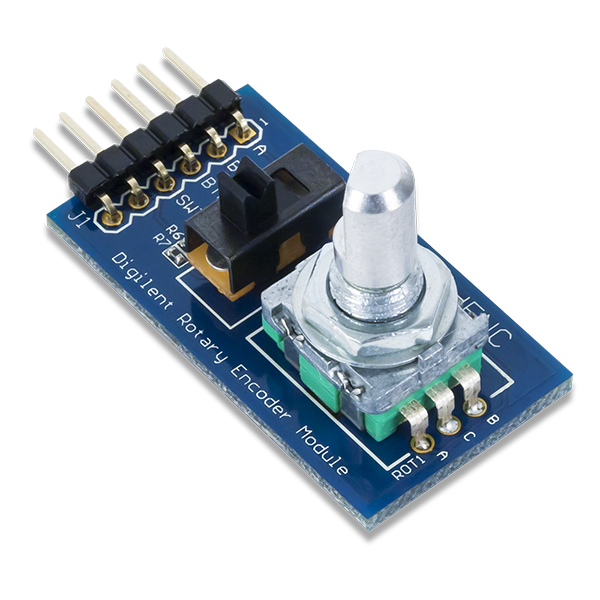

The Pmod ENC features a rotary shaft encoder with an integral push-button to provide multiple types of outputs such as a way for users to quickly switch between multiple choices shown on a screen or predefined motor speeds. The module also includes a sliding switch that is commonly used as an on/off output. An encoder is commonly used in freely rotating volume knobs to detect how many "clicks" a knob has been rotated.

Features:

• Rotary push-button shaft encoder

• Add multiple types of user input to host board or project

• Additional static slide switch

• Small PCB size for flexible designs 1.5 in × 0.8 in (3.8 cm × 2.0 cm)

• 6-pin Pmod connector with GPIO interface

• Follows Digilent Pmod Interface Specification Type 1

• Library and example code available in resource center

What's Included:

• Pmod ENC
• Custom antistatic Pmod packaging
