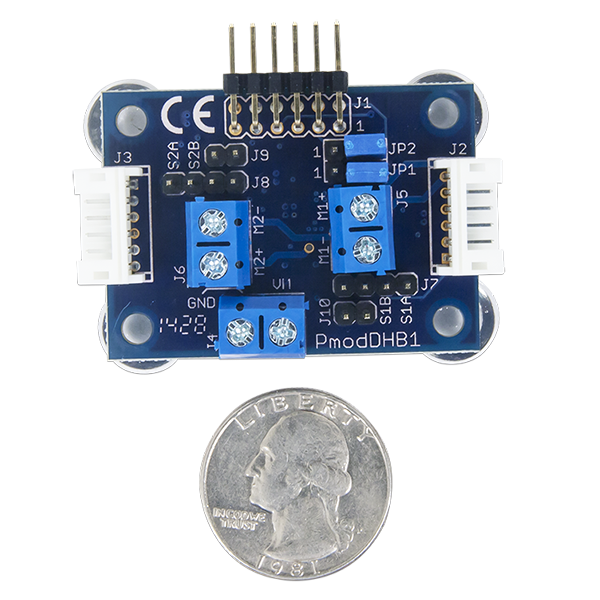

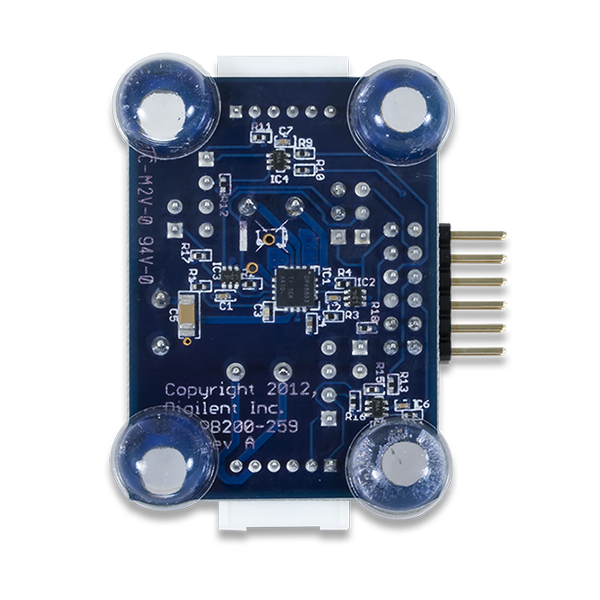

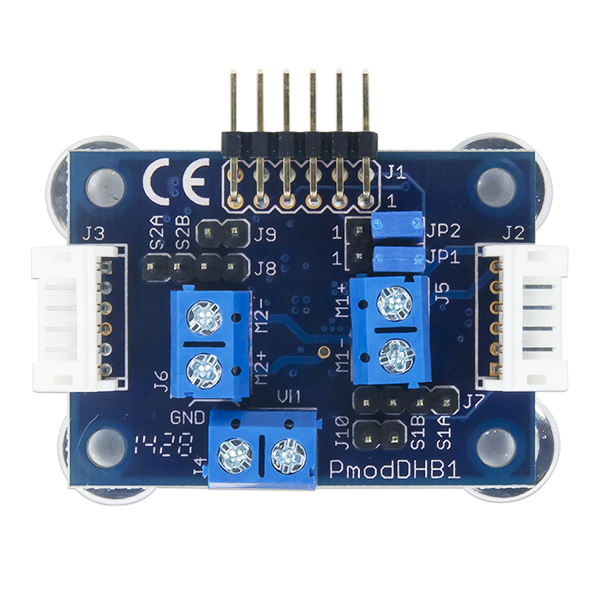

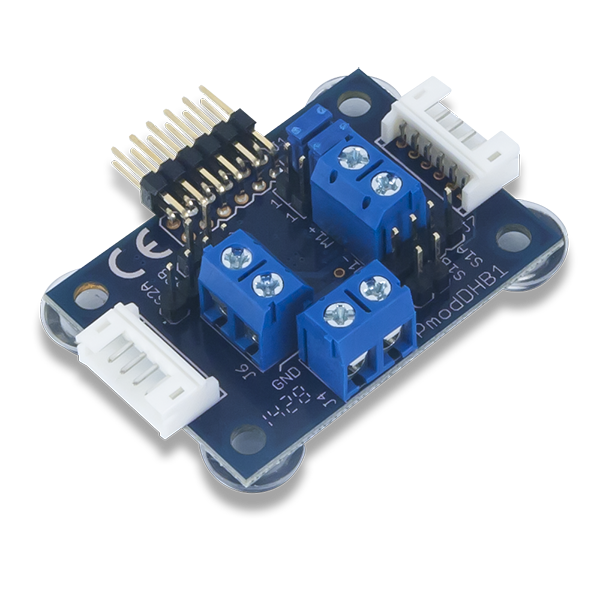

Pmod DHB1: Dual H-bridge

Description

The Pmod DHB1 uses the Texas Instruments^® DRV8833 dual H-Bridge motor driver chip to drive two DC motors or a single stepper motor. Each H-Bridge can be driven by GPIO signals.

Features:

• Dual H-Bridge capable of 1.5A RMS

• Two quadrature encoder channels for motor feedback

• Two JST 6-pin ports for connection to Digilent motor/gearbox

• Over-current protection

• Recommended 10.8 V max motor voltage

• Logic input voltage range of 2.5 V to 5 V

• Small PCB size for flexible designs 1.3“ × 1.8” (3.3 cm × 4.6 cm)

• Follows Digilent Pmod Interface Specification Type 5

What's Included:

• Pmod DHB1
• Custom antistatic Pmod packaging
