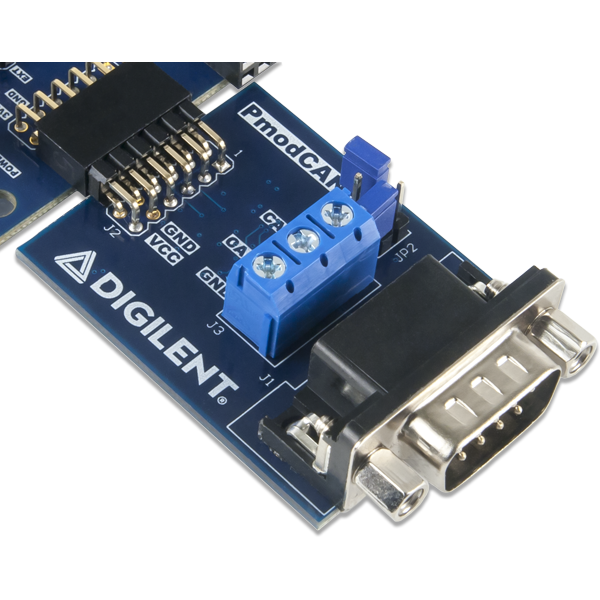

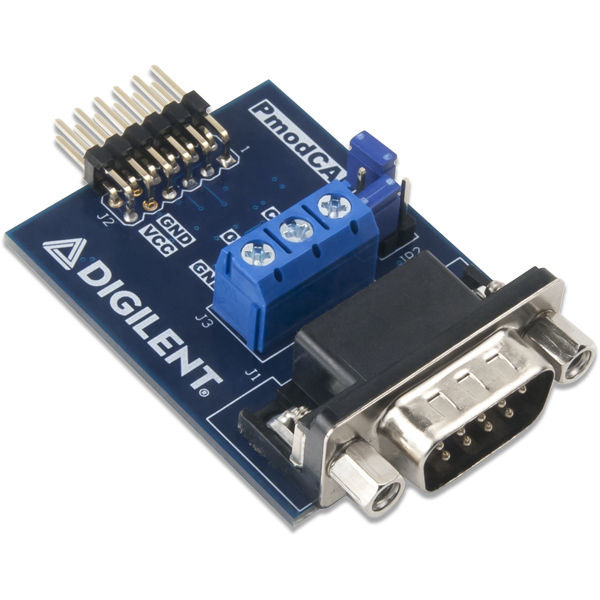

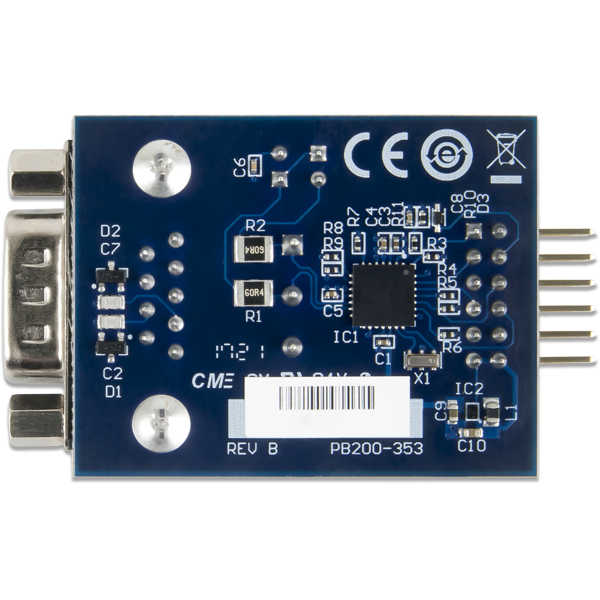

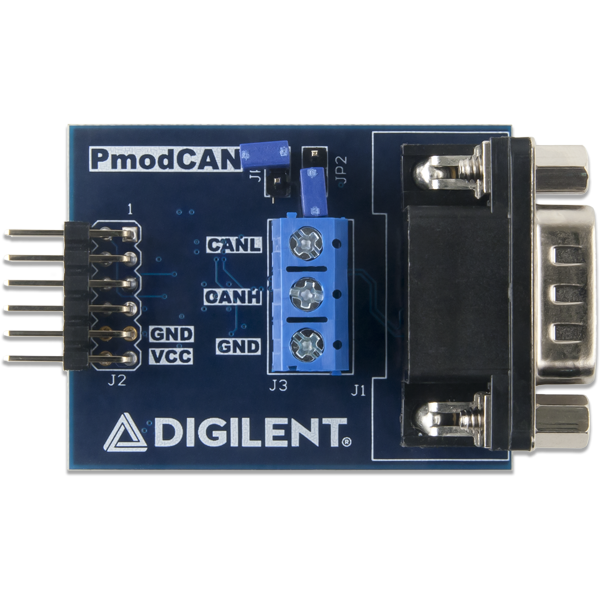

Pmod CAN: CAN 2.0B Controller with Integrated Transceiver

Description

The Pmod CAN is a CAN 2.0B controller with an integrated transceiver. The embedded Microchip MCP25625 chip connects directly to the physical CAN bus and meets automotive requirements for high-speed (1 Mb/s), low quiescent current, electromagnetic compatibility, and electrostatic discharge.

Features:

Follows the Digilent Pmod Interface Specification 1.1.0 type 2A

• CAN 2.0B controller with integrated transceiver

• Suitable for automotive applications
• Up to 1 Mb/s operation
• Up to 10 MHz SPI clock speed
• Standard DB9 connector for secure connection

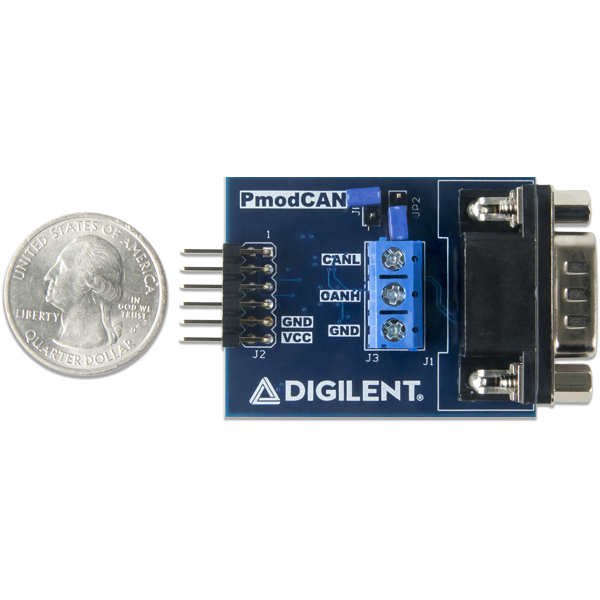

• Small PCB size for flexible designs 1.4" × 1.8" (3.6 cm × 4.6 cm)
• 12-pin Pmod connector with SPI interface
• Libraries and example code available in resource center

What's Included:

• Pmod CAN
• Custom antistatic Pmod packaging
