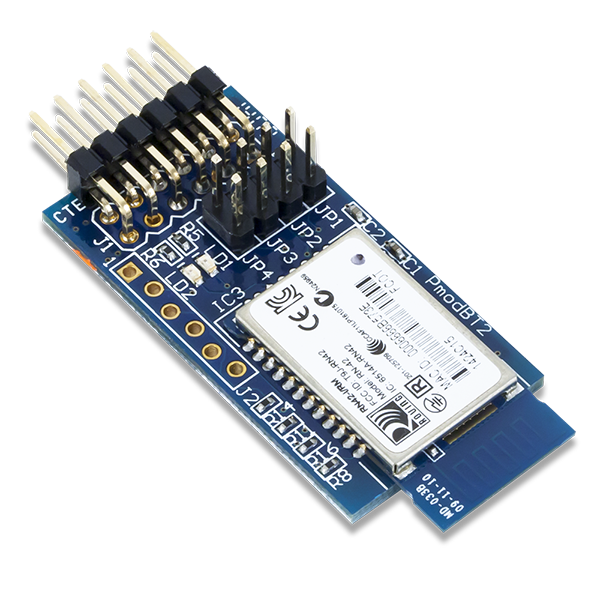

Pmod BT2: Bluetooth Interface

Description

The Pmod BT2 is a powerful peripheral module employing the Roving Networks^® RN-42 to create a fully integrated Bluetooth interface. Users can communicate with the chip via UART and can also use the secondary SPI header on the board for updating the RN-42 firmware if needed.

Note:

The Pmod BT2 is also featured in a fantastic product bundle, the Zybo Pmod Pack! This bundle was designed to expand project possibilities by utilizing a variety of peripheral modules perfectly suited for the Zybo Zynq-7000 FPGA.

Features:

• Bluetooth 2.1/2.0/1.2/1.0 compatible

• Add wireless capability with this low power, Class 2 Bluetooth radio

• Supports HID profile for making accessories such as pointing devices, etc.

• Secure communications, 128-bit encryption

• Six different modes

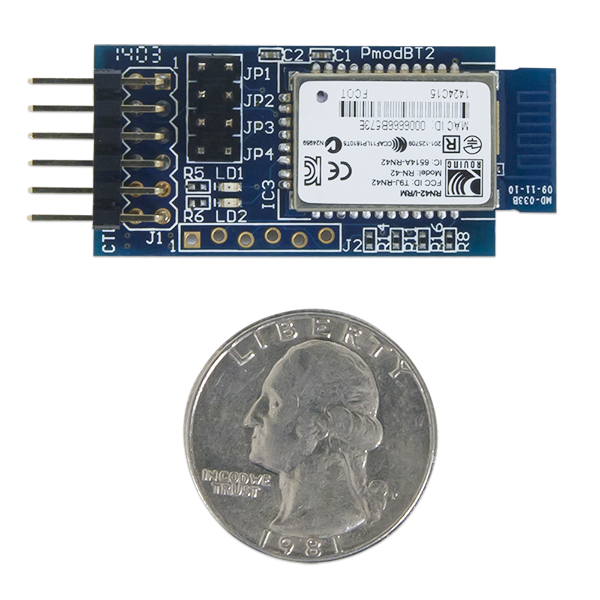

• Small PCB size for flexible designs 1.5“ × 0.8” (3.8 cm × 2.0 cm)

• 12-pin Pmod connector with UART interface

What's Included:

• Pmod BT2
• Custom antistatic Pmod packaging
