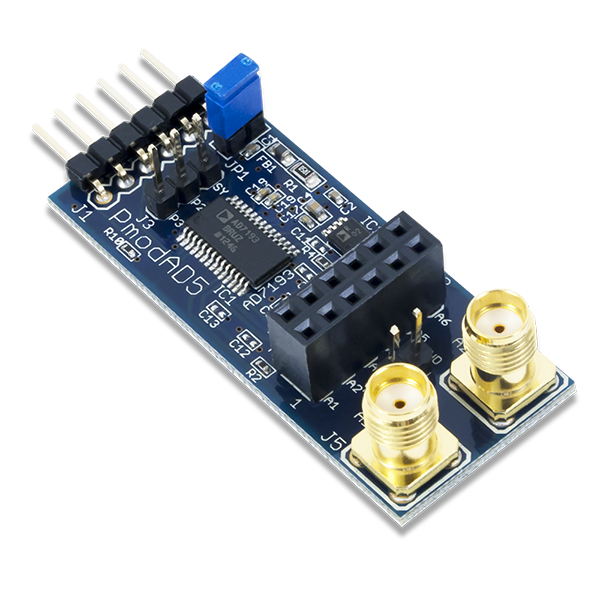

Pmod AD5: 4-channel 4.8 kHz 24-bit A/D Converter

Description

The Pmod AD5 is an analog-to-digital converter that utilizes a fourth order sigma-delta modulator, a programmable gain array, and on-chip digital filtering, all powered by the Analog Devices AD7193. With 24 bits of resolution on up to 8 different analog input channels, users may read the highly accurate voltage measurements with an rms noise as low as 11 nV through SPI.

Features:

• High precision 24-bit Sigma-Delta analog-to-digital converter

• 4 differential or 8 pseudo differential input channels

• Ultra-low noise

• Programmable gain (1 to 128)

• Flexible digital filter with fast settling option

• Two SMA connectors

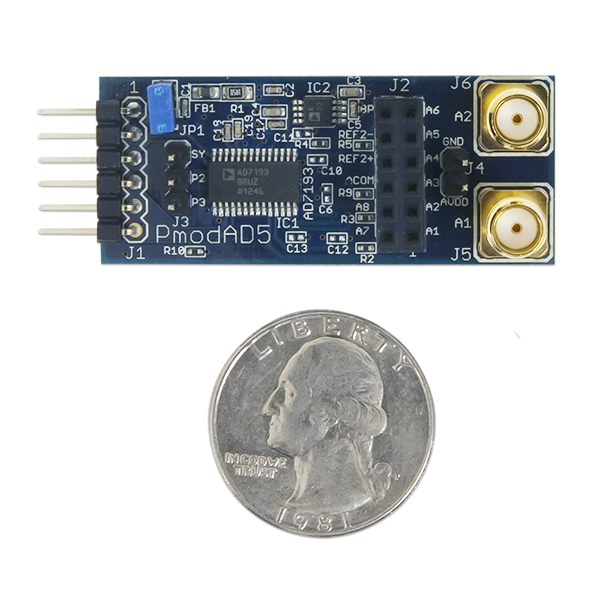

• Small PCB size for flexible designs 1.9“ × 0.8” (4.8 cm × 2.0 cm)

• 6-pin Pmod connector with SPI interface

• Follows Digilent Interface Specification Type 2

What's Included:

• Pmod AD5
• Custom antistatic Pmod packaging
