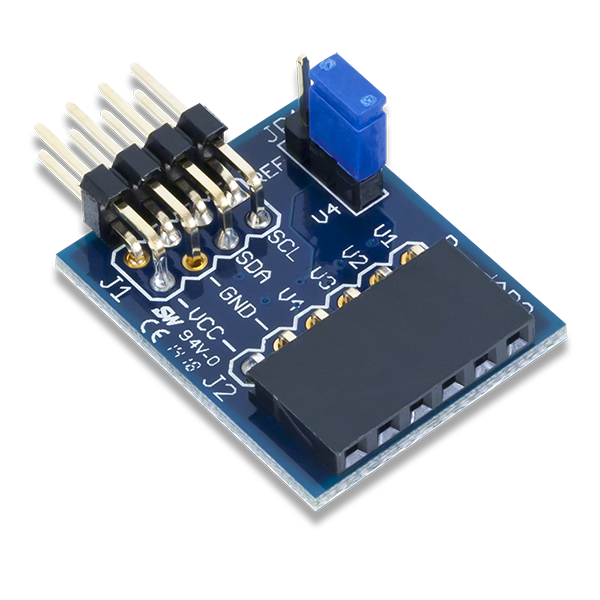

Pmod AD2: 4-channel 12-bit A/D Converter

Description

The Pmod AD2 is an analog-to-digital converter powered by the Analog Devices AD7991. Users may communicate with the board through I²C to configure up to 4 conversion channels at 12 bits of resolution.

Features:

• Up to four 12-bit analog-to-digital converter channels

• On-board 2.048 V voltage reference

• Jumper selectable reference input

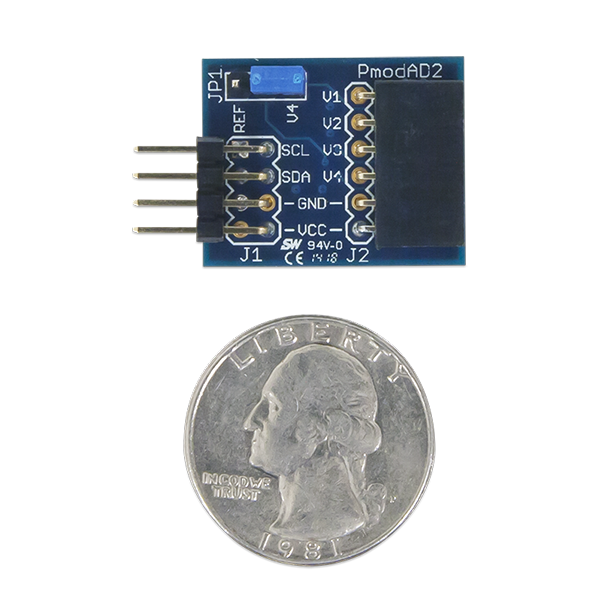

• Small PCB size for flexible designs 1.0 in × 0.8 in (2.5 cm × 2.0 cm)

• Follows Digilent Pmod Interface Specification 1.0.0

• Library and example code available in resource center

What's Included:

• Pmod AD2
• Custom antistatic Pmod packaging
