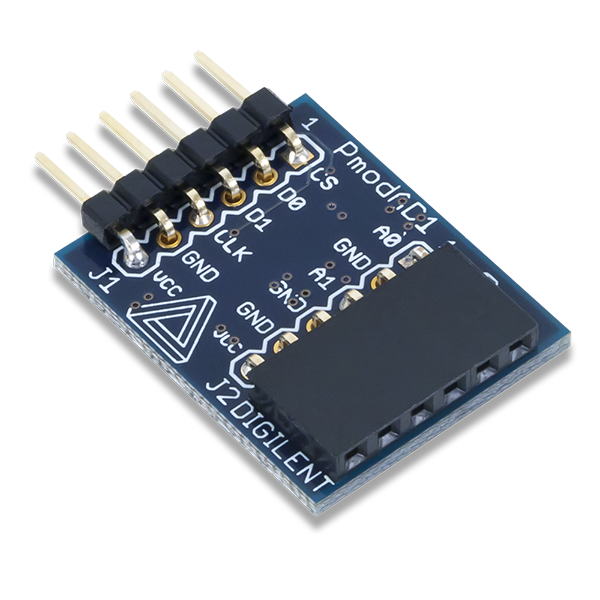

Pmod AD1: Two 12-bit A/D Inputs

Description

The Digilent Pmod AD1 is a two channel, 12-bit analog-to-digital converter that features Analog Devices AD7476A. With a sampling rate of up to 1 million samples per second, this Pmod is capable of excelling in even the most demanding audio applications.

Features:

• Two channel, 12-bit analog-to-digital converter

• Simultaneous A/D conversion at up to one MSa per channel

• Two 2-pole Sallen-Key anti-alias filters

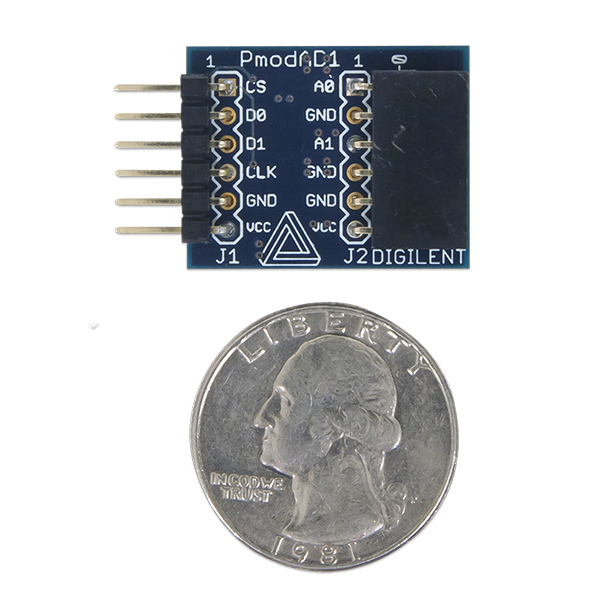

• Small PCB size for flexible designs 0.95 in × 0.8 in (2.4 cm × 2.0 cm)

• 6-pin Pmod connector with SPI interface

• Library and example code available in resource center

What's Included:

• Pmod AD1
• Custom antistatic Pmod packaging
