Pmod ACL: 3-axis Accelerometer

Description

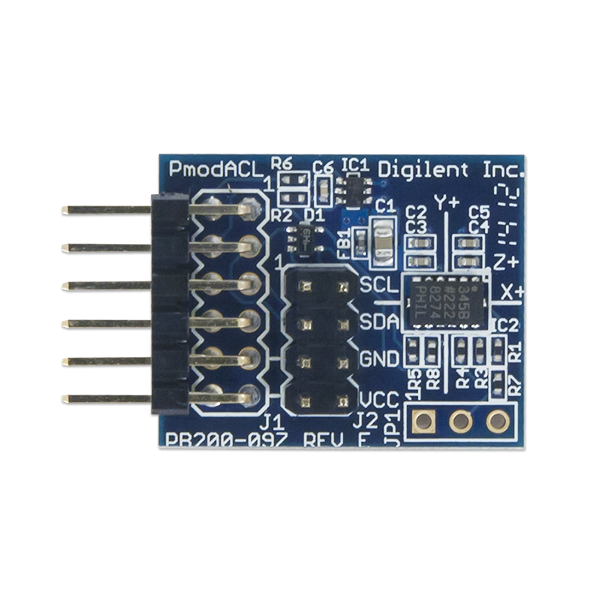

The Pmod ACL is a 3-axis digital accelerometer module that provides input to a system board. Communication via SPI or I²C with the on-board Analog Devices ADXL345 allows the user to access up to 13 bits of acceleration data, indicating the Pmod's angle of orientation.

Features:

• 3-axis, ±2/4/8/16g accelerometer

• User-selectable resolution

• Activity/inactivity monitoring

• Single/double-tap and free-fall detection

• Small PCB size for flexible designs 1.0 in × 0.8 in (2.5 cm × 2.0 cm)

• 12-pin Pmod connector with SPI interface and 2×4-pin I²C interface

• Follows Digilent Pmod Interface Specification Type 2A

• Library and example code available in resource center

What's Included:

• Pmod ACL
• Custom antistatic Pmod packaging
