Phidgets
PhidgetTemperatureSensor IR
SKU: Phidgets-1045_1B
₹ 8,059.00
Taxes included.
Shipping calculated at checkout.
Description

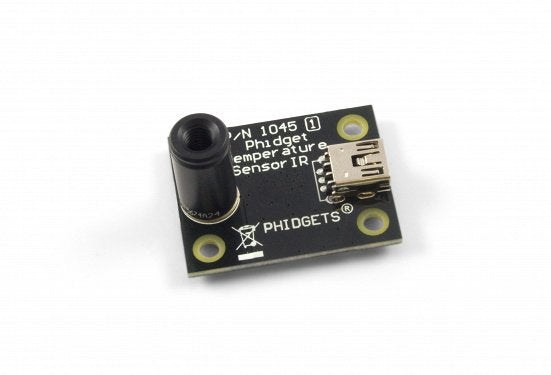

Measure the temperature of an object from a distance with this IR temperature sensor. Plugs directly into a USB port.

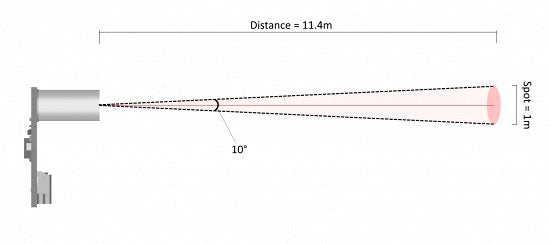

The 1045 is an intelligent non-contact temperature sensor with a 10° field of view and a USB interface for easy connection to your computer. It takes an average of the temperature of objects placed within its cone of detection.
The 1045 outputs a continuous data flow every 32ms with an active alarm running in the background.; the temperature output data for distant objects ranges from -70°C to 380°C.

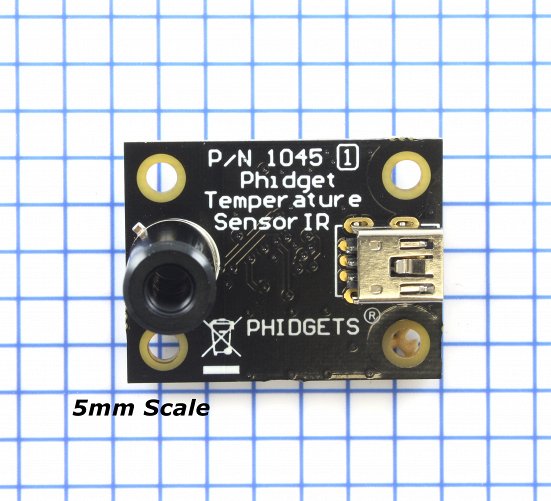

This particular revision of the 1045 has the circuitry placed on the reverse side of the board, to reduce measurement errors caused by self-heating.
Applications
- Sensing and measuring surface temperatures without surface contact
- Monitoring a system for over-temperature conditions
- Temperature sensing element for a building's air conditioner
- Human or animal presence detection
- Movement detection
- Body temperature measurement
Product Specifications
| Board | |
|---|---|
| Controlled By | USB (Mini-USB) |
| API Object Name | TemperatureSensor |
| Sensor Properties | |
| API Object Name | TemperatureSensor |
| Sensor Type | Temperature (Infrared) |
| Temperature Sensor | |
| Field of View | 10° |
| Temperature Error Typical (At 25°C) | ± 0.5 °C |
| Ambient Temperature Min | 0 °C |
| Ambient Temperature Max | 70 °C |
| Ambient Temperature Resolution | 0.02 °C |
| Ambient Temperature Error Max | ± 4 °C |
| Object Temperature Min | -70 °C |
| Object Temperature Max | 380 °C |
| Object Temperature Resolution | 0.02 °C |
| Object Temperature Error Max | ± 4 °C |
| Update Rate | 31.3 samples/s |
| Assumed Object Emissivity | 1 |
| Electrical Properties | |
| Current Consumption Max | 27 mA |
| USB Voltage Min | 4.8 V DC |
| USB Voltage Max | 5.3 V DC |
| USB Speed | Full Speed |
| Physical Properties | |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
