Phidgets
Phidgets Slider 60
SKU:
Phidgets-1112_1
₹ 1,269.00
Taxes included.
Shipping calculated at checkout.
Description

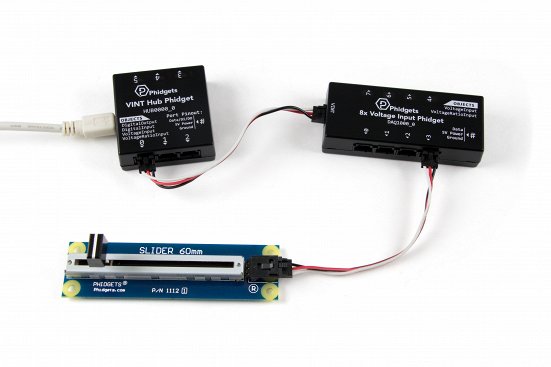

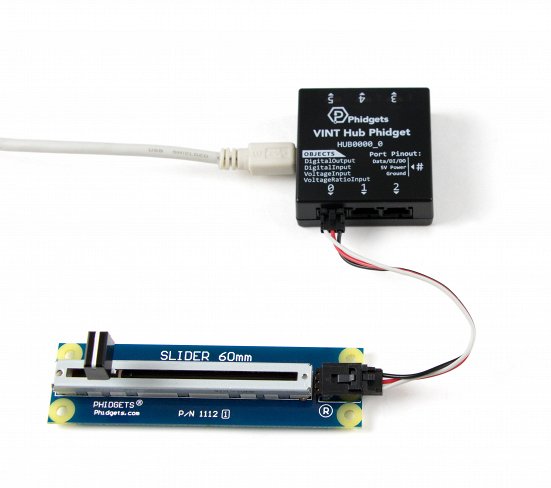

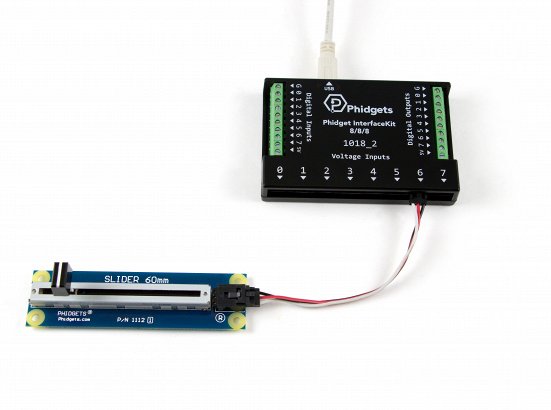

Ideal for user input, this slider has 60mm of travel and connects to an Analog Input or VINT Hub port.

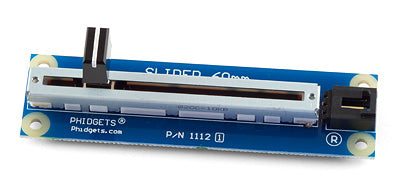

The Slider 60 is a linear potentiometer - the resistance varies linearly with the position of the slider. It outputs a voltage ratio between 0 and 1 that varies linearly over the 60mm of travel. The maximum resistance is 10K ohms.
The 1112 can be used as human input or as position feedback in a system.
Product Specifications
| Sensor Properties | |
|---|---|
| Sensor Type | Input (Slider) |
| Controlled By | VoltageRatio Input |
| Sensor Output Type | Ratiometric |
| Linear Travel | 60 mm |
| Electrical Properties | |
| Current Consumption Max | 150 μA |
| Output Impedance | 10 kΩ |
| Physical Properties | |
| Operating Temperature Min | -25 °C |
| Operating Temperature Max | 70 °C |
