Phidgets
Phidgets Magnetic Sensor
SKU:
Phidgets-1108_0
₹ 809.00
Taxes included.
Shipping calculated at checkout.
Description
You can measure magnetic fields or sense the proximity of a magnet with this hall-effect sensor.

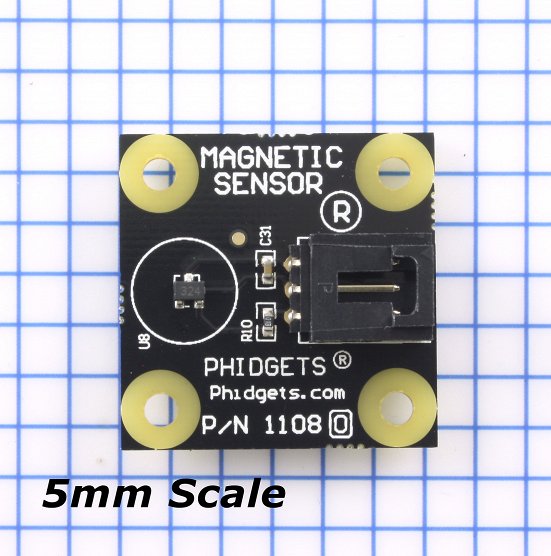

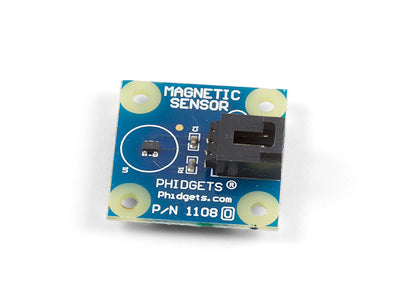

The 1108 is a Hall-effect sensor that provides a voltage output that is proportional to the applied magnetic field.
Product Specifications
| Sensor Properties | |
|---|---|
| Sensor Type | Magnetic Field |
| Controlled By | VoltageRatio Input |
| Sensor Output Type | Ratiometric |
| Magnetic Flux Min | -500 G |
| Magnetic Flux Max | 500 G |
| Measurement Error Max | ± 0.5 % |
| Magnetic Zero Balance Max | 15 G |
| Magnetic Resolution | 1 G |
| Electrical Properties | |
| Current Consumption Max | 2 mA |
| Output Impedance | 1 kΩ |
| Output Voltage Min | 200 mV DC |
| Output Voltage Max | 4.7 V DC |
| Supply Voltage Min | 4.5 V DC |
| Supply Voltage Max | 5.5 V DC |
| Physical Properties | |
| Operating Temperature Min | -20 °C |
| Operating Temperature Max | 85 °C |
| Neodymium Magnets | |
| Mangetic Field Strength | (@ 6.5 mm) 500 G |
| Length | 8.7 mm |
| Diameter | 5 mm |
